Product

  • Introduction

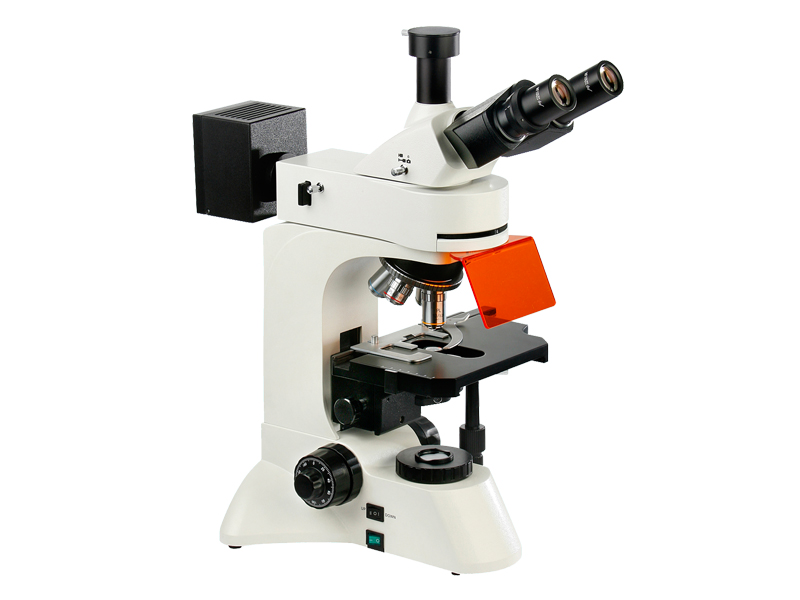

  •  L3201 LED Epi-fluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear picture and wide view field. The transmitted and epi-fluorescent illumination light source are high power & brightness LED, but power consumption is lower and use life longer, very good radiating heat effect. Safely and comfortably using the instrument, the cost of use and maintenance are more lower. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.







  • Standard Configuration
    Model
    L3201 LED
    Eyepiece
    Wide field  WF10X(Ф22mm)
    Objective
    Infinity plan achromatic objectives
    PL 4X/0.10  (Work distance)：19.8 mm
    PL 10X/0.25 (Work distance)：5.0 mm
    PLF L40X/0.85£¨spring£© (Work distance)：0.42 mm (No magnification spherochromatic aberration )
    PL 100X/1.25(Spring, oil) (Work distance)：0.36mm

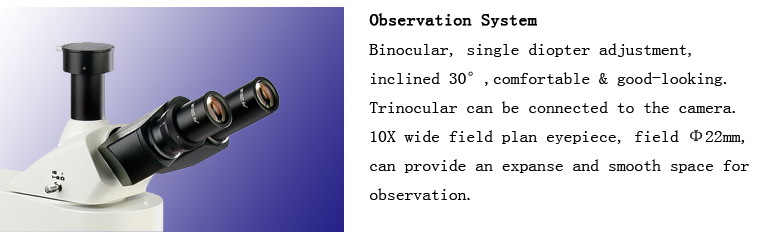

    Eyepieces tube
    Trinocular, Inclination of 30˚.

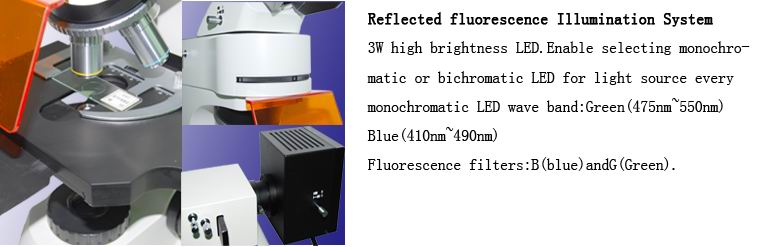

    Epi-fluorescent illumination system
    5W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source, every monochromatic LED wave band: Green (475nm~550nm) Blue( 410nm~490nm)
    Fluorescence filters: B(Blue) and G(Green).
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)

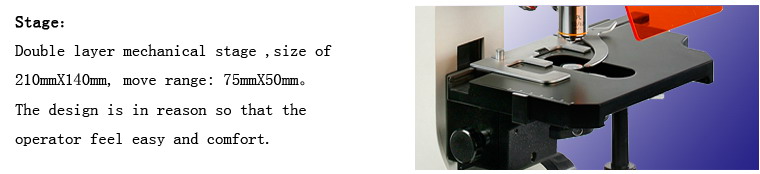

    Stage
    Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)

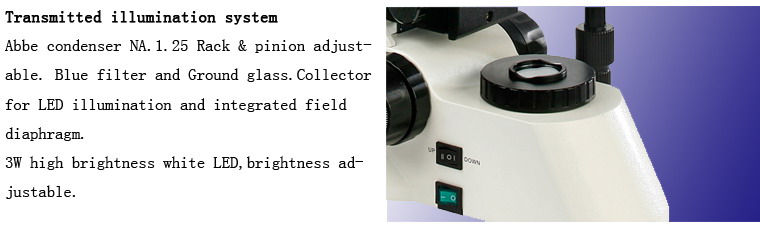

    Transmitted illumination
    system
    Abbe condenser  NA.1.25  Rack & pinion adjustable
    Blue filter and Ground glass
    Collector for LED illumination and integrated field diaphragm
    3W high brightness white LED, brightness adjustable.

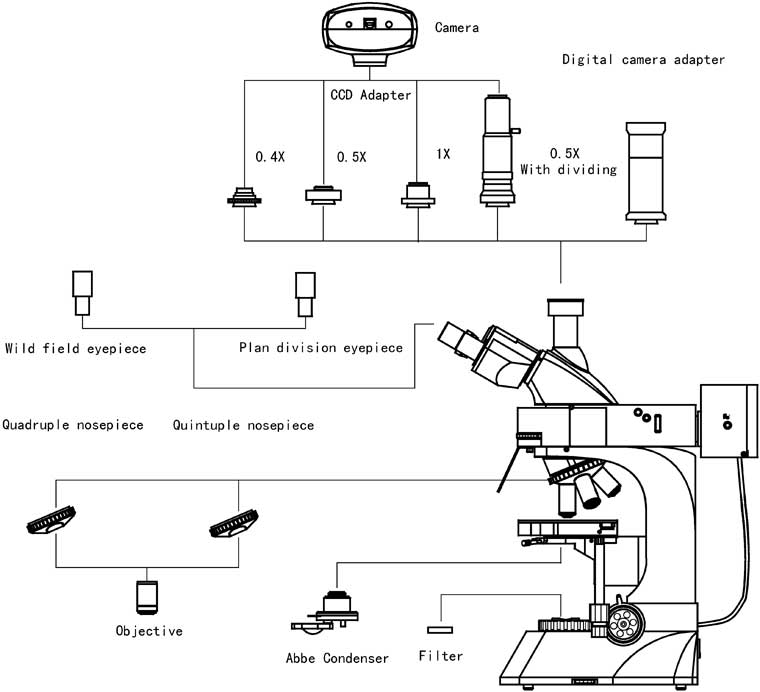

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Dividing eyepiece(field number:Ф22mm)    0.10mm/Div
    1122010
    Objective
    Infinity plan achromatic objective PL 60X/0.80(Work distance)：0.46 mm
    2060160
    Infinity plan achromatic fluorescent objective
    PL FL10X/0.35(Work distance)：2.37 mm
    2610110
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    032002
    Filter
    Green filter
    115002
    Yellow filter
    115003
    LED
    Violet(380nm~415nm)
    /
    Ultraviolet(320nm~380nm)
    /
    Fluorescent filters
    V(Violet)
    /
    UV(Ultraviolet)
    /

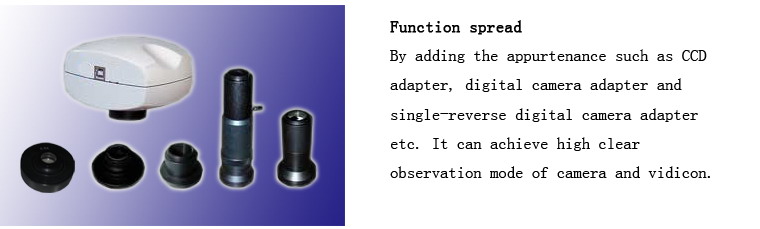

    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1  Video output(380/520 TV line) USB output (0.42 M pixel)
    800001
    DV-2  With USB output (1.3M,,3.0M 5.0M 10.0Mpixel)

    DV-3  With video output(380/520 TV line)
    800005
    Digital camera adapter
    CANON(EF)  NIKON( F)
    820001
