  • Introduction



  • XJL-201 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography, mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.
    Features
    ▲  With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
    ▲  With large move range mechanical stages, can move quickly and slowly.
    ▲  Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  6V 30W Halogen lamp, brightness control.
    ▲  Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.













  • Standard Configuration

    Model
    XJL-201
    XJL-201A
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
    Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
    Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
    Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80
    Eyepieces tube

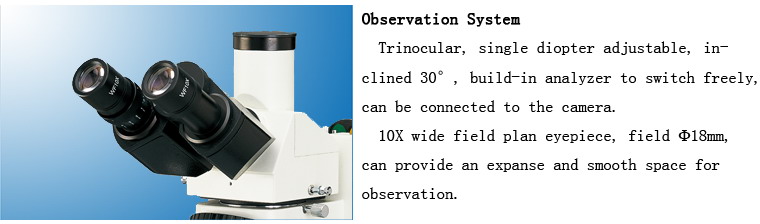

    Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
    Vertical illumination unit
    12V 30w, halogen lamp, adjustable brightness
    Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter
    Focus system
    Vertical adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing2μm.
    Nosepiece
    Quintuple(Frontward ball bearing inner locating)
    Stage
    Three layer mechanical
    Size:250mmX230mm,movingrange:154mmX154mm
    Three layer mechanical
    Size:280mmX270mm,movingrange:204mmX204mm


















    Optional accessories
    Name
    Sort/Technique parameter
     NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)

    Dividing  10X(¦µ18mm)   0.1mm/Div

    Objective
    Plan achromatic objectives with long working distance (no cover glass)
    PL L 50X/0.70

    Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring)

    Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring)

    Plan achromatic objectives (no cover glass)
    PL 100X/1.25  (Spring, oil)

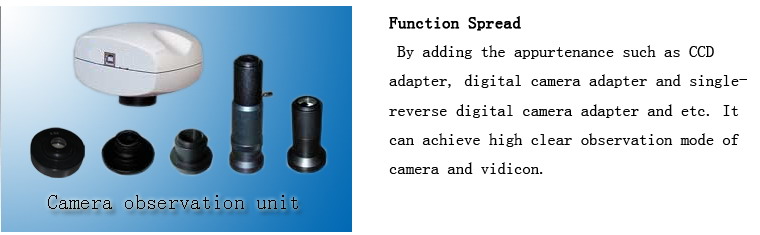

    CCD adapter
    0.4X

    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera
    DV-1 With USB & video output

    DV-2 With USB output

    DV-3 With video output

    Photo unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece

    4X Focusing photograph attachment

    MD Adapter

    PK Adapter

    Digital camera adapter
    CANON(A610,A620,A630,A640)
























  •



  •
