  • Introduction

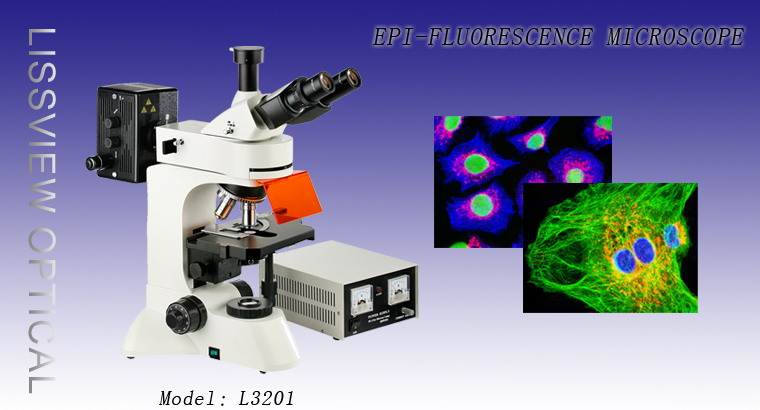

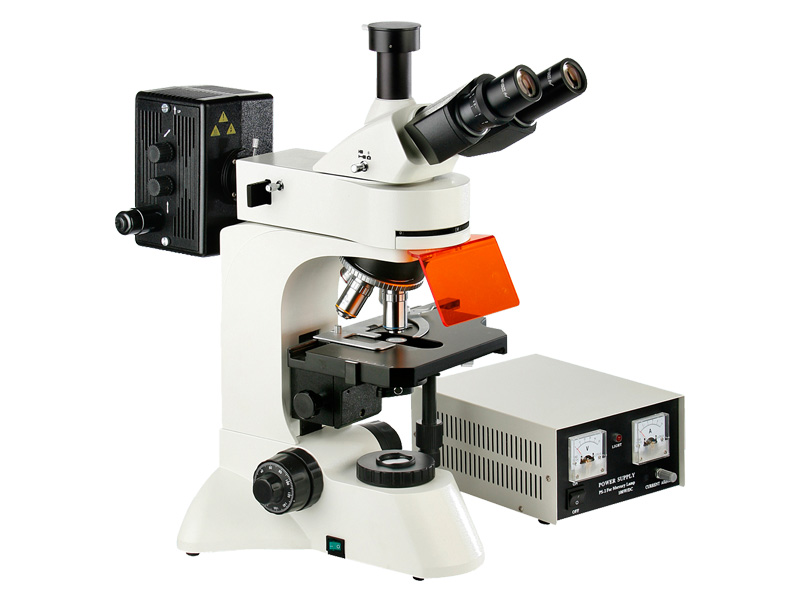

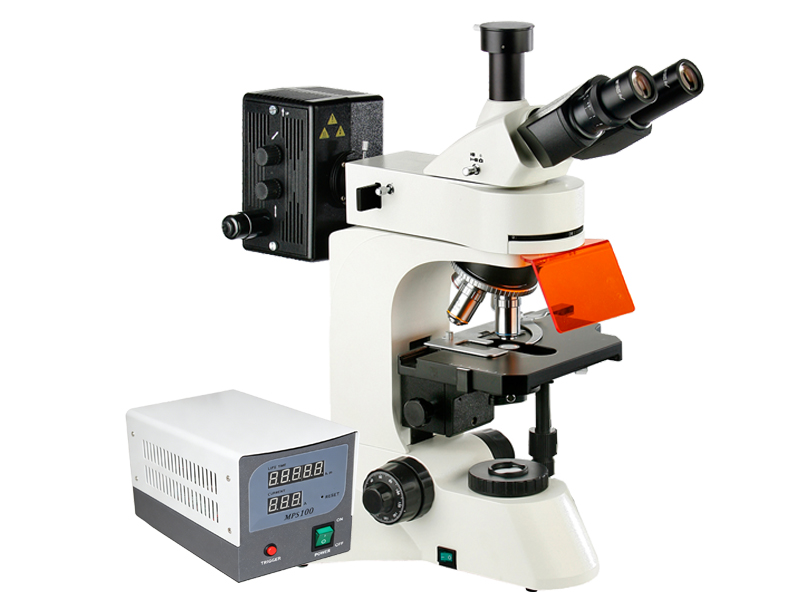

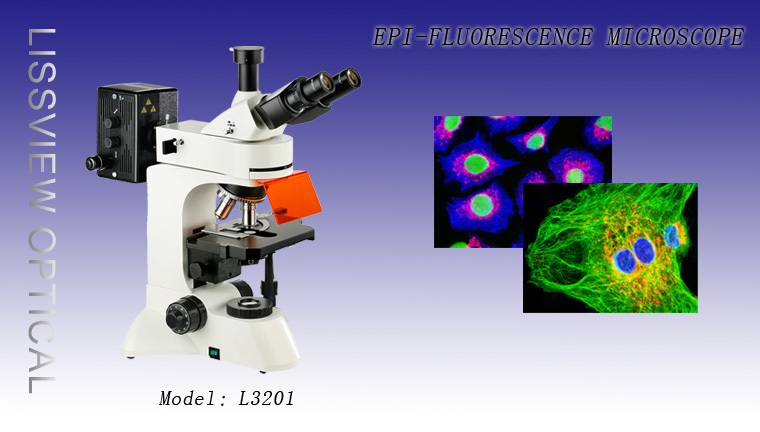

  • L3201 Epi-fluorescent microscope is used for fluorescence microscope and transmitted bright field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear and high contrast picture in your wide view field. The main body design meets with the ergonomics needs and makes you feel comfortable and relaxed in process of operation. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities,medical treatment, epidemic prevention etc.
    FeatFeatures
    ▲  Adopt infinity optical system and modularization function design.

    ▲  Equipped with infinity plan achromatic fluorescent objectives, enable obtain more clearer and brighter image.
    ▲  Wide-field plan eyepieces: field number Ф22mm.
    ▲  Coaxial coarse/fine focus system, with tension adjustable and limit stopper , minimum division of fine focusing: 2μm
    ▲  Transmitted illumination system: Integrated field diaphragm and 12V30W halogen lamp, adding radiator and brightness control.

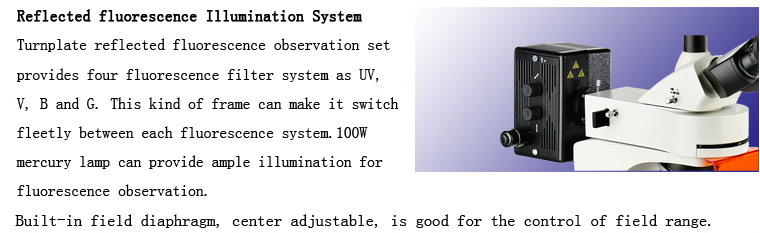

    ▲  Epi-illumination system: 100W/DC mercury lamp. The voltage of power supply is 220V or 110V.

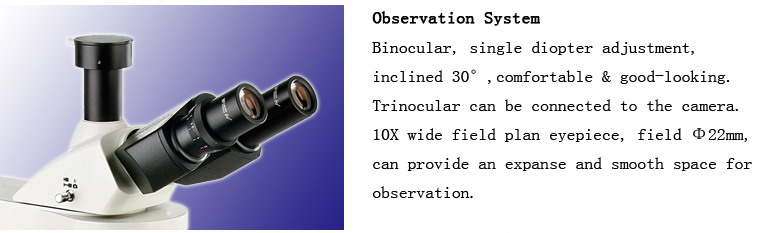

    ▲  Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography






  • Standard Configuration
    Model
    L3201
    Eyepiece
    Wide field  WF10X(¦µ22mm)
    Objective
    Infinity plan achromatic objectives
    PL 4X/0.10 (Work distance)：19.8 mm
    PL 10X/0.25 (Work distance)：5.0 mm
    PLF L40X/0.85£¨spring£©(Work distance)：0.42mm(No magnification spherochromatic aberration )
    PL 100X/1.25(Spring, oil) (Work distance)：0.36mm
    Eyepieces tube
    Trinocular, Inclination of 30˚.
    Epi-fluorescent illumination system
    Power supply unit, 110V or 220V can be selected.
    Mercury lamp is 100W/DC
    Turnplate Epi-fluorescence illuminator (UV.V.B.G filters system)
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
    Transmitted illumination
    system
    Abbe condenser  NA.1.25  Rack & pinion adjustable
    Blue filter and Ground glass
    Collector for halogen lamp illumination and integrated field diaphragm
    12V 30W halogen lamp, adjustable brightness

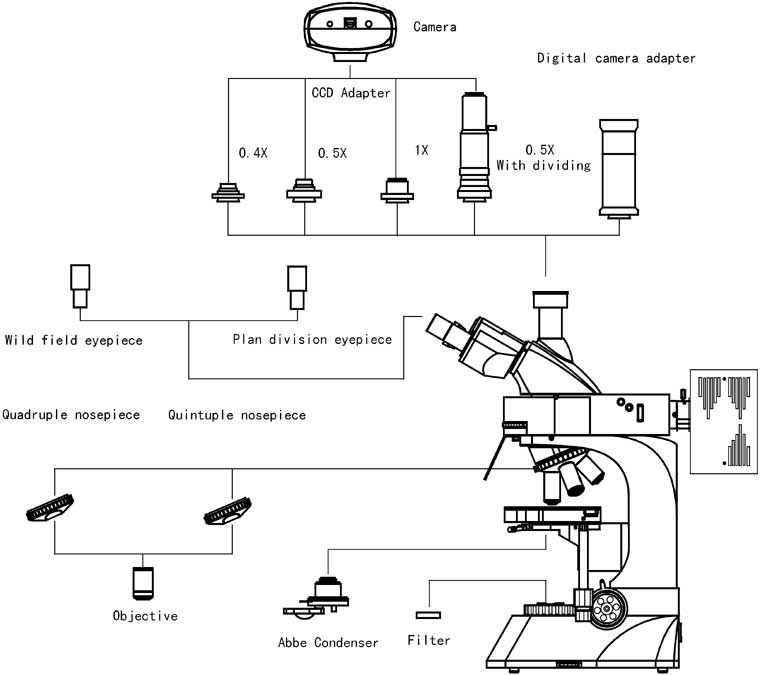

    Optional accessories

    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Dividing eyepiece(field number:¦µ22mm)    0.10mm/Div
    1122010
    Objective
    Infinity plan achromatic objective PL 60X/0.80(Work distance)：0.46 mm
    2060160
    Infinity plan achromatic fluorescent objective
    PL FL10X/0.35(Work distance)：2.37 mm
    2610110
    Filter
    Green filter
    115002
    Yellow filter
    115003

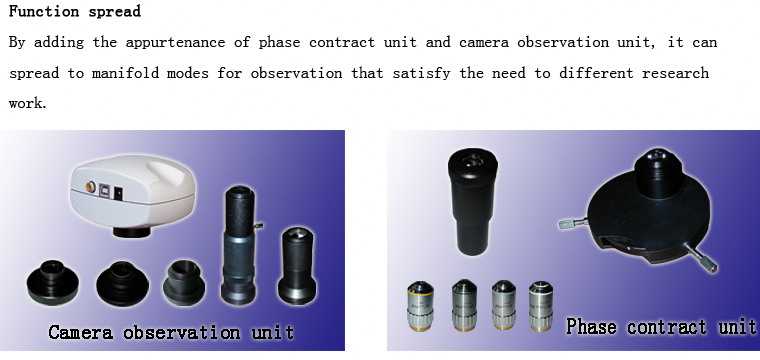

    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1 Video output(380/520 TV line) USB output(0.42 M pixel)
    800001
    DV-2 With USB output (1.3M,2.0M,3.0M pixel)
    800003
    DV-3 With video output(380/520 TV line)
    800005
    Digital camera adapter
    CANON(EF)  NIKON( F)
    820001
