  • Introduction

  • L2080 video biological microscopes are equipped with plan achromatic objectives, wide field eyepieces and video trinocular. It provide clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

    Features
    ▲  With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear

    ▲  Built-in color CCD sensor and video output

    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

    ▲  Using Kohler illumination model, the illumination is 6V 20W halogen lamp with brightness control.

  • Standard configuration

    Model
    L2080
    Eyepiece
    WF10X(¦µ20mm)
    Objective
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 10X/0.25
    Plan achromatic PL 40X/0.65(Spring)
    Plan achromatic PL 100X/1.25(Spring, oil)
    Video trinocular
    Built-in clear color 1/3”CCD sensor, horizontal resolution:520TV lines
    White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional). Power supply adapter:12V DC
    Focus system
    Coaxial coarse/fine focus, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical ( Size:160mmX140mm, Move range: 75mmX50mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    With field diagram for halogen lamp
    Light source
    6V 20W halogen lamp with brightness control
    Attachment
    Video cable, length: 1.8M

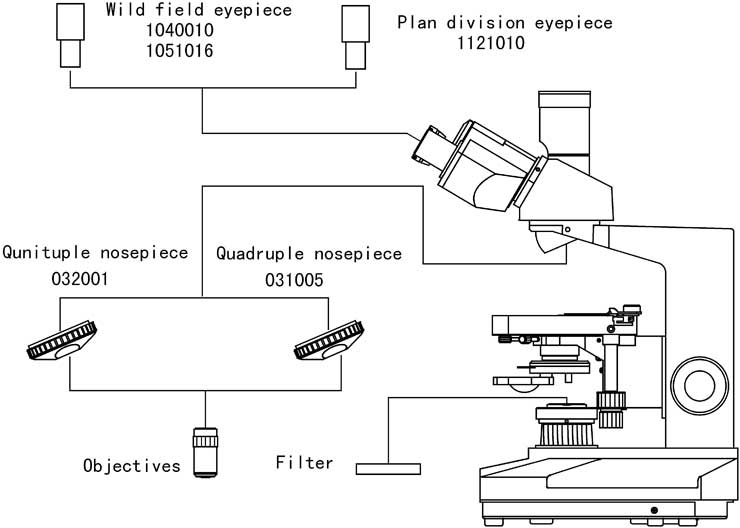

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(¦µ11mm)
    1051016
    Dividing   10X(¦µ20mm)  0.1mm/Div
    1121010
    Objective
    Plan achromatic   PL 20X/0.40
    2040120
    Nosepiece
    Quintuple (Backward ball bearing inner locating)
    032001
    Filter
    Green filter
    115002
    Yellow filter
    115003









  •
