  • Introduction


  • XPL-1500 series transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.
    Features
    ▲  Transmitted, Reflected, transmitted/reflected illumination can be choosn
    ▲  Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
    ▲  Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    ▲  Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener£¬Stage vertical effective movement up to     30mm










  • Standard Configuration

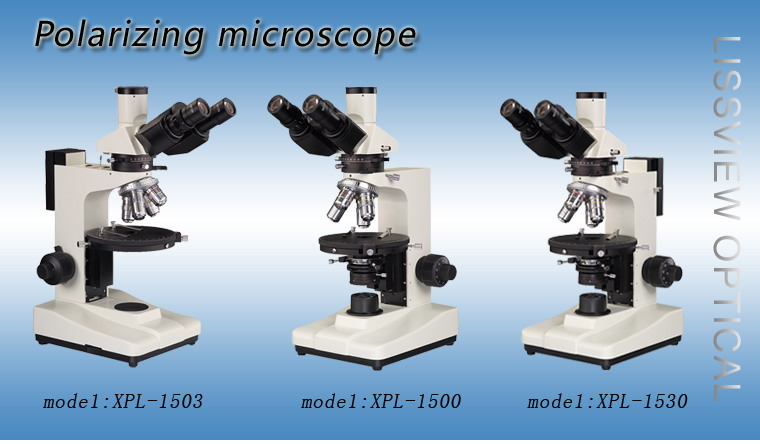

    Model

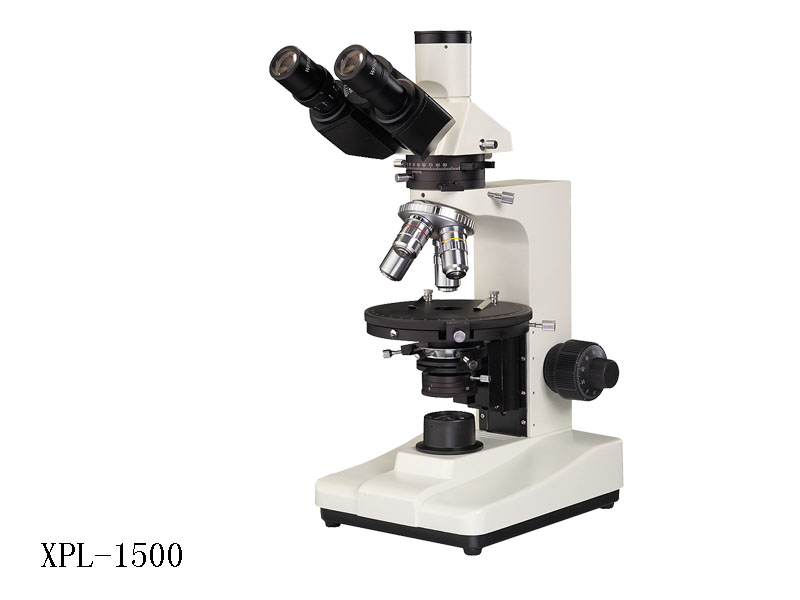

    XPL-1500 (Transmitted illumination)

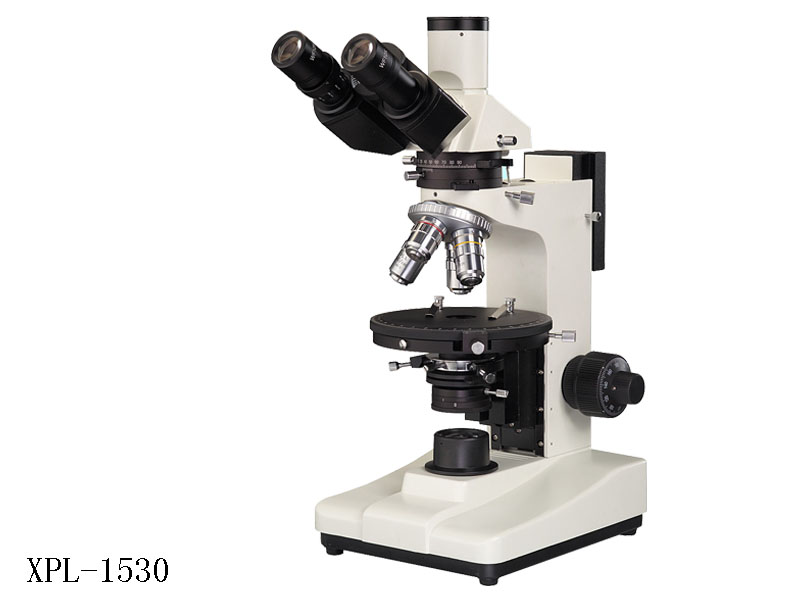

    XPL-1530 (Transmitted & reflected illumination)

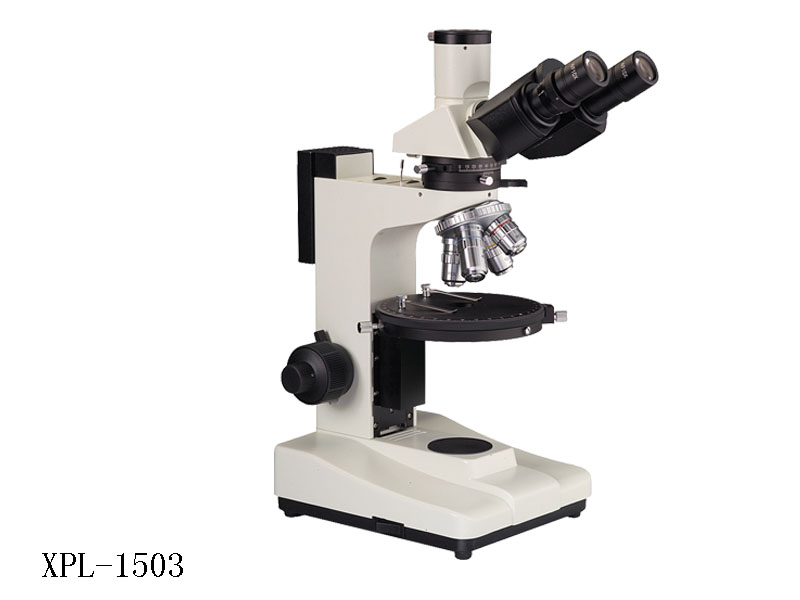

    XPL-1503 (Reflected illumination)
    Eyepiece
    Wide field  WF10X (Φ18mm)
    Division eyepiece  10X (Φ18mm)  0.10mm/div

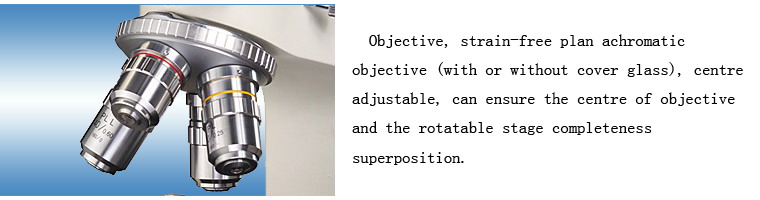

    Objective (center adjustable)
    Strain-free plan achromatic objective
    (cover glass:0.17mm) PL 4X/0.10
    Strain-free plan achromatic objective (no cover glass) PL 5X/0.12
    Strain-free plan achromatic objective
    (cover glass:0.17mm)PL 10X/0.25
    Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25
    Strain-free plan achromatic objective(cover glass:0.17mm) PL 40X/0.65 (spring)
    Strain-free plan achromatic objective (no cover glass)
    PL L40X/0.60 (spring)
    Strain-free plan achromatic objective(cover glass:0.17mm) PL 60X/0.85 (spring)
    Strain-free plan achromatic objective (no cover glass)
    PL L 60X/0.75 (spring)

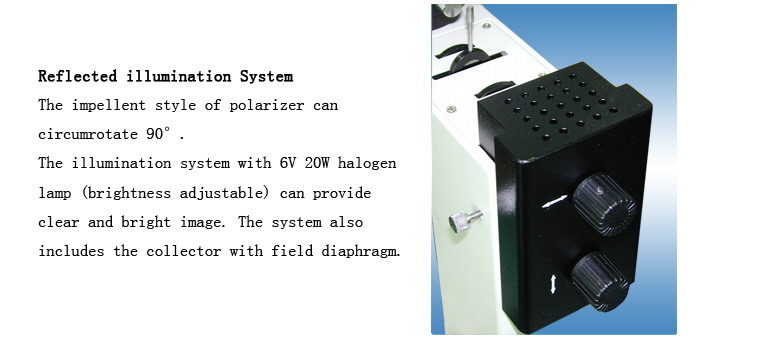

    Reflected illumination
    Polarizer

    Rotatable
    Illumination
    6V 20w, halogen lamp, adjustable brightness

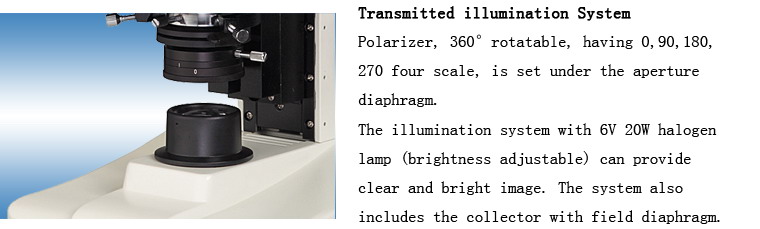

    Transmitted illumination
    Polarizer
    360°rotatable, have 0,90,180,270 four scale

    Collector
    For halogen lamp illumination
    Illumination
    6V 20w, halogen lamp, adjustable brightness
    Abbe condenser
    N.A. 1.25  Rack & pinion adjustable

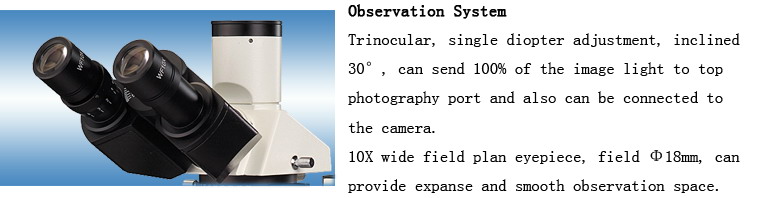

    Eyepieces tube
    Trinocular, Inclination of 30˚, can send 100% of the image light to top photography port

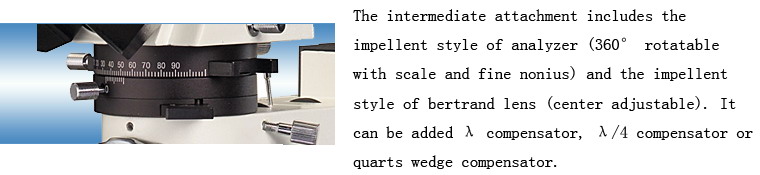

    Intermediate attachment
    Built-in analyzer, can switch to normal observe or polarizing observe freely ,90° rotatable with scale, minimum retardation resolution 12'
    Bertrand lens , impellent style , center adjustable
    ¦Ë compensator
    ¦Ë/4 compensator
    Quarts wedge compensator
    Nosepiece
    Quadruple (Frontward ball bearing inner locating)
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm

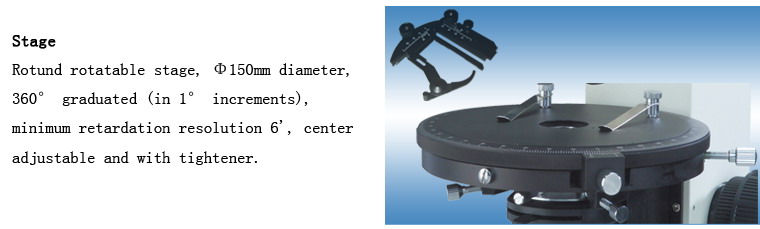

    Stage
    Rotatable stage, Diameter ¦µ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener

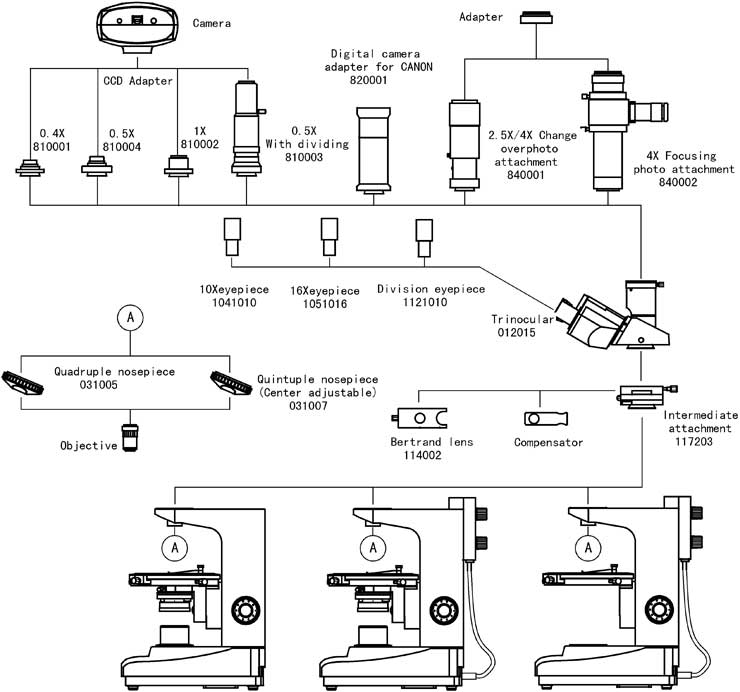

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)
    1051016
    Objective
    (center adjustable)
    Strain-free plan achromatic objective(cover glass:0.17mm) PL 20X/0.40
    2810320
    Strain-free plan achromatic objective(cover glass:0.17mm) PL 100X/1.25 (Oil ,spring)
    2810311
    Strain-free plan achromatic objective(no cover glass) PL L 20X/0.40
    2850320
    Strain-free plan achromatic objective(no cover glass) PL L 50X/0.70
    2850350
    Strain-free plan achromatic objective(no cover glass) PL L 80X/0.80
    2850380
    Strain-free plan achromatic objective (Dry) (no cover glass) PL L 100X/0.85 (Spring)
    2850311
    Nosepiece
    Quadruple (Frontward ball bearing inner locating)£¬adjust the center of objective
    031007
    Slide moving holder
    Moving range: 30mmX25mm
    116202

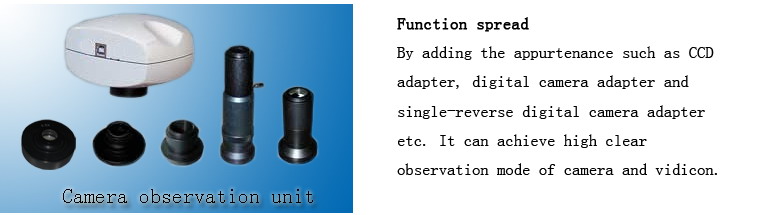

    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1 With USB & video output
    800001
    DV-2 With USB output
    800003
    DV-3 With video output
    800005
    Photo unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004
    Digital camera adapter
    CANON (A610,A620,A630,A640)



  •
