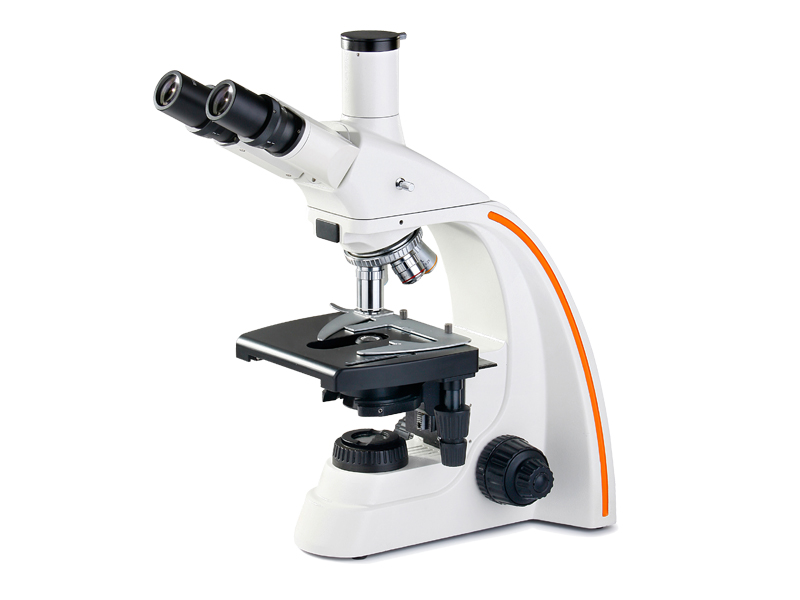

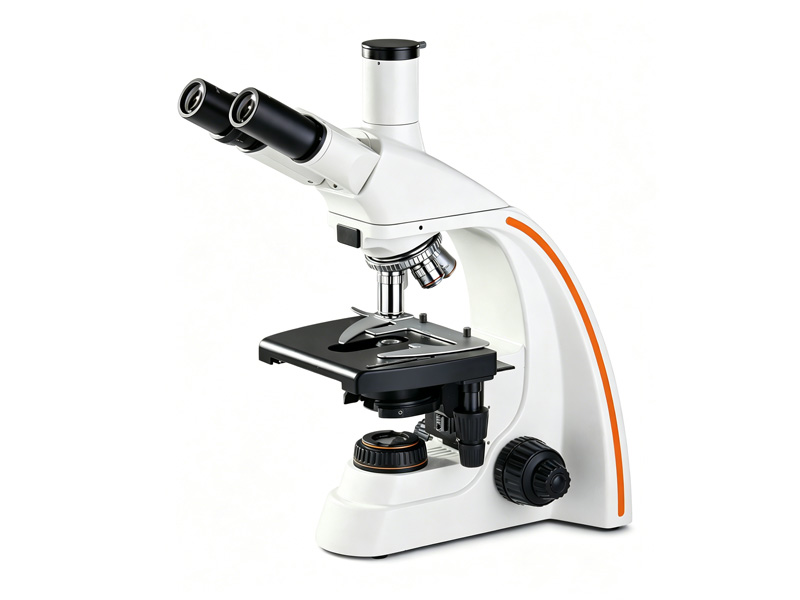

• Hits: Loading   Updated: 2018-02-06Introduction



  • Standard Configuration

    Eyepiece
    Wide field  WF10X(Ф22mm)
    Objective
    Infinity plan achromatic objective
    PL 4X/0.10
    PL 10X/0.25
    PL 40X/0.65 (Spring)
    PL 100X/1.25 (Spring, oil)
    Eyepieces tube
    Trinocular, Inclination of 30˚.
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
    Nosepiece
    Quardruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:180mmX150mm,movingrange:75mmX50mm)
    Transmitted illumination
    system
    Abbe condenser  NA.1.25  Rack & pinion adjustable
     Blue filter and Ground glass
    3W LED,brightness adjustable

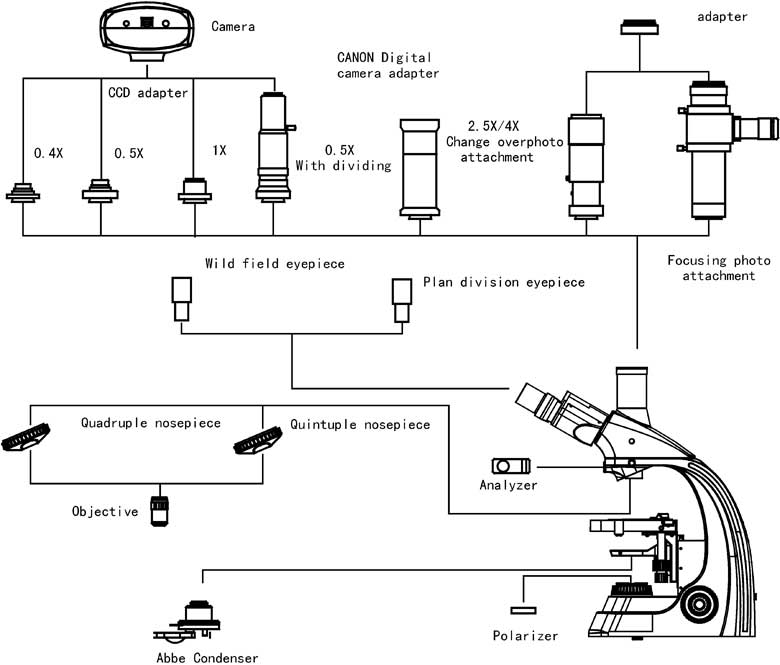

    Optional accessories
    Eyepiece
    Dividing eyepiece(field number:Ф22mm)    0.10mm/Div

    Objective
    Infinity plan achromatic objective

    PL 20X/0.40 (Work distance):8.8 mm

    PL 60X/0.85 (Work distance):0.25mm

    Phase contrast unit
    Eyepiece
    Centering telescope

    Objectives
    Infinity phase contrast plan achromatic 10X/0.25 PHP

    Infinity phase contrast plan achromatic 20X/0.40 PHP

    Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)

    Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

    Sliding phase contrast

    Filter
    Green filter

    Yellow filter

    CCD adapter
    0.4X

    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera
    DV-130/200/300/500/900 USB output

    DV-1A/DV-1B Video output

    Digital camera adapter
    CANON(EF)  NIKON( F)

    Facility polarize
    Polarizer
    360° rotatable stage

    Analyzer
    Sliding type

    Illumination system
    6V 30W halogen lamp illumination


  •

  •
