  • Introduction

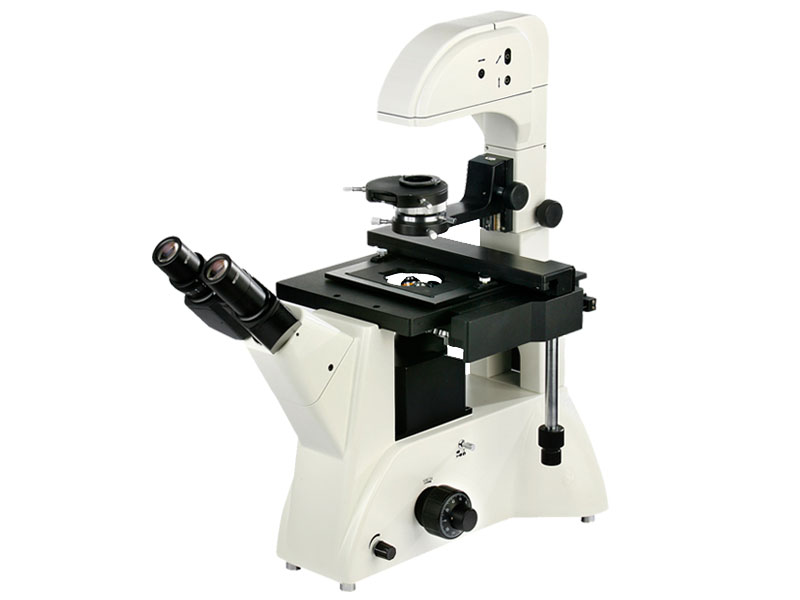

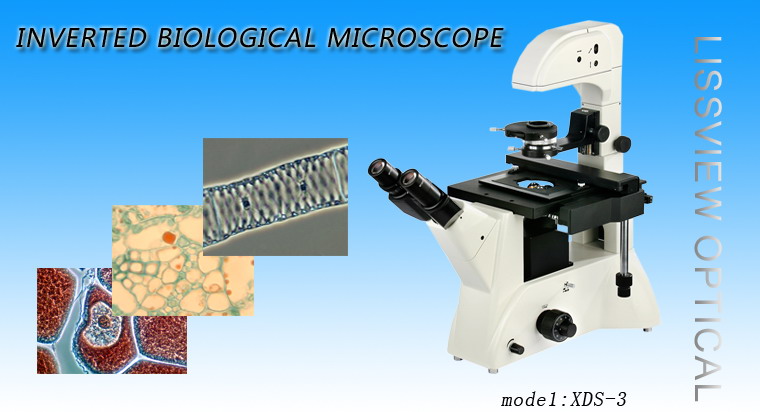

  • XDS-3 Iverted biological microscope is equipped excellent UIS optical system including long working distance plan achromatic objective and wide field plan eyepieces. Compact and steady main fram body is embodiment for the shock resistance. The enable turning out or into condenser system is suited for observation in a high culture dish. The ideal ergonomic desigm is adopted in ths unit and have easier operation and wider space. This is ideal optical instrument for micro observation in celltissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue. It can be used in scientific research, universities, medical treatment, epidemic prevention, agriculture etc.















  •  Standard configuration
    Specification
    Eyepiece
    Wide field WF10X(field number:Φ22mm)
    Centering telescope
    Infinity and long working distance plan achromatic objective
    Objective
    PLL 10X0.25 Work distance：4.3 mm£¬Cover glass thickness：1.2mm.
    PLL 20X0.40 Work distance：8.0 mm£¬Cover glass thickness：1.2mm.
    PLL 40X0.60  Work distance：3.5 mm£¬Cover glass thickness:1.2mm.

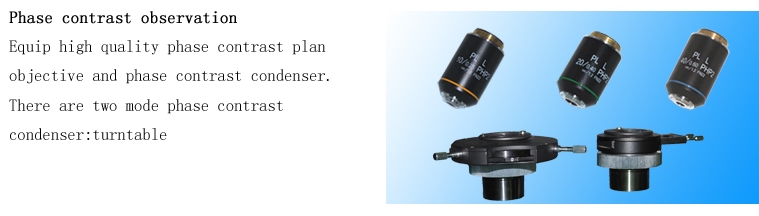

    Phase Contrast Objective
    PLL 10X0.25 PHP2 Work distance：4.3 mm£¬Cover glass thickness：1.2mm.

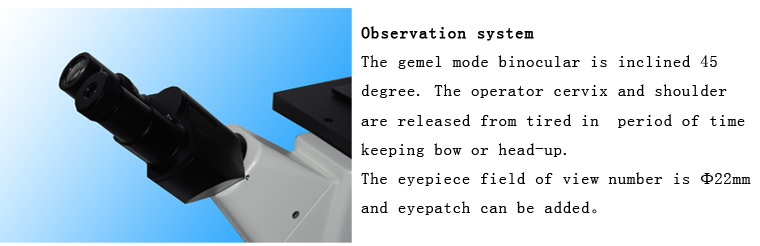

    Eyepiece tube
    Inclination angle is 45˚ and interpupillary distance is 53~75mm.
    Focus system
    Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm.
    Nosepiece
    Quintuple nosepiece
    Stage


    Fixed stage overall size is 227mmX208mm

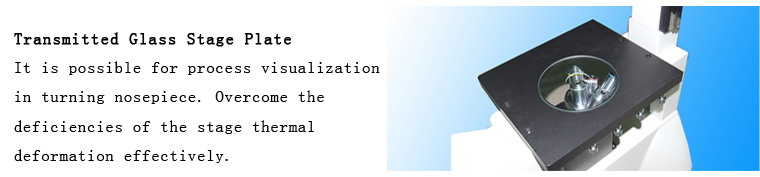

    Glass rotundity stage overall size is Ф118mm

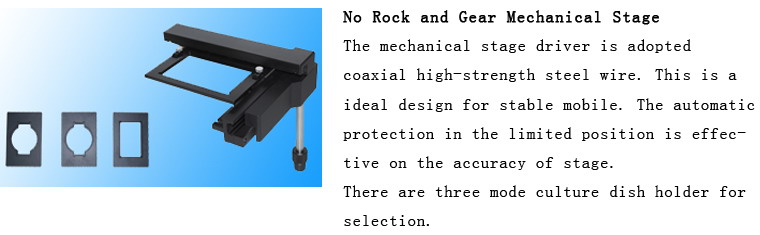

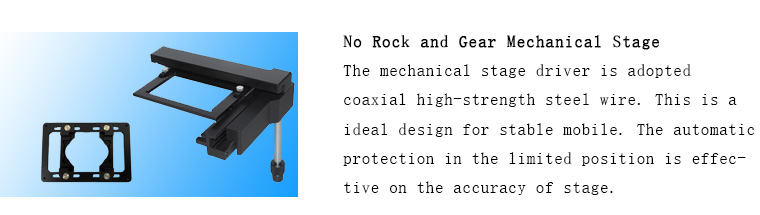

    Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)
    Culture dish holder 1
    Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф90mm
    Culture dish holder 2
    Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
    Culture dish holder 3
    Inside locating slot size:：57mm (W)X82mm (L)，optional with a circular culture dish Φ60mm
     culture dish holder 4  inside locating slot size:29mm(W)X77.5mm(L),optional with a circular culture dish Φ35mm

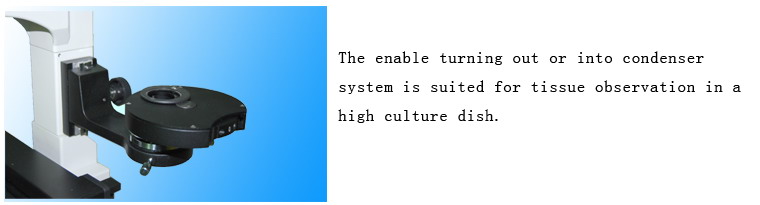

    Condenser system
    Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit

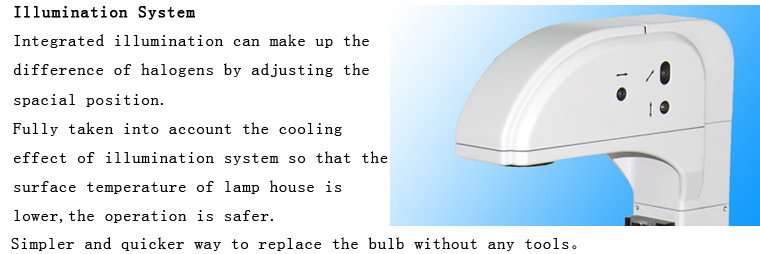

    Illumination system
    12V30W halogen, brightness enable control
    Filter
    Frosted glass and blue , green filter

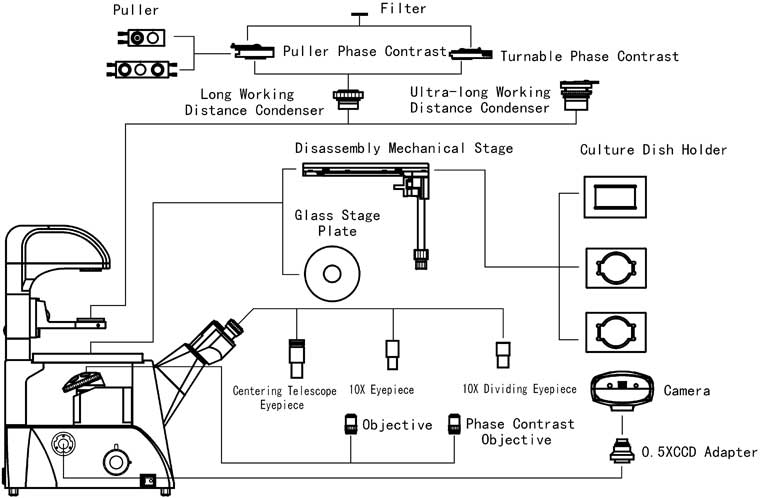

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    eyepiece
    Dividing eyepiece(field number:¦µ22mm)    0.10mm/Div
    1122010
    Phase Contrast Objective
    PL L20X/0.40 PHP2 Work distance：8.0 mm
    2490120
    PL L40X/0.60 PHP2 Work distance：3.5 mm
    2490140
    Nosepiece
    Hexad nosepiece

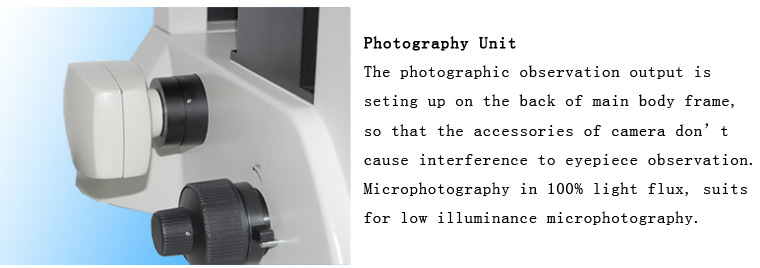

    CCD Adapter
    0.5X
    810004
    1X
    810002
    Camera
    DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©
    800001
    DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£©
    800003
    DV-3 With video output£¨380/520 TV line£©
    800005
    Digital camera adapter
    CANON(A570,A610,A620,A630,A640,A650,EF)  NIKON( F)
    820001
