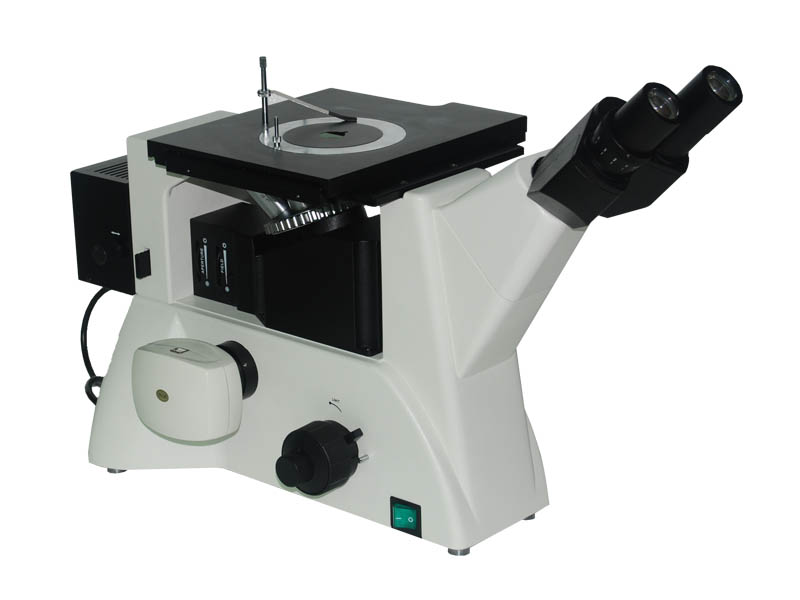

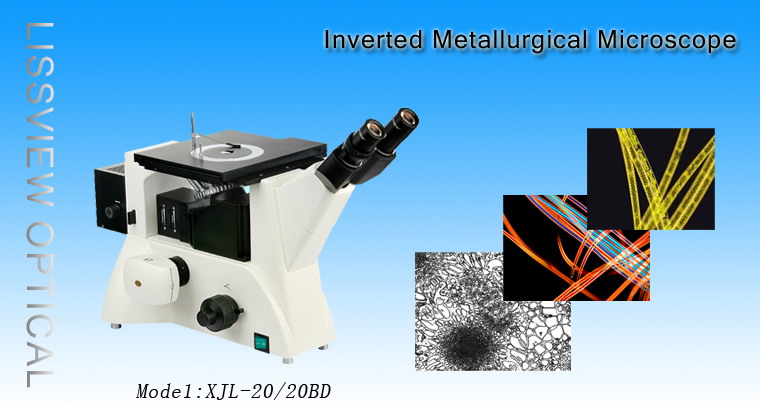

  • XJL-20/20BD Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.







  • Specification
    Eyepiece
    Wide field WF10X(field number:Φ22mm)
    Objective
    XJL-20
    Equipped with bright field objectives
    PL L10X/0.25  (Work distance)：5 mm
    PL L20X/0.40  (Work distance)：8.80 mm
    PL L50X/0.70  (Work distance)：3.68 mm
    PL L100X/0.85（Dry）  (Work distance)：0.40 mm
    XJL-20BD
    Equipped with bright & dark field objectives
    PL L5X/0.12 BD  (Work distance)：8.05mm
    PL L10X/0.25 BD  (Work distance)：7.86 mm
    PL L20X/0.40 BD (Work distance)：7.23mm
    PL L50X/0.70 BD  (Work distance)：1.75mm
    Eyepiece tube

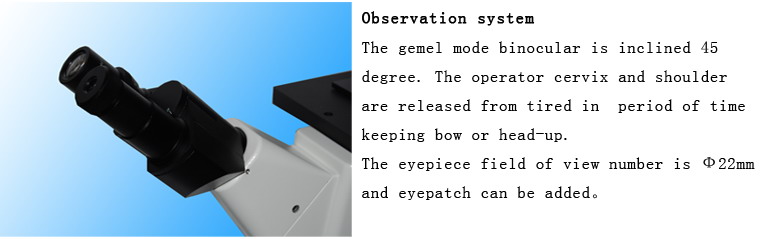

    Inclination angle is 45˚ and interpupillary distance is 53~75mm.
    Focus system
    Coaxial coarse/fine focus, with tension adjustable，minimum division of fine focusing is 2μm.
    Nosepiece
    Quintuple (Backward ball bearing inner locating)
    Stage

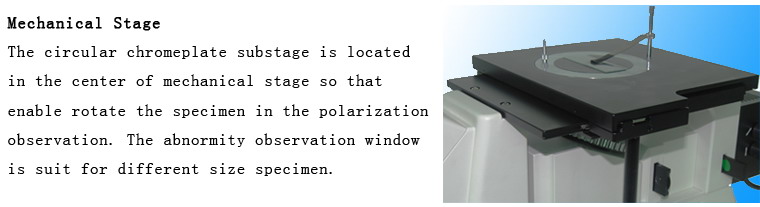

    Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm.
    Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф20mm.
    Illumination system
    12V30W halogen and brightness enable control., use in XJL-20
    12V50W halogen and brightness enable control., use in XJL-20BD

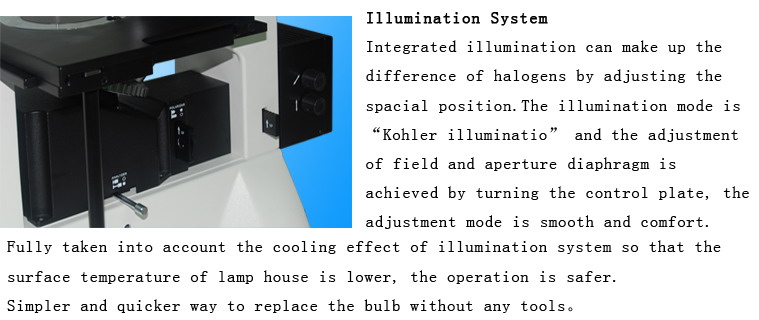

    Integrated field diaphragm , aperture diaphragm and puller type polarizer.
    Equipped with frosted glass and yellow ,green and blue filters

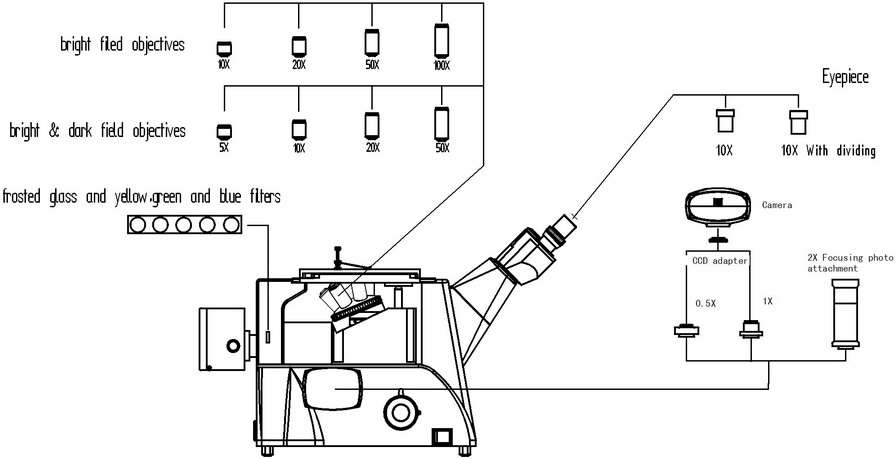

    Optional accessories

    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Dividing eyepiece(Φ22mm)

    Objective
    PL L5X/0.12  (Work distance)：26.1 mm
    Equipped with bright field objectives

    PL L40X/0.60  (Work distance)：3.98 mm

    PL L60X/0.75  (Work distance)：2.03mm

    PL L80X/0.80  (Work distance)：1.25 mm

    PL L40X/0.60 BD  (Work distance)：3.00 mm
    Equipped with bright & dark field objectives

    PL L60X/0.7 BD  (Work distance)：1.65mm

    PL L80X/0.80 BD   (Work distance)：0.80mm

    PL L100X/0.85 BD  (Work distance)：0.4 mm

    CCD Adapter
    0.5X

    1X

    0.5X with dividing 0.1mm/Div

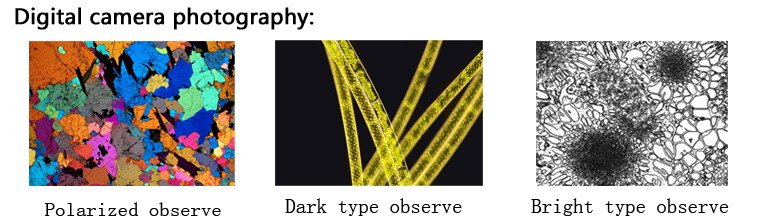

    Camera
    DV-1 Video output 380/520 TV line USB output 0.42 M pixel

    DV-2 With USB output 1.3M,2.0M,3.0M pixel

    DV-3 With video output 380/520 TV line

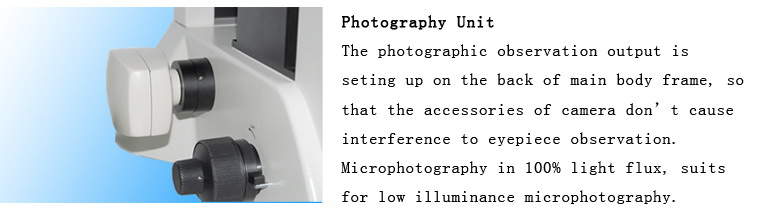

    Digital camera adapter
    CANON(EF)  NIKON( F)
