Product

  • Introduction

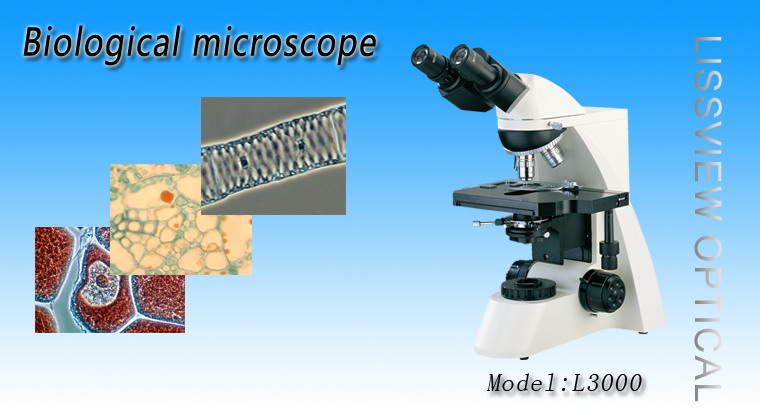

  • L3000series biological microscope is equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

    Features
    ▲  With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    ▲  Using Kohler illumination with 6V 20W halogen lamp with brightness control








  •  Standard Configuration

    Model
    L3000A
    L3000B
    Eyepiece
    WF10X(Φ20mm)
    Objective
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 10X/0.25
    Plan achromatic PL 10X/0.25

    Plan achromatic PL 20X/0.40
    Plan achromatic PL 40X/0.65(Spring)
    Plan achromatic PL 40X/0.65(Spring)
    Plan achromatic PL 100X/1.25(Spring, oil)
    Plan achromatic PL 100X/1.25(Spring, oil)

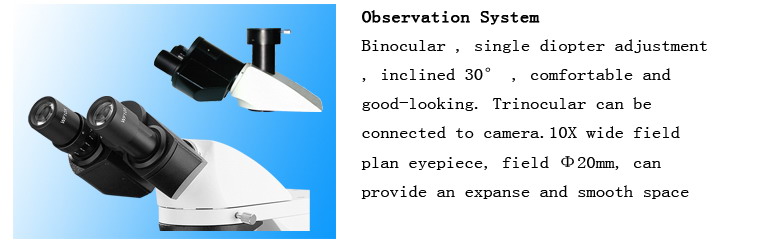

    Eyepiece tube
    Binocular(Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Quintuple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp

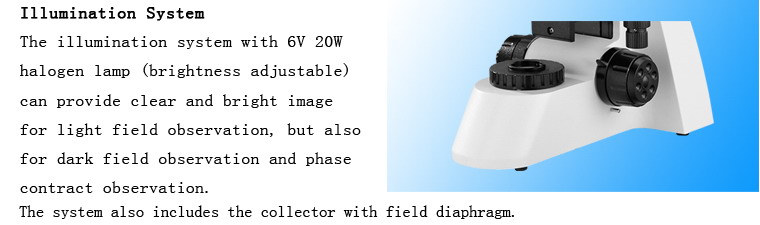

    Light source
    6V 20W Halogen lamp with brightness control

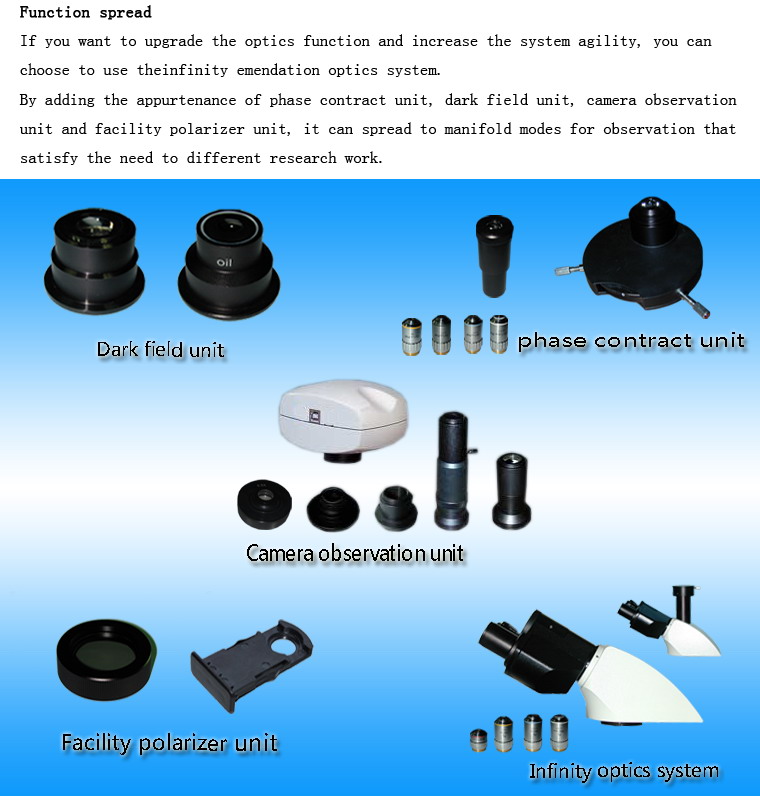

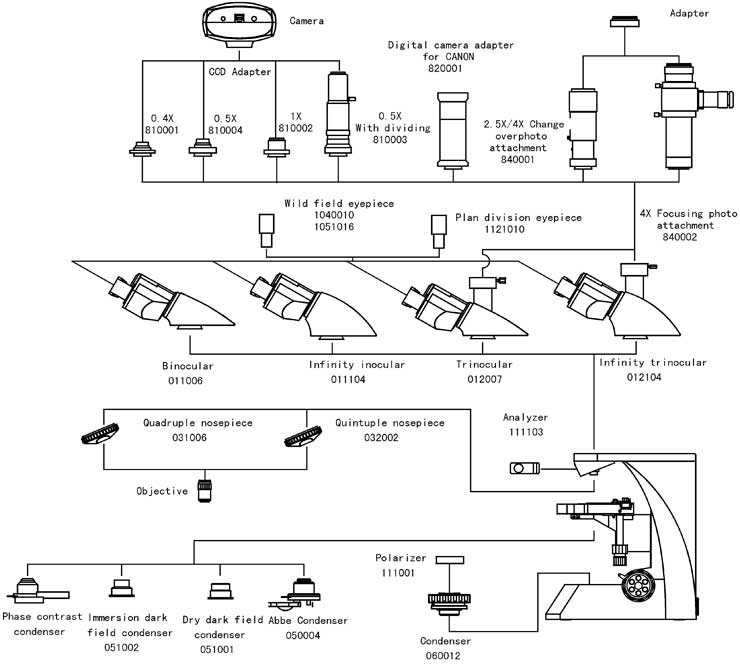

     Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    WF16X(Φ11mm)
    1051016
    Dividing10X(¦µ20mm),0.1mm/Div
    1121010
    Eyepiece tube
    Trinocular
    Inclination of 30˚
    012007
    Filter
    Green filter
    115002
    Yellow filter
    115003
    Condenser
    Dark field
    Dry
    051001
    Immersion
    051002
    Phase contrast unit
    Eyepiece
    Centering telescope
    110001
    Objectives
    Phase contrast plan achromatic 10X/0.25 PHP
    2420110
    Phase contrast plan achromatic 20X/0.40 PHP(Spring)
    2420120
    Phase contrast plan achromatic 40X/0.65 PHP(Spring)
    2420140
    Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
    2420111
    Turnplate phase contrast condenser(PH-¢ñ)
    052001
    Turnplate phase contrast condenser(PH-¢ò)
    052004
    Flashboard phase contrast condenser
    052002
    Pull board phase contrast condenser
    052003
    Infinity optical system
    Eyepiece tube
    Binocular (Inclination of 30˚)
    011104
    Trinocular (Inclination of 30˚)
    012104
    Eyepiece
    Centering telescope
    110002
    Objectives
    Infinity plan achromatic 4X/0.10
    2060104
    Infinity plan achromatic 10X/0.25
    2060110
    Infinity plan achromatic 20X/0.40
    2060120
    Infinity plan achromatic 40X/0.65(Spring)
    2060140
    Infinity plan achromatic 100X/1.25(Spring, oil)
    2060111
    Infinity phase contrast plan achromatic 10X/0.25 PHP
    2470110
    Infinity phase contrast plan achromatic 20X/0.40 PHP
    2470120
    Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
    2470140
    Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
    2470111
    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1(With USB & video output)
    800001
    DV-2(With USB output)
    800003
    DV-3(With video output)
    800005
    Digital camera adapter
    Digital camera adapter(A610,A620,A630,A640)
    820001
    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004
    Facility polarize
    Polarizer(360° rotatable stage)
    111001
    Analyzer
    111103
