  • Introduction

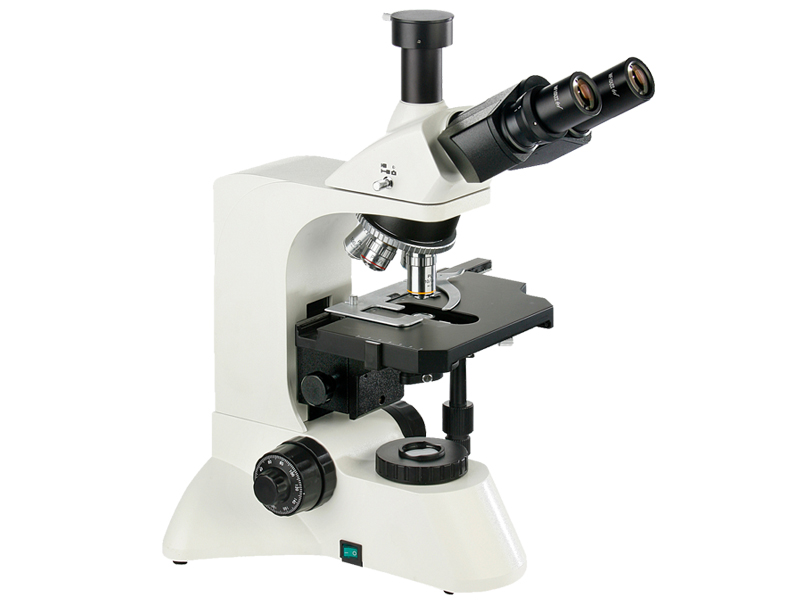

  • L3200series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces. They have beautiful sculpt andprovide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the idealinstrument in medical treatment, teaching demonstration and scientific research.

    Features
    ▲  Equipped with wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    ▲  Maximal movement of stage is 30mm
    ▲  Using Kohler illumination with Integrated field diaphragm and 12V30W halogen lamp, adding radiator and brightness control.

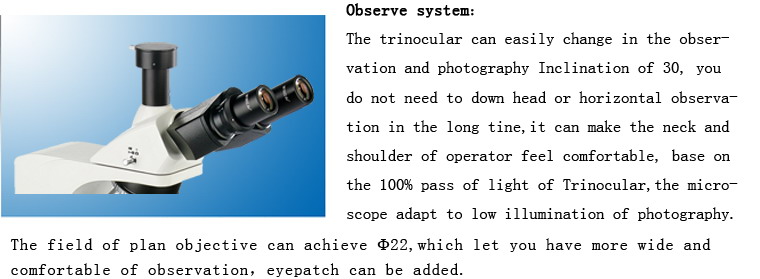

    ▲  Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.











  • Standard Configuration

    Model
    L3200
    Eyepiece
    WF10X(¦Φ22mm)
     Objective
    Infinity plan achromatic objective
    PL 4X/0.10(Work distance)：21 mm
    PL 10X/0.25(Work distance)：5.0mm
    PL 40X/0.65(Spring)(Work distance)：0.66 mm
    PL 100X/1.25(Spring, oil)(Work distance)： 0.36mm
    Eyepiece tube
    L3200HBG
    Binocular (Inclination of 30˚)
    L3200HTG
    Trinocular(Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)

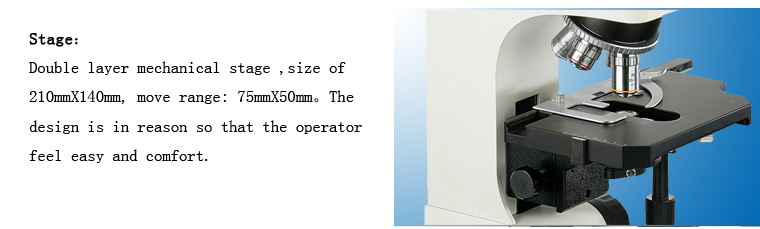

    Stage
    Double layer mechanical (Size:210mmX140mm,Move range: 75mmX50mm)
    Abbe condenser
    N.A.1.25Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp(With field diaphragm )
    Light source
    12V 30W Halogen lamp with brightness control

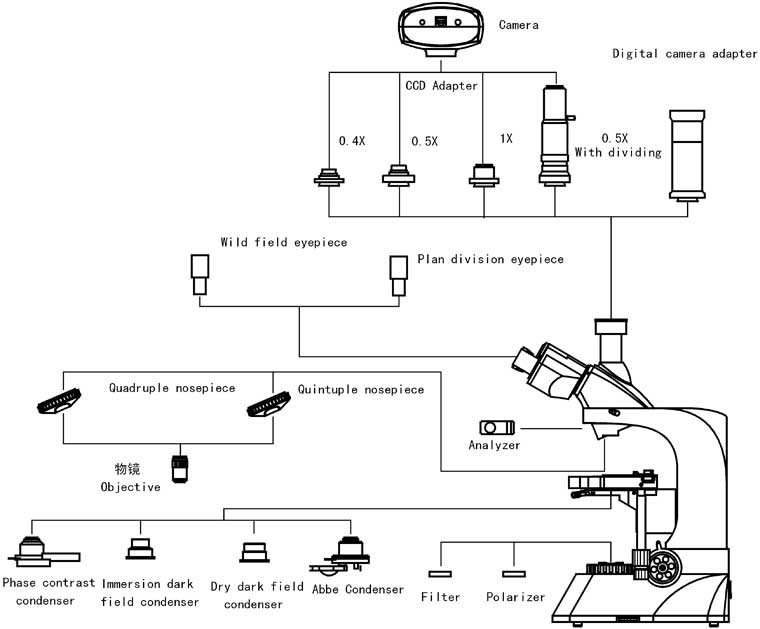

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Dividing eyepiece(field number:Φ22mm)    0.10mm/Div
    1122010
    Objective
    Infinity plan achromatic objective

    PL 20X/0.40(Work distance)：8.8 mm
    2060120
    PL 60X/0.85(Work distance)：0.25mm
    2060160
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    032002
    Filter
    Green filter
    115002
    Yellow filter
    115003
    Condenser
    Dark field
    Dry type
    051001
    Immersion type
    051002
    Phase contrast unit
    Eyepiece
    Centering telescope
    110002
    Objectives
    Infinity phase contrast plan achromatic 10X/0.25 PHP
    2470110
    Infinity phase contrast plan achromatic 20X/0.40 PHP
    2470120
    Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
    2470140
    Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
    2470111
    (PH-Ⅰ ) Turnplate phase contrast condenser
    052001
    (PH-Ⅱ) Turnplate phase contrast condenser
    052004
    Flashboard phase contrast condenser
    052002
    Pull board phase contrast condenser
    052003

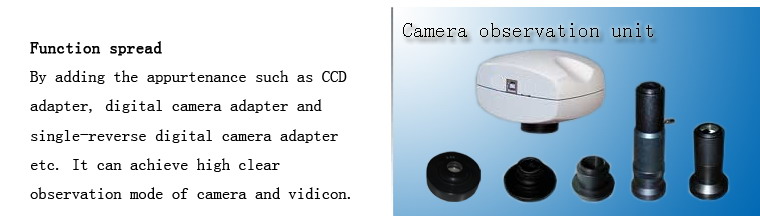

    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©
    800001
    DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£©
    800003
    DV-3 With video output£¨380/520 TV line£©
    800005
    Photo unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD adapter
    840003
    PK adapter
    840004
    Digital camera adapter
    CANON(A570,A610,A620,A630,A640,A650,EF)  NIKON( F)
    820001
    Facility polarize
    Polarizer
    360° rotatable stage
    111001
    Analyzer
    Sliding type
    111105
