  • Introduction

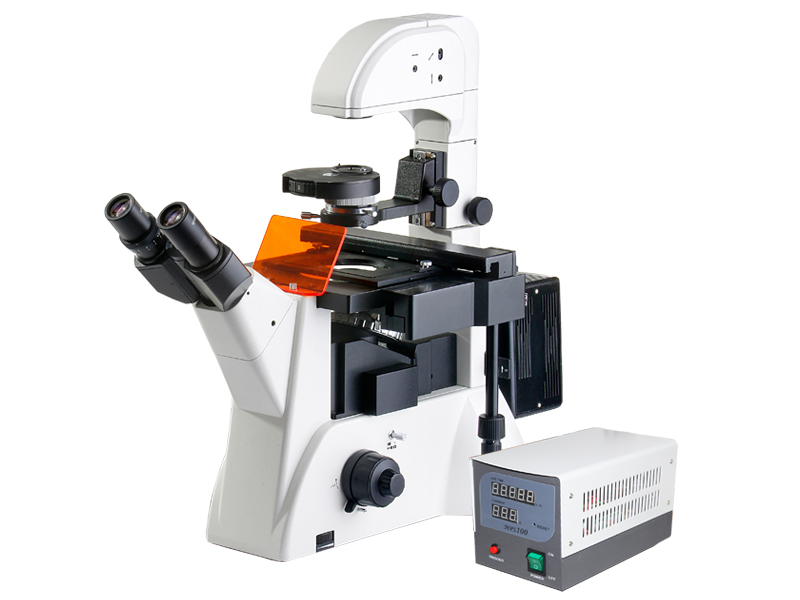

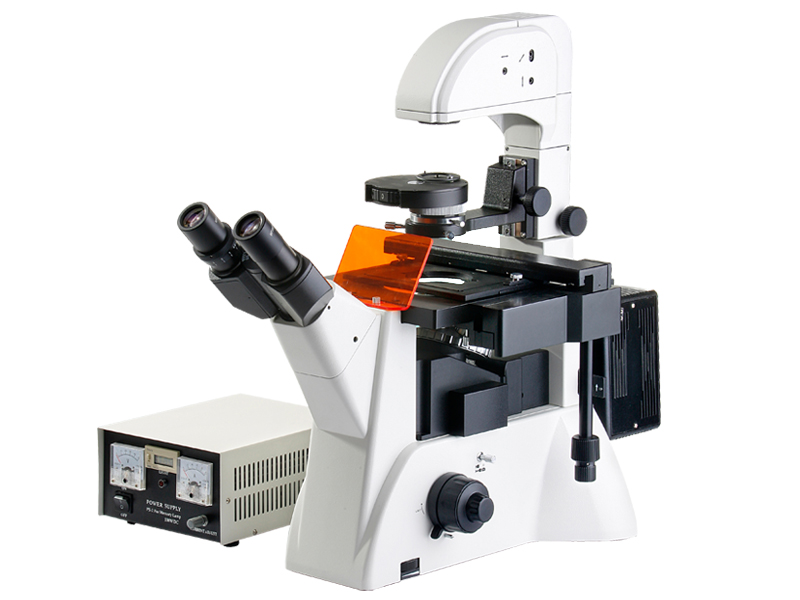

  • XDY-2 Inverted fluorescent microscope is composed with Epi-fluorescent microscope and inverted microscope, equipped excellent UIS optical system and adopted long working distance plan achromatic objectives and wide field eyepieces. Compact and steady main frame body is embodiment for the shock resistance. The enable turning out or into condenser system is suited for observation in a high culture dish. The Epi-fluorescence microscope system is adopted modularization function design idea, so that adjust the fluorescence illuminating system and switching-over fluorescence filters safely and quickly. This is a sort of ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue, can be applied in the fluorescence microscopy, such as biological pharmacy, medicine checking and measure, disease prevent and etc.










  • Standard Configuration

    Specification
    Eyepiece
    Wide field WF10X(field number:¦µ22mm)
    Centering telescope

    Infinity plan
    achromatic objective
    Objective
    PLL 10X0.25  Work distance:4.3 mm,Cover glass thickness:1.2mm.
    PLL 20X0.40  Work distance:8.0 mm,Cover glass thickness:1.2mm.
    PLL 40X0.60  Work distance:3.5 mm,Cover glass thickness:1.2mm.
    Phase Contrast Objective
    PLL 10X0.25 PHP2 Work distance:4.3 mm,Cover glass thickness:1.2mm.
    PLL 20X0.40 PHP2 Work distance:8.0 mm,Cover glass thickness:1.2mm.
    PLL 40X0.60 PHP2 Work distance:3.5 mm,Cover glass thickness:1.2mm.

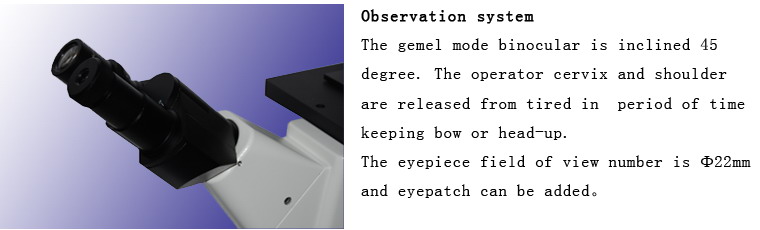

    Eyepieces tube
    Inclination angle is 45˚ and interpupillary distance is 53~75mm.

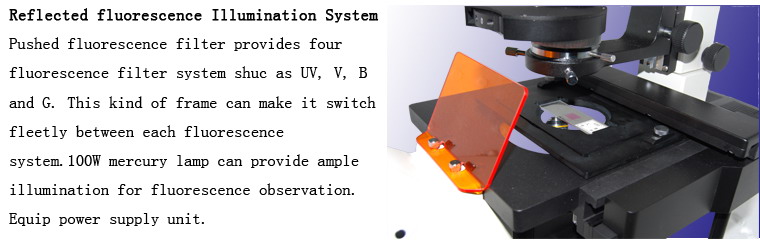

    Epi-fluorescent
    illumination system
    Power supply unit, 110V or 230V can be selected.
    100W/DC Mercury lamp is 100W/DC

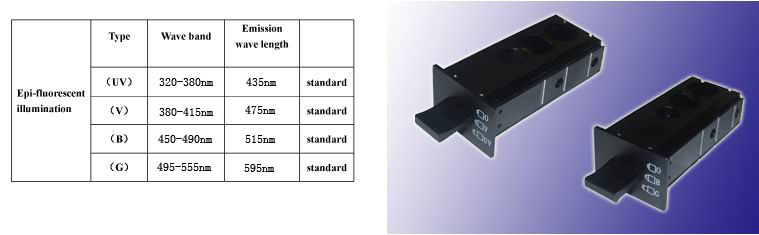

    Fluorescent filters
    Group
    Type
    Wavelength of excitation light
    Wavelength of emitted light
    UV+V
    Ultraviolet light (UV)
    320nm~380nm
    435nm
    Violet light (V)
    380nm~415nm
    475nm
    B+G
    Blue light (B)
    450nm~490nm
    515nm
    Green light (G)
    495nm~555nm
    595nm
    Focus system
    Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm.
     Nosepiece
    Quintuple nosepiece
    Stage
     Fixed stage overall size is 227mmX208mm

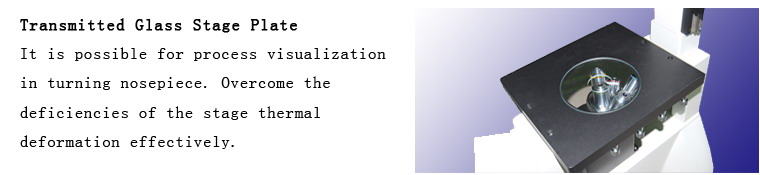

    Glass rotundity stage overall size is Ф118mm

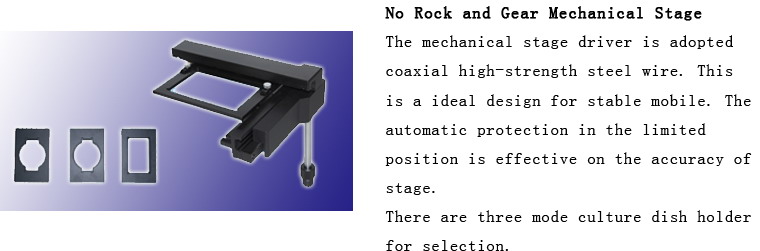

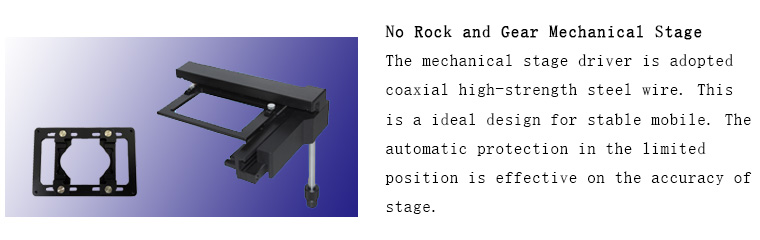

    Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)
    Culture dish holder 1
    Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф90mm
    Culture dish holder 2
    Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
    Culture dish holder 3
    Inside locating slot size:57mm (W)X82mm (L)  optional with a circular culture dish Ф60mm
    Culture dish holder  4  Inside locating slot size:29mm (W)X77.5mm (L)  optional with a circular culture dish Ф35mm

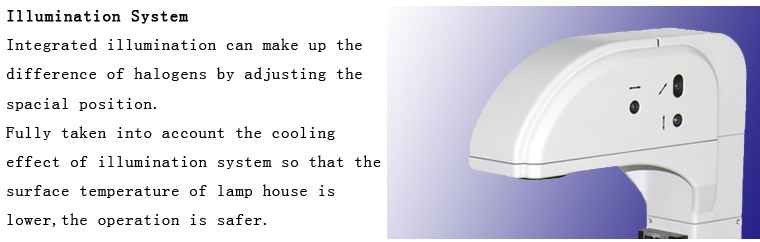

    Transmitted illumination
    system

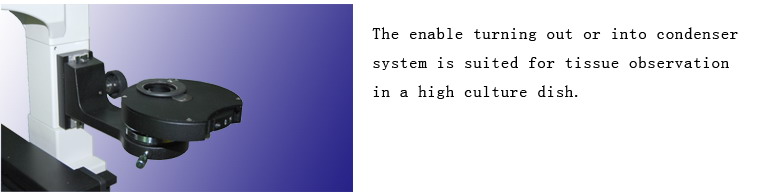

    Turnplate phase contrast condenser,  working distance is 55mm
    12V30W halogen, brightness enable control
    Frosted glass and blue , green filter

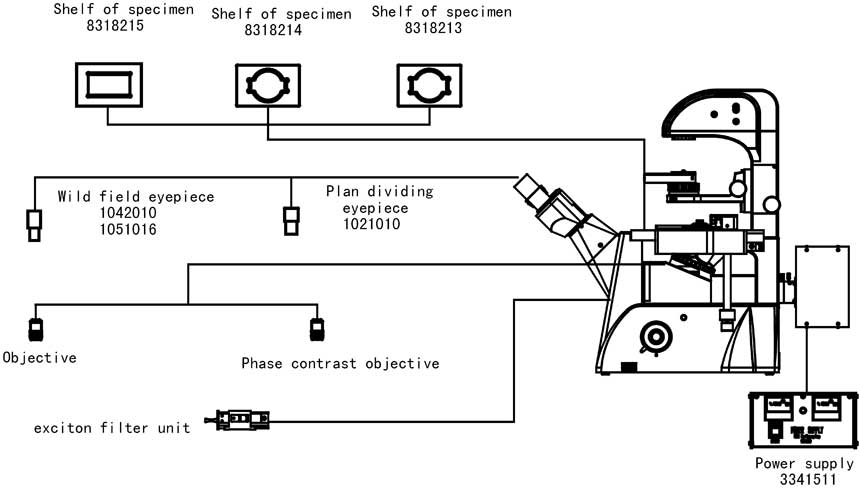

    Optional accessories
    Eyepiece
    10XDividing eyepiece(field number:¦µ22mm)    0.10mm/Div
    1122010
    Objective
    Infinity plan achromatic objective PL 5X/0.12 W.D26.1
    2060105
    Nosepiece
    Sextupe (Backward ball bearing inner locating)
    033001
    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5Xwith dividing 0.1mm/Div
    810003
    Camera
    DV-1 (with USB and Video output)

    DV-130 / 300 / 500 / 900 (with USB output)

    DV-380 / 520 (with Video output)

    Digital camera adapter
    CANON(EF), NIKON(F)
    820001
