  • Introduction

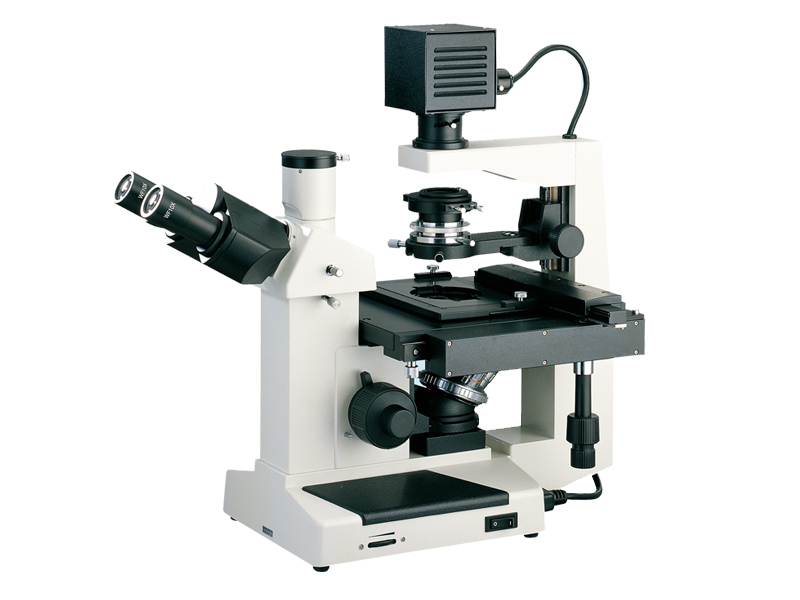

  • XDS-2Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives and very long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry, etc.
    Features
    ▲  Equipped with wide field eyepiece, long working distance plan achromatic objectives
    ▲  Equipped with phase contrast unit, include very long working distance condenser, phase contrast objective and centering telescope
    ▲  Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    ▲  6V30W halogen lamp with brightness control









  • Standard configuration

    Model
    XDS-2
    Eyepiece
    Wide field WF10X(¦µ20mm)
    Objective
    Long working distance plan achromatic PL L 10X/0.25
    Long working distance plan achromatic PL L 25X/0.40
    Long working distance plan achromatic PL L 40X/0.60
    Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2

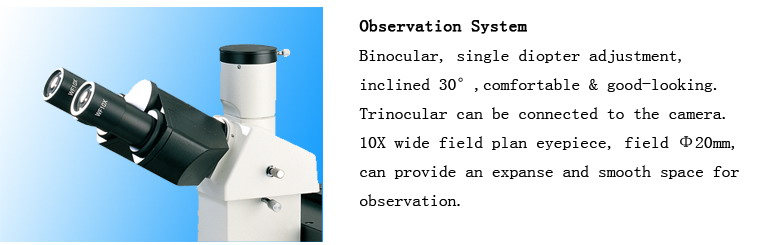

    Eyepiece tube
    Trinocular (Inclination of 30°, 100% image light for photography capable)
    Focus system
    Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Ball bearing inner locating)

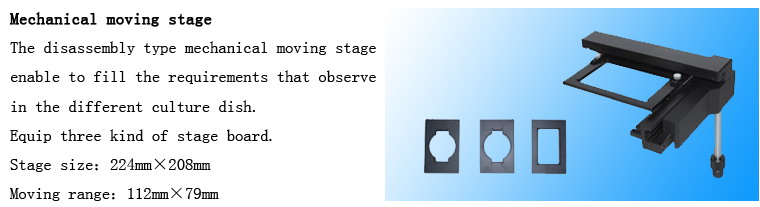

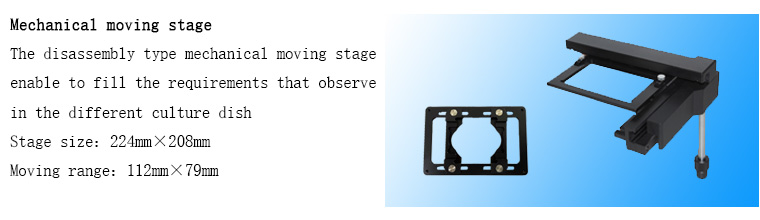

    Stage
    Double layer mechanical(Size:224mmX208mm,moving range:112mmX79mm)
    Shelf of specimen
    Match to install ¦µ68mm or 77mmX29mm culture utensil
    Match to install 82mmX57mm culture utensil
    Match to install 128mmX85mm 96 holes culture utensil
    Filter
    Blue filter
    Green filter
    Frosted filter

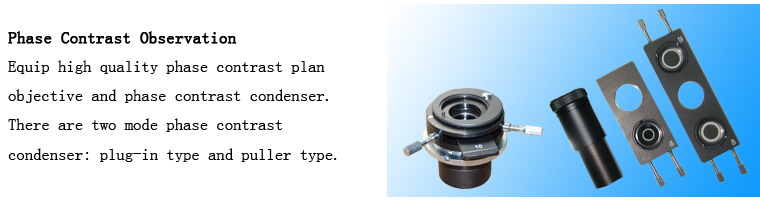

    Sliding phase contrast unit
    Centering telescope
    10X Sliding phase plate

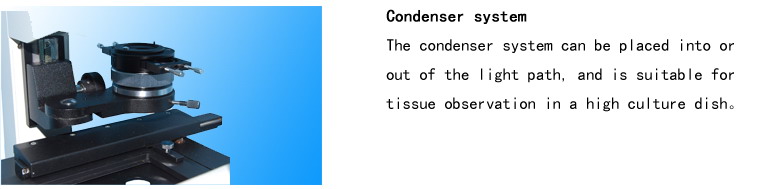

    Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm

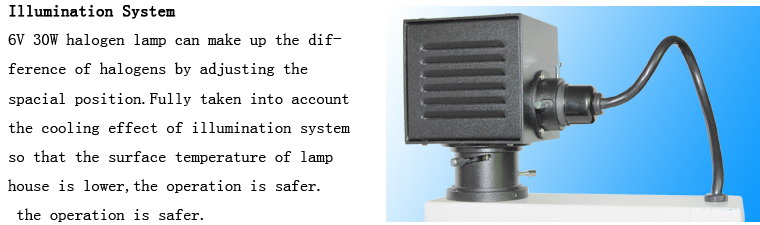

    Light source
    6V 30W Halogen lamp with brightness control.

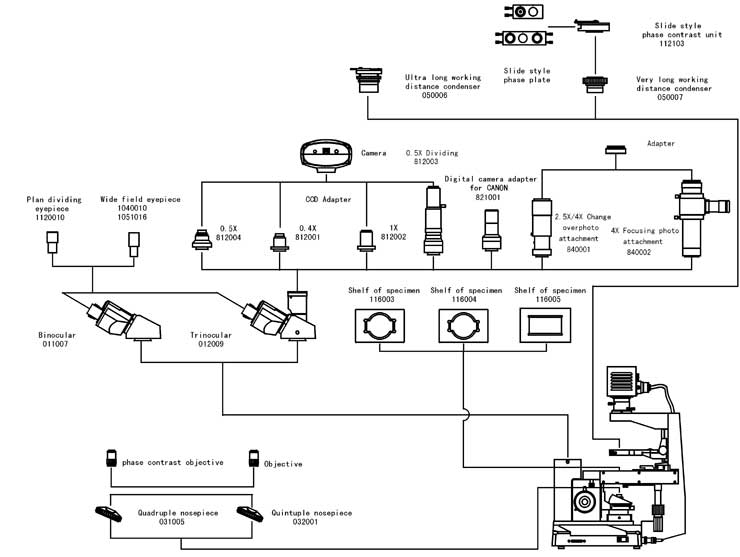

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field WF16X(¦µ11mm)
    1051016
    Dividing  10X(¦µ20mm), 0.1mm/Div
    1120010
    Nosepiece
    Quintuple(Ball bearing inner locating)
    032001
    Condenser
    Ultra long working distance,W.D.:70mm
    050006
    Filter
    Yellow filter
    115003
    Sliding phase contrast unit
    Objectives
    Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
    2430325
    Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
    2430340
    Sliding phase plate
    25X/40X
    112005
    CCD adapter
    0.4X
    812001
    0.5X
    812004
    1X
    812002
    0.5X with dividing 0.1mm/Div
    812003
    Camera
    DV-1(With USB & video output)
    800001
    DV-2(With USB output)
    800003
    DV-3(With video output)
    800005
    Digital camera adapter
    CANON digital camera adapter(A610,A620,A630,A640)
    821001
    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004
