  • Introduction

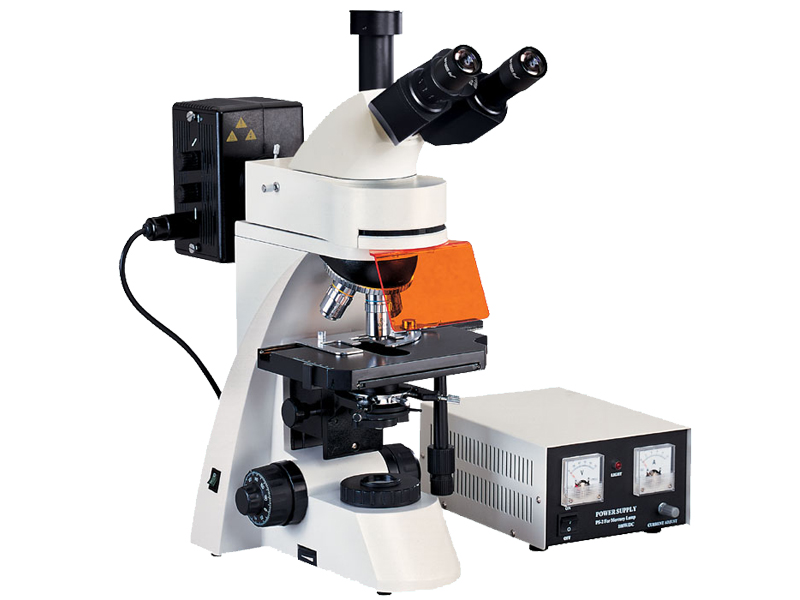

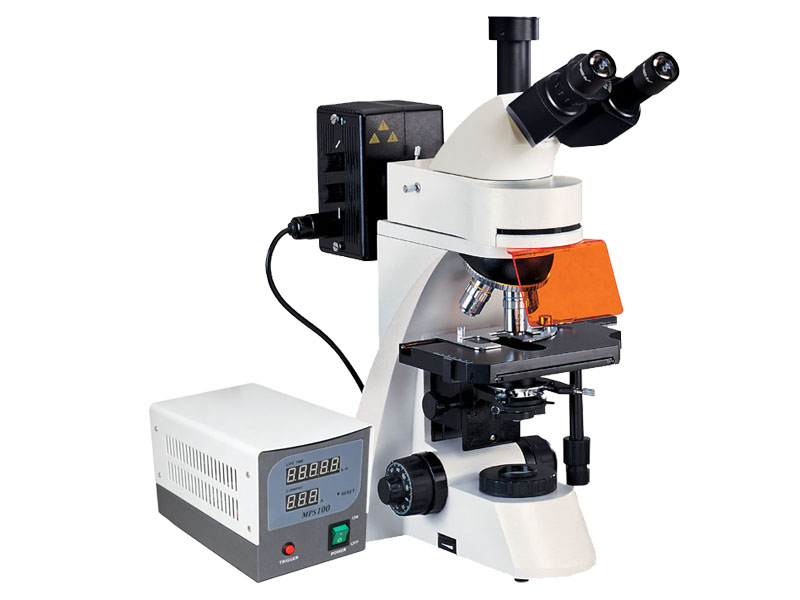

  • L3001 Epifluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan
    achromatic objectives and wide field eyepieces, have clear picture and wide view field. It is the ideal instrument in biology, cytology, oncology,
    genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
    Features
    ▲  With wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    ▲  20W 6V halogen lamp with electronic dimmer









  • Standard configuration

    Model
    L3001
    Eyepiece
    Wide field WF10X(¦µ20mm)
    Objective
    Infinity plan achromatic Objectives PL 4X/0.10
    Infinity plan achromatic Objectives PL 10X/0.25
    Infinity plan achromatic Objectives PL 40X/0.65(Spring)
    Infinity plan achromatic Objectives PL 100X/1.25(Spring, oil)

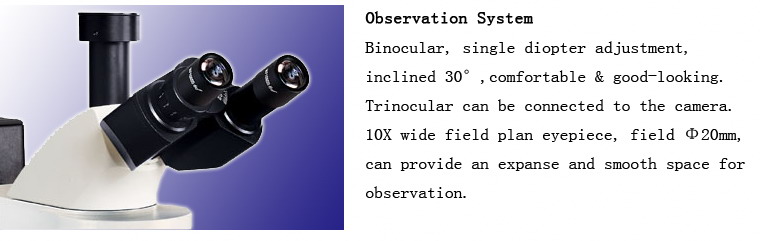

    Eyepiece tube
    Trinocular (Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source

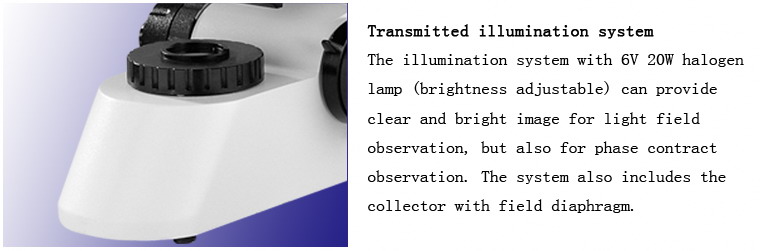

    6V 20W Halogen lamp ,adjustable brightness

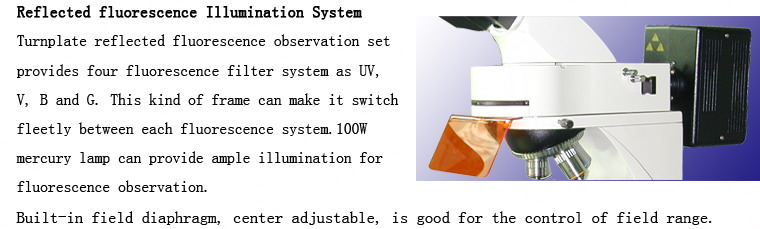

    Reflected fluorescence system
    Mercury lamp house 100W/DC
    Power supply unit:AV:110V or 220V
    Fluorescence filter system  B exciton wavelength:450~490nm
    Fluorescence filter system  G exciton wavelength:495~555nm
    Fluorescence filter system  UV exciton wavelength:320~380nm
    Fluorescence filter system  V exciton wavelength:380~415nm

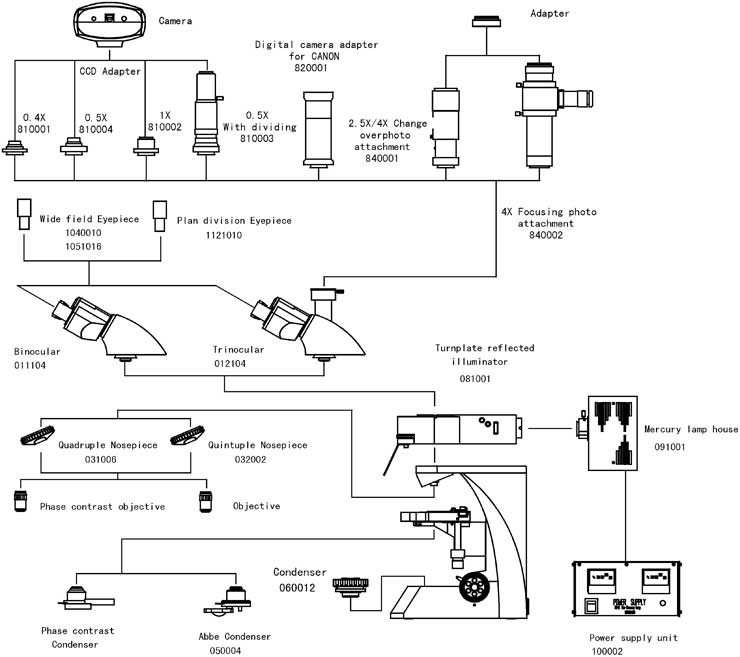

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    WF16X(¦µ11mm)
    1051016
    Dividing  10X(¦µ20mm),0.1mm/Div
    1121010
    Objectives
    Infinity plan achromatic 20X/0.40
    2060120
    Eyepiece tube
    Binocular(Inclination of 30˚)
    011104
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    032002
    Filter
    Green filter
    115002
    Yellow filter
    115003

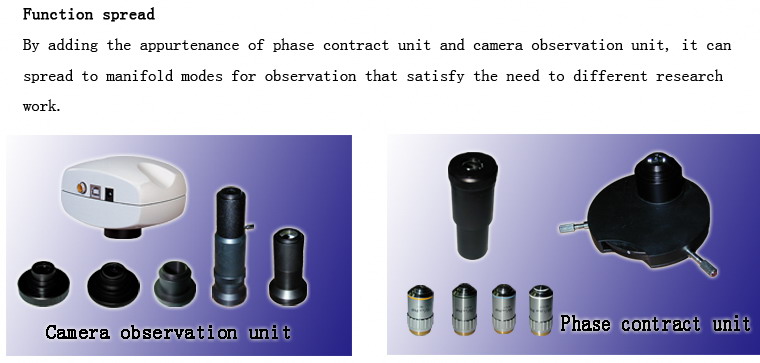

    Phase contrast unit
    Eyepiece
    Centering telescope
    110002
    Objectives
    Infinity phase contrast plan achromatic 10X/0.25 PHP
    2470110
    Infinity phase contrast plan achromatic 20X/0.40 PHP
    2470120
    Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
    2470140
    Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
    2470111
    (PH-¢ñ) Turnplate phase contrast condenser
    052001
    (PH-¢ò) Turnplate phase contrast condenser
    052004
    Flashboard phase contrast condenser
    052002
    Pull board phase contrast condenser
    052003
    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    With USB & video output
    800001
    With USB output
    800003
    With video output
    800005
    Digital camera adapter
    CANON digital camera adapter(A610,A620,A630,A640)
    820001
    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004
