  • Introduction

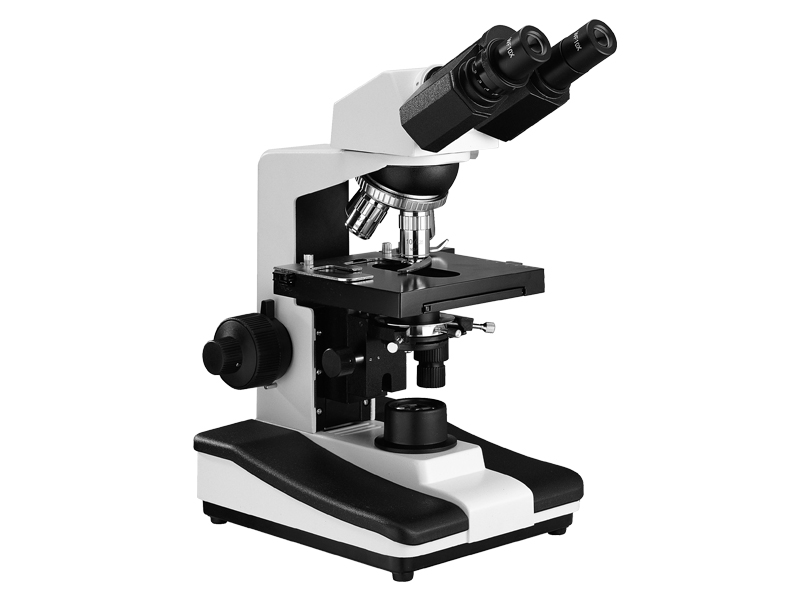

  • L1800 series biological microscopes are equipped with achromatic objectives or semi-plan achromatic, wide field eyepieces. They have clear image,wide field, beautiful sculpt, convenient operation etc. They can be used for medicine, and assay area widely. They are the ideal instruments inmedical treatment, teaching demonstration and scientific research.


    Features
    ▲        With wide field eyepieces, semi-plan achromatic or achromatic objectives, the field of view is widely and clear

    ▲        Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

     ▲       6Volt 20Watt Halogen lamp with brightness control


  • Standard Configuration

    Model
    L1800A
    L1800B
    Eyepiece
    Wide field WF10X(Φ18mm)
    Objective
    Achromatic 4X/0.10
    Semi-plan achromatic 4X/0.10
    Achromatic 10X/0.25
    Semi-plan achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Semi-plan achromatic 40X/0.65(Spring)
    Achromatic 100X/1.25(Spring, oil)
    Semi-plan achromatic 100X/1.25(Spring, oil)
    Eyepiece tube
    Binocular(Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
    6V 20W Halogen lamp with brightness control

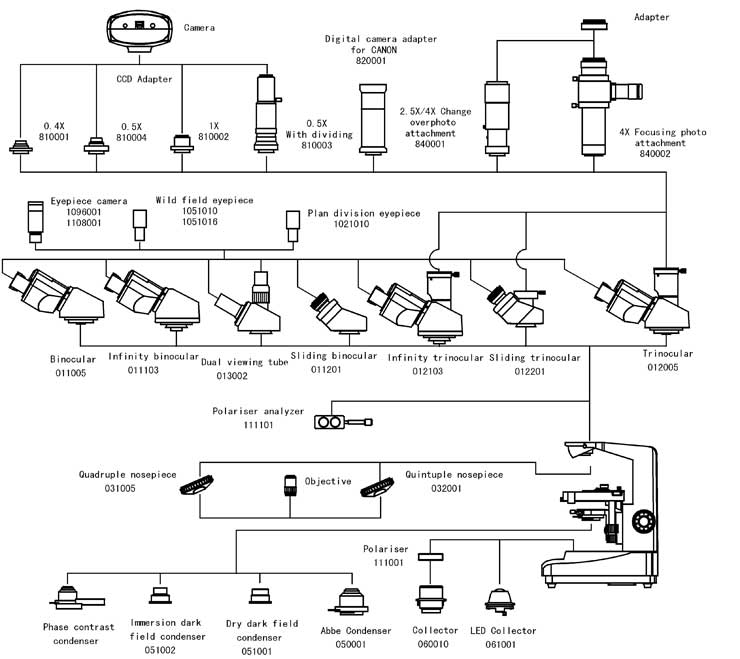

    Optional accessories

    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)
    1051016
    Dividing   10X(Φ18mm) 0.1mm/Div
    1021010
    Objective
    Plan achromatic  4X/0.10
    2040104
    Plan achromatic  5X/0.12
    2040105
    Plan achromatic  10X/0.25
    2040110
    Plan achromatic  20X/0.40
    2040120
    Plan achromatic  40X/0.65(Spring)
    2040140
    Plan achromatic  60X/0.85(Spring)
    2040160
    Plan achromatic  100X/1.25(Spring, oil)
    2040111
    Eyepiece tube
    Binocular, Sliding(Inclination of 45˚)
    011201
    Trinocular, Sliding(Inclination of 45˚)
    012201
    Trinocular (Inclination of 30˚)
    012005
    Dual viewing tube (Inclination of 30˚)
    013002
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    032001
    Filter
    Green filter
    115002
    Yellow filter
    115003
    Light source
    LED Collector
    Bright and white light
    073009
    Condenser
    Dark field
    Dry
    051001
    Immersion
    051002
    Phase contrast unit
    Eyepiece
    Centering telescope
    110001
    Objectives
    Phase contrast plan achromatic 10X/0.25 PHP
    2420110
    Phase contrast plan achromatic 20X/0.40 PHP
    2420120
    Phase contrast plan achromatic 40X/0.65 PHP(Spring)
    2420140
    Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
    2420111
    (PH-Ⅰ ) Turnplate phase contrast condenser
    052001
    (PH-Ⅱ) Turnplate phase contrast condenser
    052004
    Flashboard phase contrast condenser
    052002
    Pull board phase contrast condenser
    052003
    Infinity optical system
    Eyepiece tube
    Binocular (Inclination of 30˚)
    011103
    Trinocular (Inclination of 30˚)
    012103
    Eyepiece
    Centering telescope
    110002
    Objectives
    Infinity plan achromatic 4X/0.10
    2060104
    Infinity plan achromatic 10X/0.25
    2060110
    Infinity plan achromatic 20X/0.40
    2060120
    Infinity plan achromatic 40X/0.65(Spring)
    2060140
    Infinity plan achromatic 100X/1.25(Spring, oil)
    2060111
    Infinity phase contrast plan achromatic 10X/0.25 PHP
    2470110
    Infinity phase contrast plan achromatic 20X/0.40 PHP
    2470120
    Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
    2470140
    Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)
    2470111
    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1(With USB & video output)
    800001
    DV-2(With USB output)
    800003
    DV-3(With video output)
    800005
    Photography
    USB Output
    1096001
    VIDEO Output
    1108001
    Digital camera adapter
    CANON Digital camera adapter(A610,A620,A630,A640)
    820001
    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004
    Facility polarize
    Polarizer(360° rotatable stage)
    111001
    Analyzer
    111101
    Adapter
    Input: 230V¡«50/60HZ   Output: 9V  500mA
    101001
    Input: 110V¡«50/60HZ   Output: 9V  500mA
    101002
