  • Introduction

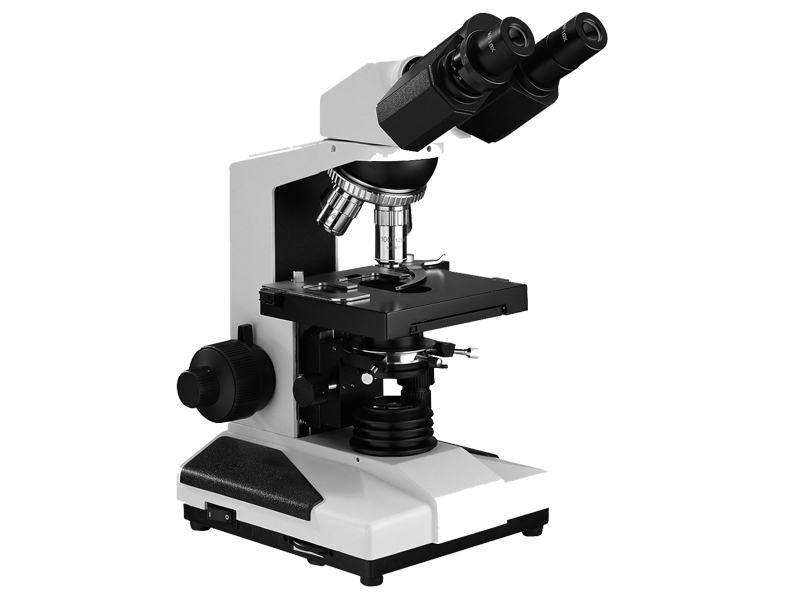

  • L1200 series biological microscopes are equipped with achromatic objectives and wide field eyepieces. They have clear image, wide field, etc. They can be used for biology, medicine, and agriculture and industry area widely. They are the ideal instruments in medical treatment,teaching demonstration and scientific research.

    Features
    ▲   With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear.
    ▲   Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲   6 Volt 20 Watt Halogen lamps with brightness control

  • Standard Configuration

    Model
    L1200A
    L1200B
    L1200C
    Eyepiece
    Wide field WF10X(Φ18mm)
    Objective
    Achromatic 4X/0.10
    Achromatic 4X/0.10
    Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 10X/0.25
    Achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Achromatic 40X/0.65(Spring)
    Achromatic 40X/0.65(Spring)
    Achromatic 100X/1.25(Spring, oil)
    Achromatic 100X/1.25
    (Spring, oil)
    Achromatic 100X/1.25(Spring, oil)
    Eyepiece tube
    Binocular(Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm
    Coaxial coarse/fine focus minimum division of fine focusing: 2μm, with tensional adjustable and up stop, base bearing black plastic cap
    Coaxial coarse/fine focus with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    For halogen lamp
    For halogen lamp
    Light source
    6V 20W, Halogen lamp with brightness control






















    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field   WF16X(Φ11mm)
    1051016
    Dividing    10X(¦µ18mm)  0.1mm/Div
    1021010
    Objective
    Semi-plan achromatic  SP 4X/0.10
    2030104
    Semi-plan achromatic  SP 10X/0.25
    2030110
    Semi-plan achromatic  SP 20X/0.40
    2030120
    Semi-plan achromatic  SP 40X/0.65(Spring)
    2030140
    Semi-plan achromatic  SP 100X/1.25(Spring, oil)
    2030111
    Eyepiece tube
    Monocular(Inclination of 30˚)
    010006
    Binocular, Sliding(Inclination of 45˚)
    011201
    Trinocular,Sliding(Inclination of 45˚)
    012201
    Trinocular(Inclination of 30˚)
    012003
    Dual viewing tube(Inclination of 30˚)
    013002
    Nosepiece
    Quintuple (Backward ball bearing inner locating)
    032001
    Filter
    Green filter
    115002
    Yellow filter
    115003
    Light source
    LED Collector
    Bright and white light
    073006
    Condenser
    Dark field
    Dry
    051001
    Immersion
    051002
    Phase contrast unit
    Eyepiece
    Centering telescope
    110001
    Objectives
    Phase contrast achromatic 10X/0.25 PHP
    2410110
    Phase contrast achromatic 20X/0.40 PHP(Spring)
    2410120
    Phase contrast achromatic 40X/0.65 PHP(Spring)
    2410140
    Phase contrast achromatic 100X/1.25 PHP(Spring, oil)
    2410111
    (PH-Ⅰ ) Turnplate phase contrast condenser
    052001
    (PH-Ⅱ) Turnplate phase contrast condenser
    052004
    Flashboard phase contrast condenser
    052002
    Pull board phase contrast condenser
    052003
    Infinity optical system
    Eyepiece tube
    Binocular,(Inclination of 30˚)
    011101
    Trinocular(Inclination of 30˚)
    012101
    Eyepiece
    Centering telescope
    110002
    Objectives
    Infinity semi-plan achromatic 4X/0.10
    2070104
    Infinity semi-plan achromatic 10X/0.25
    2070110
    Infinity semi-plan achromatic 40X/0.65(Spring)
    2070140
    Infinity semi-plan achromatic 100X/1.25(Spring, oil)
    2070111
    Infinity phase contrast achromatic 10X/0.25 PHP
    2480110
    Infinity phase contrast achromatic 20X/0.40 PHP(Spring)
    2480120
    Infinity phase contrast achromatic 40X/0.65 PHP(Spring)
    2480140
    Infinity phase contrast achromatic 100X/1.25 PHP(Spring, Oil)
    2480111
    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1(With USB & video output)
    800001
    DV-2(With USB output)
    800003
    DV-3(With video output)
    800005
    Photography
    USB Output
    1096001
    VIDEO Output
    1108001
    Digital camera adapter
    CANON Digital camera adapter(A610,A620,A630,A640)
    820001
    Photograph unit
    MD Adapter
    840003
    PK Adapter
    840004
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    Facility polarize
    Polarizer(360° rotatable stage)
    111001
    Analyzer
    111101
    Adapter(For LED illumination)
    Input: 230V¡«50/60HZ   Output: 9V  500mA
    101001
    Input: 110V¡«50/60HZ   Output: 9V  500mA
    101002
