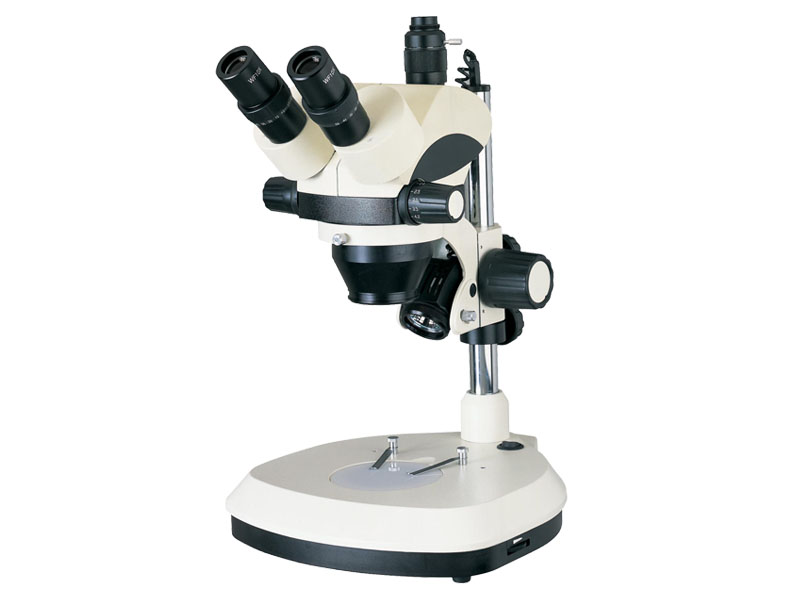

XTL series stereo zoom microscopes are a kind of positive image microscope, they are adopted horizontal knob to zoom control, they have long working distance, clear and smooth image quality, wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.

XTL-101 has apply for patent, patent number：ZL200830218637.3

Features
▲  Eyepieces field is wide and clear.
▲  Objectives range of zoom magnification  0.7X~4.5X
▲  Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and eyepieces diopter can be adjusted, interpupillary distance adjustable range from 55mm~75mm.

Product configuration and main parameter

XTL-1 Series

XTL-1A		XTL-1B		XTL-1C
Model Specification	XTL-1A		XTL-1B		XTL-1C
Eyepieces	WF10X (Φ20mm)
Objective	Objectives range of zoom magnification  0.7X~4.5X
Total magnification	7X~45X
Visual field	Φ28.5~Φ4.5
Working distance	88mm
Vertical effective movement	25mm<=h<265mm				25mm<=h<240mm
Base size	240X180X25mm		300X240X25mm		240X180X25(mm)with movable stage, movement range:42X42(mm)

Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body.

XTL-2 Series

XTL-2		XTL-2A
Model Specification	XTL-2		XTL-2A
Eyepiece	WF10X(Φ20mm)
Objective	Objectives range of zoom magnification  0.7X~4.5X
Total magnification	7X~45X
Visual field	Φ28.5~Φ4.5
Working distance	88mm
Vertical effective movement	25mm<=h<265mm		25mm<=h<130mm
Base size	215X160X60mm
Illumination model	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness

Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body.

XTL-3 Series

XTL-3		XTL-3A
Model Specification	XTL-3		XTL-3A
Eyepiece	WF10X(Φ20mm)
Objective	Objectives range of zoom magnification  0.7X~4.5X
Total magnification	7X~45X
Visual field	Φ28.5~Φ4.5
Working distance	88mm
Vertical effective movement	25mm<=h<265mm		25mm<=h<130mm
Base size	215X160X60mm
Illumination model	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness

Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body.

 XTL-101 ,102Series

XTL-101		XTL-102
Model Specification	XTL-101		XTL-102
Eyepiece	WF10X (Φ20mm)
Objective	Objectives range of zoom magnification  0.7X~4.5X
Total magnification	7X~45X
Visual field	Φ28.5~Φ4.5
Working distance	88mm
Vertical effective movement	35mm<=h<215mm		35mm<=h<265mm
Base size	260X290X55mm		300X240X25mm
Illumination model	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness		Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness

Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body.

      XTL-103Series

XTL-103A		XTL-103B		XTL-103C
Model Specification	XTL-103A		XTL-103B		XTL-103C
Eyepiece	WF10X (Φ20mm)
Objective	Objectives range of zoom magnification  0.7X~4.5X
Total magnification	7X~45X
Visual field	Φ28.5~Φ4.5
Working distance	88mm
Vertical effective movement	35mm<=h<265mm		35mm<=h<265mm		35mm<=h<240mm
Base size	240X180X25(mm)		300X240X25mm		240X180X25(mm)with movable stage, movement range:42X42(mm)

Note: Please append a letter “T” in the backside of correspond model when you select the trinocular body.

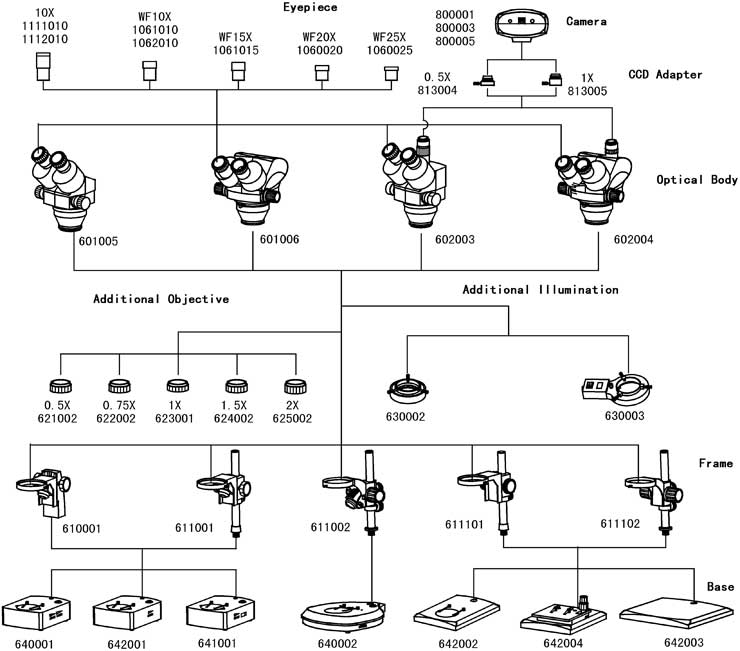

Optional accessories

Name	Sort/Technique parameter	NO.
Eyepiece	Wide field eyepiece  WF10X(Φ22mm)	1062010
	Wide field eyepiece  WF15X(Φ15mm)	1061015
	Wide field eyepiece  WF20X(Φ12mm)	1060020
	Wide field eyepiece  WF25X(Φ9mm)	1060025
	Divisional wide field eyepiece  10X(Φ20mm) 0.1mm/Div	1111010
	Divisional wide field eyepiece  10X(Φ22mm) 0.1mm/Div	1112010
Optical body	Trinocular body	602003
	Trinocular body	602004
Additional objective	0.5X W.D.137mm	621002
	0.75X W.D.103mm	622002
	1X W.D.88mm	623001
	1.5X W.D.48mm	624002
	2X W.D.29mm	625002
Illumination	8W/90¡«265V  Annular LED illumination W.D.:35~200mm	630002
	5W,110V /220V  Annular fluorescent illumination	630003
CCD adapter	0.5X	813004
	1X	813005
Camera	DV-1  With USB & video output	800001
	DV-2  With USB output	800003
	DV-3  With video output	800005
