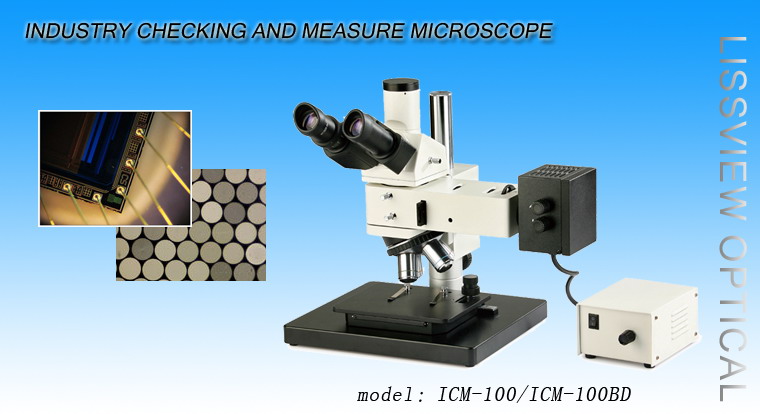

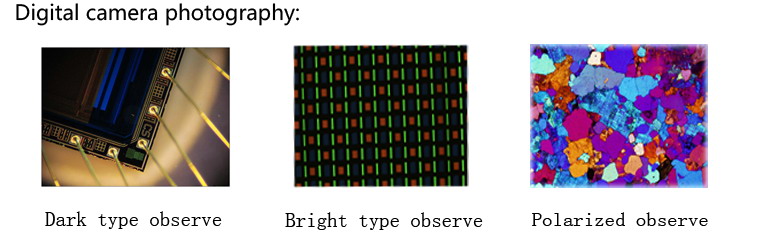

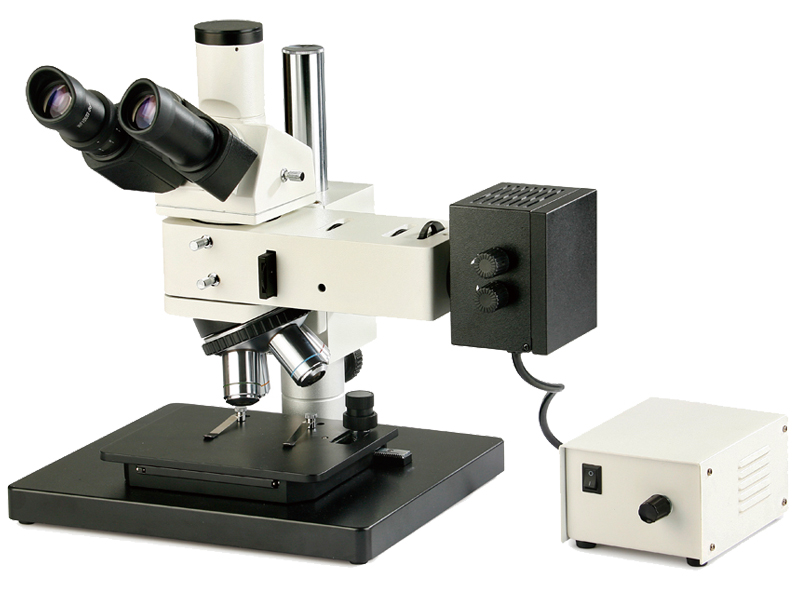

  • ICM-100/100BD Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc







  • Standard Configuration

    Specification
    Eyepiece
    Wide field WF10X(field number:Φ22mm)
    Infinity plan achromatic objective
    ICM-100
    Equipped with bright field objectives
    PL L5X/0.12  (Work distance):26.1 mm
    PL L10X/0.25  (Work distance):20.2 mm
    PL L20X/0.40  (Work distance):8.80 mm
    PL L50X/0.70  (Work distance):3.68 mm
    ICM-100BD

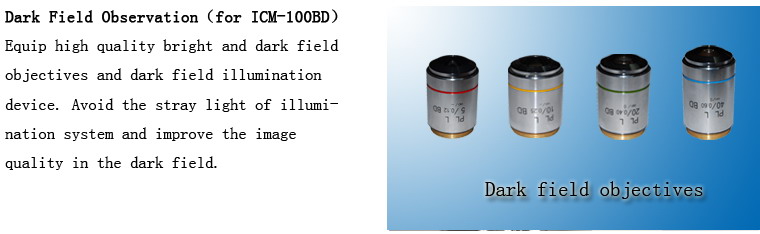

    Equipped with bright & dark field objectives
    PL L5X/0.12 BD  (Work distance):8.05 mm
    PL L10X/0.25 BD  (Work distance):7.86mm
    PL L20X/0.40 BD (Work distance):7.23mm
    PL L50X/0.70 BD  (Work distance):1.75mm
    Eyepieces tube

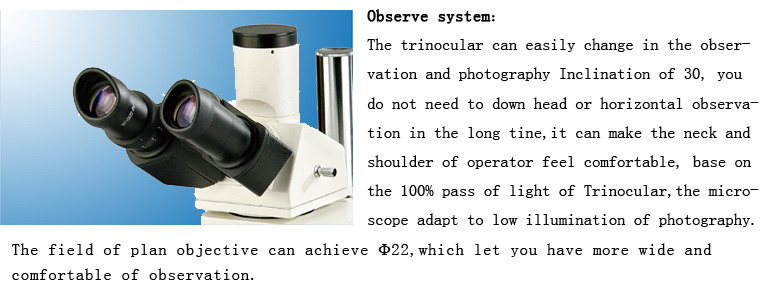

    Trinocular inclined 30˚, can be shot in 100% light flux.

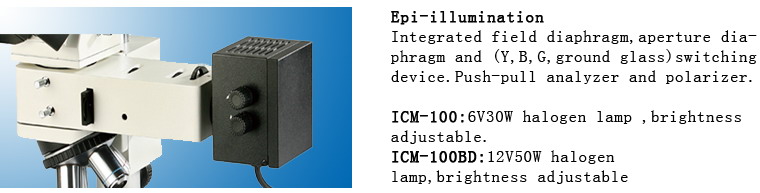

    Epi- illumination system
    ICM-100
    6V30W halogen and brightness enable control
    ICM-100BD
    12V50W halogen and brightness enable control
    Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
    Focus system
    Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 2μm.
    Nosepiece
    Quintuple (Backward ball bearing inner locating)
    Working stage

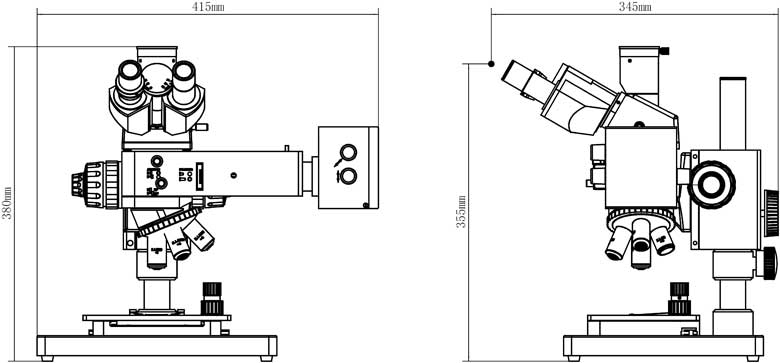

    Base overall size:300mmX240mm

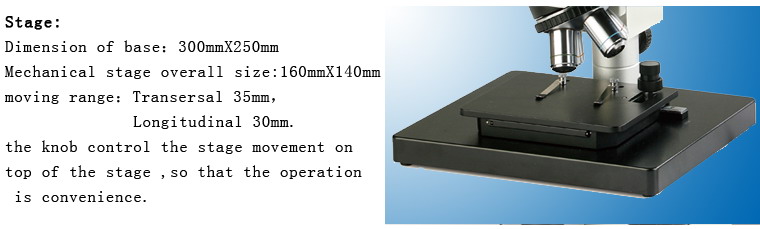

    Mechanical stage overall size:185mmX140mm£¬moving range:Transersal :35mm£¬Longitudinal:30mm

    Optional accessories
    Eyepiece
    Wide field WF10X(field number:Φ22mm)
    1122010
    Objective
    ICM-100
    PL L40X/0.60  (Work distance):3.98 mm
    2260140
    PL L60X/0.70 (Work distance):2.08mm
    2260160
    PL L80X/0.80  (Work distance):1.25 mm
    2260180
    PL L100X/0.85  (Work distance):0.40 mm
    2260111
    ICM-100BD
    PL L40X/0.6 BD  (Work distance):3 mm
    2120140
    PL L60X/0.7 BD  (Work distance):1.65 mm
    2120160
    PL L80X/0.80 BD  (Work distance):0.80mm
    2120180
    PL L100X/0.85 BD  (Work distance):0.4 mm
    2120111

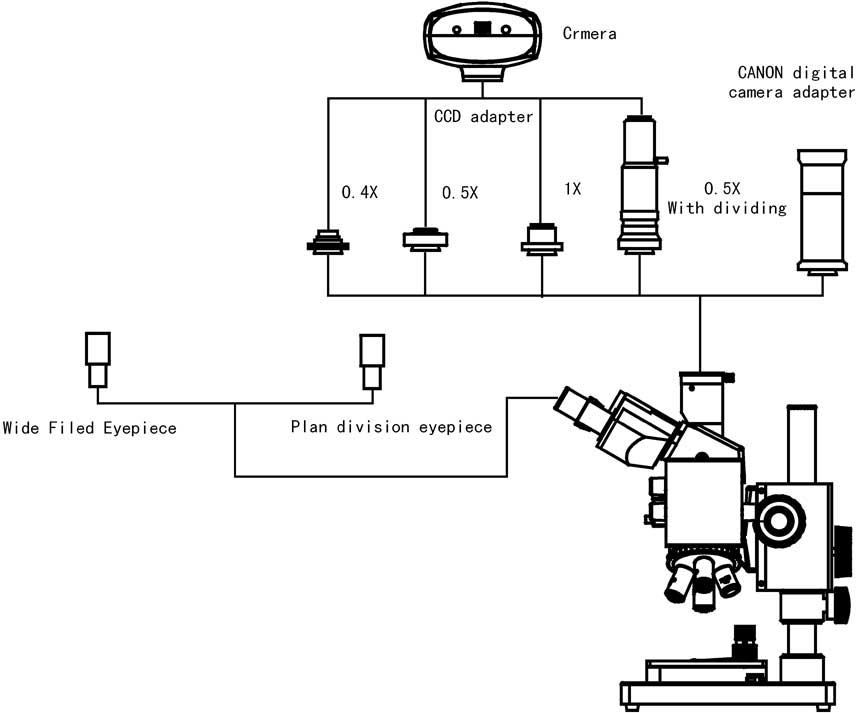

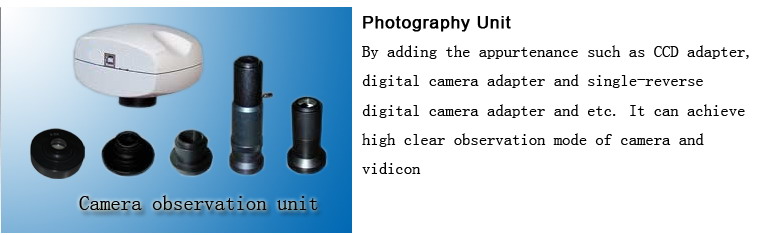

    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5Xwith dividing 0.1mm/Div
    810003
    Camera
    DV-130

    DV-300

    DV-500

    Digital camera adapter
    CANON(EF), NIKON(F)
    820001
