  • Introduction


  • XJL-302  upright metallurgical microscope is suitable to observe surfaces of opaque object. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
    Features
    ▲  With long working distance plan achromatic objectives  (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
    ▲  With large move range mechanical stages,moving range:8"X8"(204mmX204mm)
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.8μm
    ▲  6V 30W halogen lamp, adjustable brightness
    ▲  Trinocular, can switch to normally/polarize observation, brightfield/darkfield observation. can send 100% of light to the binocular eyepieces or to the top port












  • Standard Configuration

    Specification
    Eyepiece
     Wide field WF10X(field number:Φ22mm)
    Infinity plan achromatic objective
    XJL-302
    £¨Equipped with bright field objectives£©
    PL L5X/0.12  (Work distance)：26.1 mm
    PL L10X/0.25  (Work distance)：20.2 mm
    PL L20X/0.40  (Work distance)：8.80 mm
    PL L50X/0.70  (Work distance)：3.68 mm
    PL L80X/0.80  (Work distance)：1.25 mm

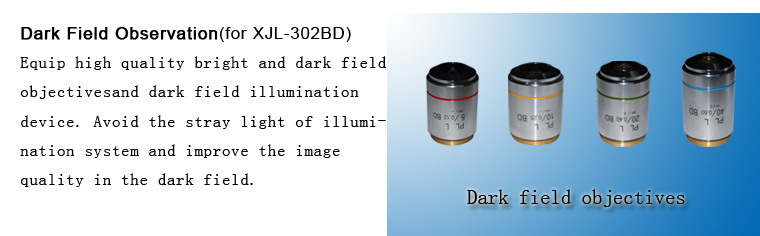

    XJL-302BD
    £¨Equipped with bright & dark field objectives£©
    PL L5X/0.12 BD  (Work distance)：8.05mm
    PL L10X/0.25 BD  (Work distance)：7.86mm
    PL L20X/0.40 BD  (Work distance)：7.23mm
    PL L50X/0.70 BD  (Work distance)：1.75mm
    PL L80X/0.80 BD (Work distance)：1.25 mm

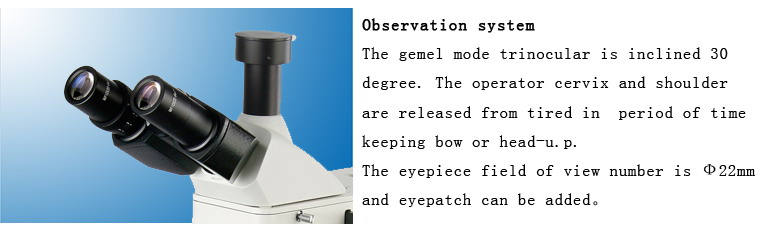

    Eyepieces tube
    Trinocular inclined 30˚, can be shot in 100% light flux.

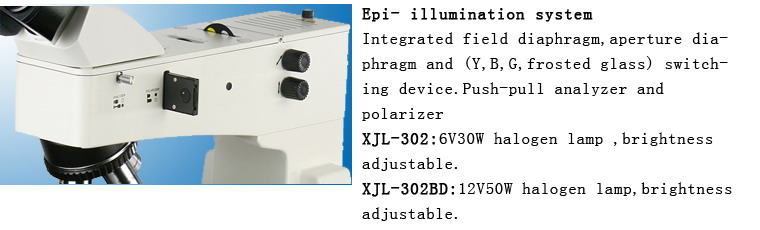

    Epi- illumination system
    XJL-302
    12V30W halogen and brightness enable control
    XJL-302BD
    12V50W halogen and brightness enable control
    Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 0.7μm.
    Nosepiece
    Quintuple (Backward ball bearing inner locating)

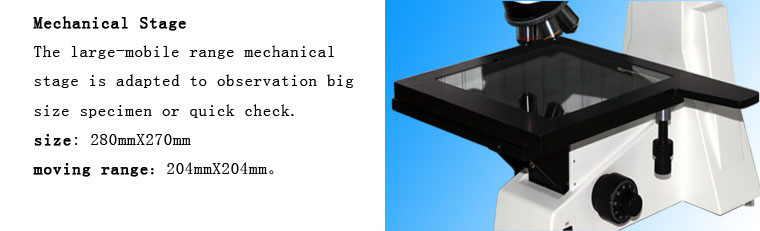

    Stage
    Mechanical stage£¬overall size：280mmX270mm£¬moving range: 204mmX204mm

























     Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Objective
    Dividing eyepiece(field number:Φ22mm)    0.10mm/Div

    Objective
    PL L40X/0.60 Work distance:3.98mm
    Equipped with bright field objectives

    PL L60X/0.70 Work distance:2.08mm

    PL L100X/0.85 Work distance:0.4mm

    PL L40X/0.60 BD Work distance:3.0mm
    Equipped with bright & dark field objectives

    PL L60X/0.70 BDWork distance:1.65mm

    PL L100X/0.85 BDWork distance:0.4mm

    Stage
    Mechanical stage, overall size： 250mmX230mm Move range:154mmX154mm

    CCD Adapter
    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera
    DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©

    DV-2 With USB output £¨1.3M/3.0M/5.0M/10.0M pixel£©

    DV-3 With video output£¨380/520 TV line£©

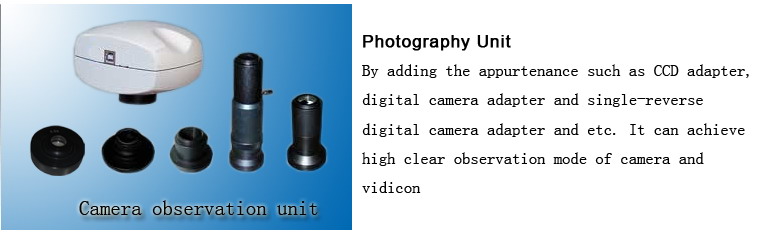

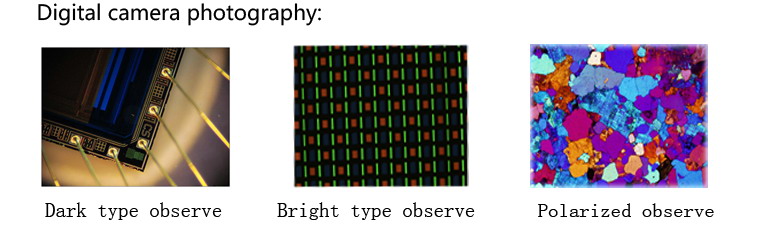

    Digital camera adapter
    CANON(A570,A610,A620,A630,A640,A650,EF)  NIKON( F)
