Product

  • Introduction

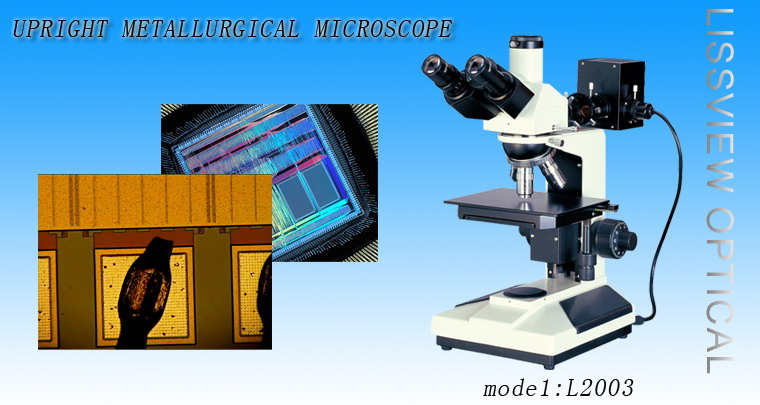

  • L2003series reflected metallurgical microscopes are suitable to observe the surfaces of non-transparent object. They are equipped with  vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in  trinocular. They provide clear and high-contrast picture, convenient operation and etc. They are the ideal instruments for research work in  metallography, mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in  the colleges and factory.

    Features
    ▲  With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  6V 20W Halogen lamp, adjustable control.
    ▲  Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the  top port.










  • Standard Configuration

    Model
    L2003A
    L2003B
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
    Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
    Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
    Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75  (Spring )
    Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60

    Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75(Spring )

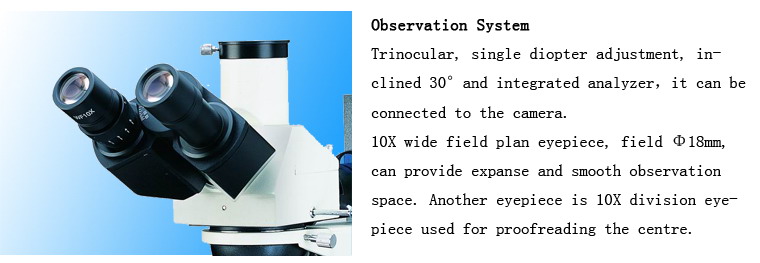

    Eyepieces tube
    Trinocular,Inclination of 30˚, (Analyzer with field diaphragm to switch)
    Vertical illumination unit
    12V 20W, Halogen lamp, adjustable control
    Vertical illumination With field diaphragm ,aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter
    Focus system
    Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple Backward ball bearing inner locating
    Quintuple Backward ball bearing inner locating

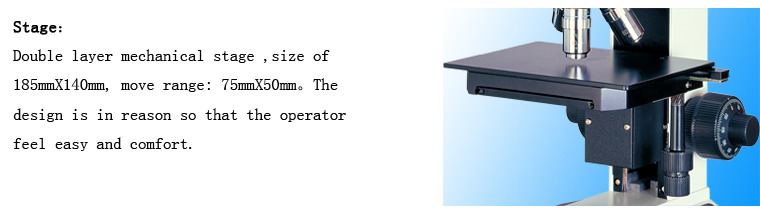

    Stage
    Double layer mechanical ( Size:185mmX140mm,movingrange:75mmX50mm)





















    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)
    1051016
    Dividing  10X(Φ18mm) 0.1mm/Div
    1121010
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70
    2250150
    Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80
    2250180
    Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring)
    2250111
    Plan achromatic objectives (no cover glass) PL 100X/1.25  (Spring, oil)
    2240111

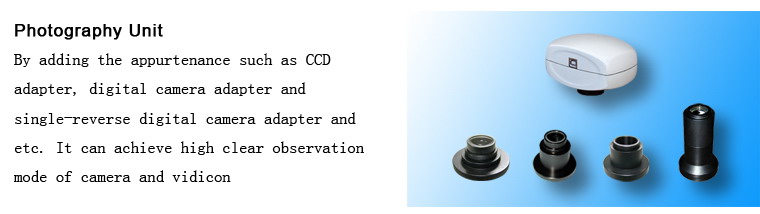

    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1 With USB & video output
    800001
    DV-2 With USB output
    800003
    DV-3 With video output
    800005
    Photo unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004
    Digital camera adapter
    CANON(A610,A620,A630,A640)
    820001


























  •



  •
