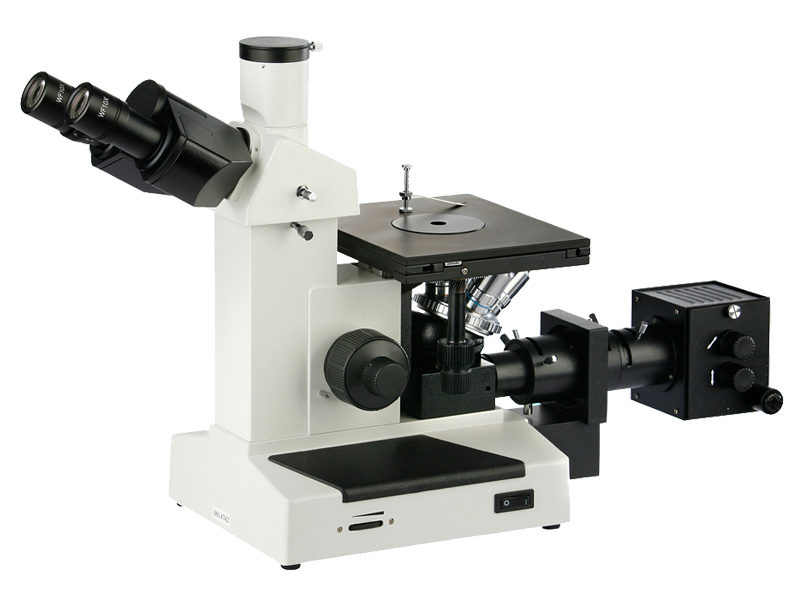

  • Introduction


  • XJL-17series metallurgical microscopes are used for identification and analysis of the structures in different metals and alloys. They are the important instruments for researching metallography in metal physics. The instruments can select special photography device to take euploid pictures of atlas metallograph. The instruments are suitable for scientific research、colleges and factory .

    Features
    ▲  With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
    ▲  Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  6V 20W halogen lamp, brightness control.
    ▲  Trinocular is compensation, can switch to observe normally or to observe the Polarize, can send 100% of light to top photography port.











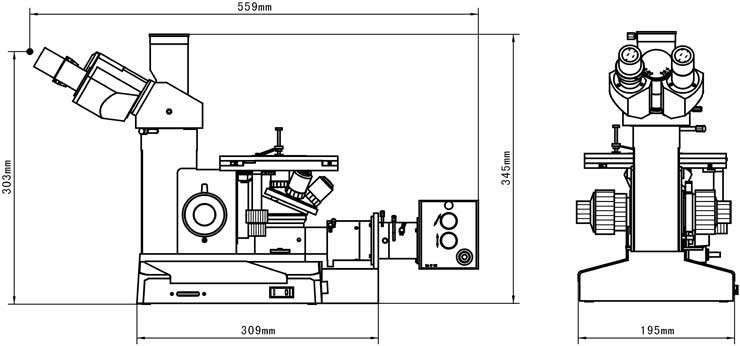

  • Standard Configuration

    Model

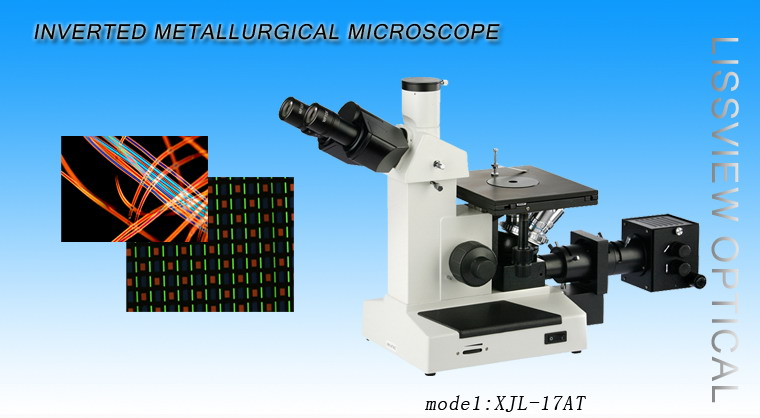

    XJL-17AT
    XJL-17BT
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 10X/0.25
    Achromatic objectives(no cover glass) 10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
    Achromatic objectives(no cover glass) 20X/0.40
    Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
    Achromatic objectives(no cover glass) SP 40X/0.65
    Plan achromatic objectives with long working distance (no cover glass) PL 100X/1.25(Spring, oil)
    Achromatic objectives(no cover glass) 100X/1.25(Spring, oil)

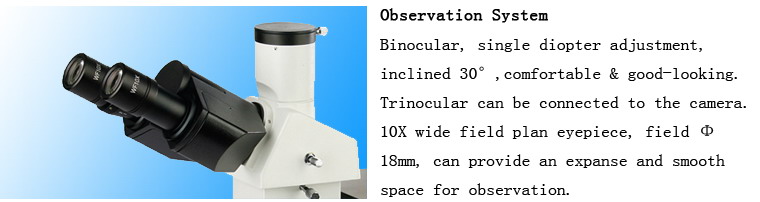

    Eyepieces tube
    Trinocular, Inclination of 30˚
    Filter
    Blue filter
    Green filter
    Yellow filter
    Focus system
    Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Ball bearing inner locating)

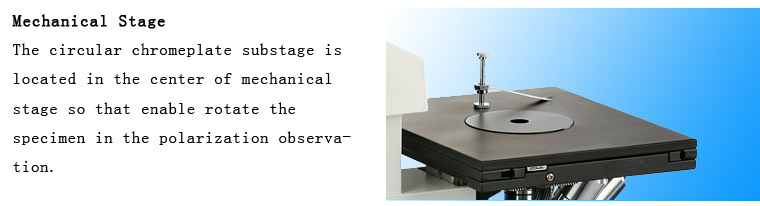

    Stage
    Double layer mechanical (Size:180mmX150mm,moving range:15mmX15mm)

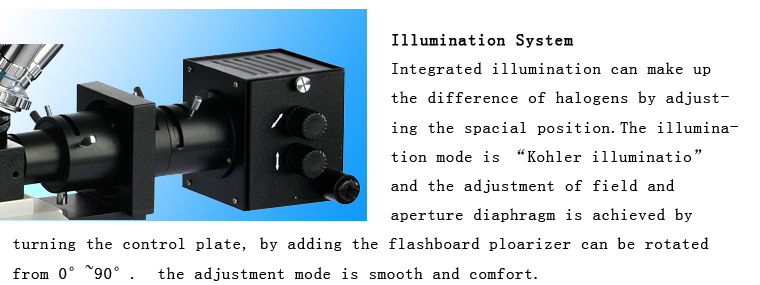

    Illumination unit
    6V 20W halogen lamp, brightness control.























          Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)

    Dividing  10X(Φ18mm) 0.1mm/Div

    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12

    Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75(Spring)

    Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring)

    Achromatic objectives(no cover glass) 60X/0.85

    Eyepieces tub
    Binocular, Inclination of 30˚

    Nosepiece
    Quintuple(Ball bearing inner locating)

    Simple polarizing unit
    Polariser

    Polarization analyzer

    CCD adapter
    0.4X

    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera
    DV-1 With USB & video output

    DV-2 With USB output

    DV-3 With video output

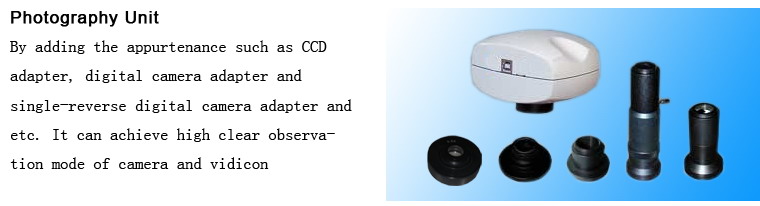

    Photo unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece

    4X Focusing photograph attachment

    MD Adapter

    PK Adapter

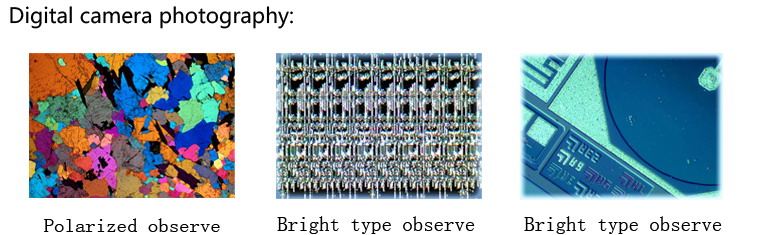

    Digital camera adapter
    CANON(A610,A620,A630,A640)






























  •



  •
