  • Introduction


  • XJL-101 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography,mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.
    Features

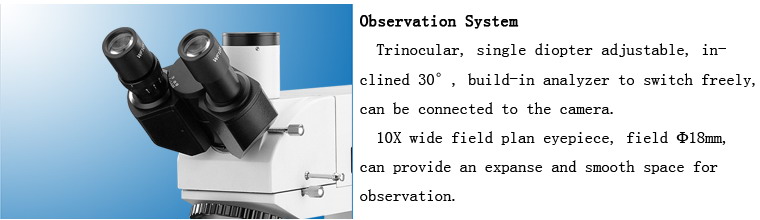

    ▲  With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.

    ▲  With large move range mechanical stages, can move quickly and slowly.

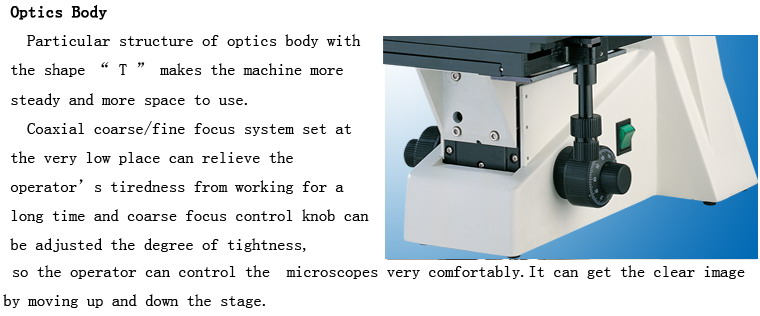

    ▲  Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 0.7μm.
    ▲  6V 30W halogen lamp, adjustable brightness.












  • Standard Configuration

    Model
    XJL-101
    XJL-101A
    Eyepiece
     Wide field  WF10X(Φ18mm)
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
    Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
    Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
    Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80
    Eyepieces tube
    Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
    Vertical illumination unit
    12V 30w halogen lamp, brightness control.
    Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter
    Focus system
    Stage adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.7μm.
    Nosepiece
    Quintuple(Frontward ball bearing inner locating)
    Stage

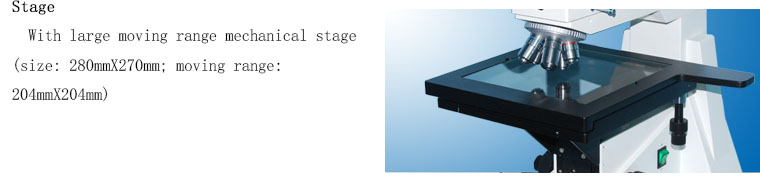

    Three layer mechanical
    Size:250mmX230mm,movingrange:154mmX154mm
    Three layer mechanical
    Size:280mmX270mm,movingrange:204mmX204mm

























    Optional accessories

    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)

    Dividing  10X(Φ18mm)  0.1mm/Div

    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70

    Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring)

    Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring)

    Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil)

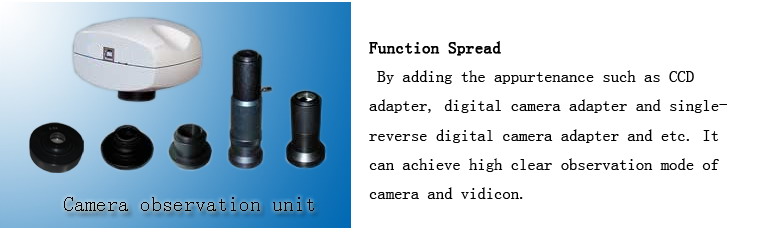

    CCD adapter
    0.4X

    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera
    DV-1 With USB & video output

    DV-2 With USB output

    DV-3 With video output

    Photo unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece

    4X Focusing photograph attachment

    MD Adapter

    PK Adapter

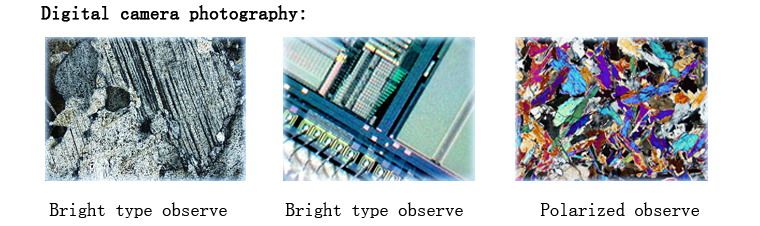

    Digital camera adapter
    CANON(A610,A620,A630,A640)




























  •



  •
