  • Introduction

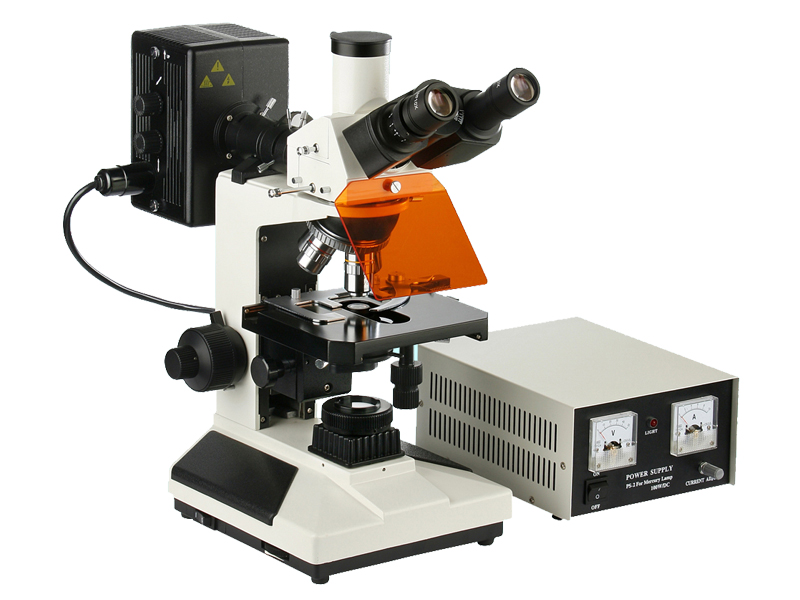

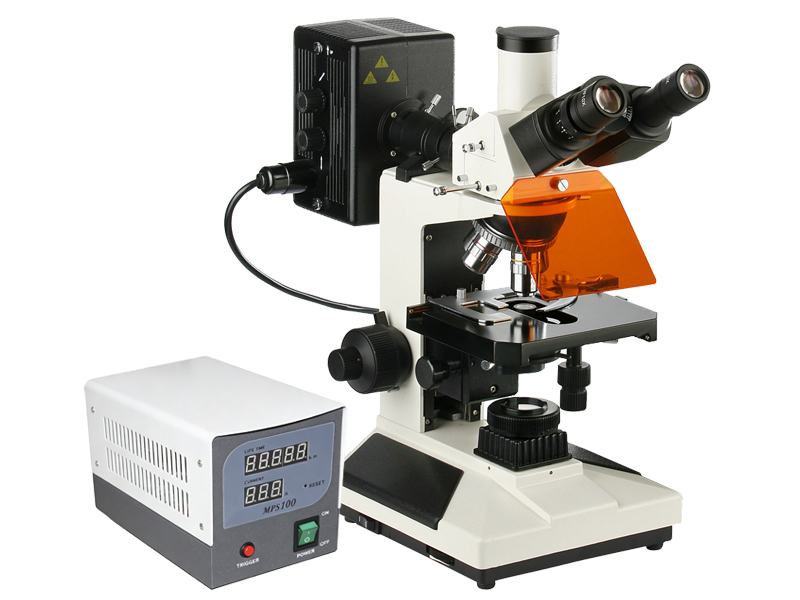

  • L2001 series reflected fluorescence microscopes are used for fluorescence microscopy and transmitted bright field observation. They are the ideal instruments in biology, cytology, oncology, geneticist, immunology etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

    Features
    ▲  With wide field eyepieces, plan achromatic objectives and fluorescence objectives, the field of view is widely and clear.
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  6V 20W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit

  • Standard Configuration

    Model
    L2001A
    L2001B
    Eyepiece
    Wide field WF10X(¦µ18mm)
    Objective
    Plan achromatic objectives PL 4X/0.10
    Plan achromatic objectives PL 4X/0.10
    Plan achromatic objectives PL 10X/0.25
    Plan achromatic objectives PL 10X/0.25

    Plan achromatic objectives PL 20X/0.40
    Plan achromatic objectives PL 40X/0.65(Spring)
    Plan achromatic objectives PL 40X/0.65(Spring)
    Plan achromatic objectives PL 100X/1.25(Spring, oil)
    Plan achromatic objectives PL 100X/1.25(Spring, oil)
    Fluorescence objectives FL 25X/0.65
    Fluorescence objectives FL 40X/1.00  (Spring, Glycerin)
    Eyepiece tube
    Trinocular (Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Quintuple (Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
    6V 20W Halogen lamp with brightness control
    Reflected fluorescence system
    Mercury lamp house 100W/DC
    Power supply unit:AV:110V or 220V
    Fluorescence filter system  B exciton wavelength:450~490nm
    Fluorescence filter system  G exciton wavelength:495~555nm


























     Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(¦µ11mm)
    1051016
    Dividing  10X(¦µ18mm),0.1mm/Div

    Objective
    Plan achromatic objectives PL 5X/0.12
    2040105
    Fluorescence objectives FL 100X/1.25 (Spring, Glycerin)
    2600111
    Filter
    Green filter
    115002
    Yellow filter
    115003
    Fluorescence power supply
    100W fluorescence power supply(Wide voltage range and constant power and calculagraph)
    100003
    Reflected fluorescence system
    Fluorescence filter system  UV exciton wavelength:320~380nm
    115103
    Fluorescence filter system  V exciton wavelength:380~415nm
    115104
    Phase contrast unit
    Eyepiece
    Centering telescope
    110001
    Objectives
    Phase contrast plan achromatic 10X/0.25 PHP
    2420110
    Phase contrast plan achromatic 20X/0.40 PHP
    2420120
    Phase contrast plan achromatic 40X/0.65 PHP(Spring)
    2420140
    Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
    2420111
    (PH-¢ñ) Turnplate phase contrast condenser
    052001
    (PH-¢ò) Turnplate phase contrast condenser
    052004
    Flashboard phase contrast condenser
    052002
    Pull board phase contrast condenser
    052003
    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1(With USB & video output)
    800001
    DV-2(With USB output)
    800003
    DV-3(With video output)
    800005
    Digital camera adapter
    CANON digital camera adapter(A610,A620,A630,A640)
    820001
    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004





































  •


  •
