Product

  • Introduction



  •

  • Standard Configuration

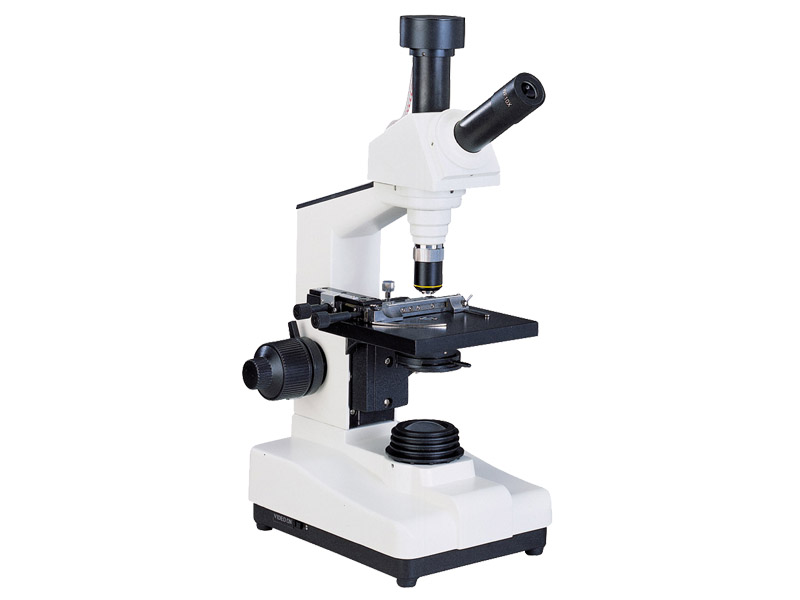

    Model
    MC-1080
    Eyepiece
    Wide field   WF10X (¦µ18mm)
    Objective
    Achromatic objectives 10X/0.25
    Video monocular
    Built-in clear color 1/3”CMOS sensor, horizontal resolution: 380TV lines, White Balance: Automatic, Color.
    Video cable
    Standard Video cable, length:1.8m
    Stage
    Fixed stage with slide moving holder moving range:70mmX30mm
    Focus mechanism
    Coaxial coarse/fine focus minimum division of fine focusing: 4μm
    Light source
    LED base without rechargeable batteries, input: 220V/110V (optional)

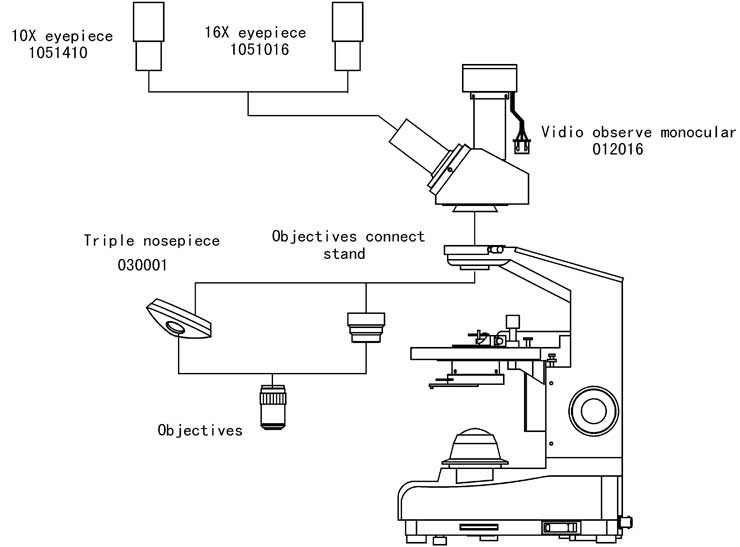

     Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field    WF16X (¦µ11mm)
    1051016
    Objective
    Achromatic objectives  4X/0.10
    2010204
    Achromatic objectives  20X/0.40
    2010120
    Achromatic objectives  40X/0.65
    2010140
    Nosepiece
    Triple (Frontward ball bearing outer locating)
    030001











  •
