Product

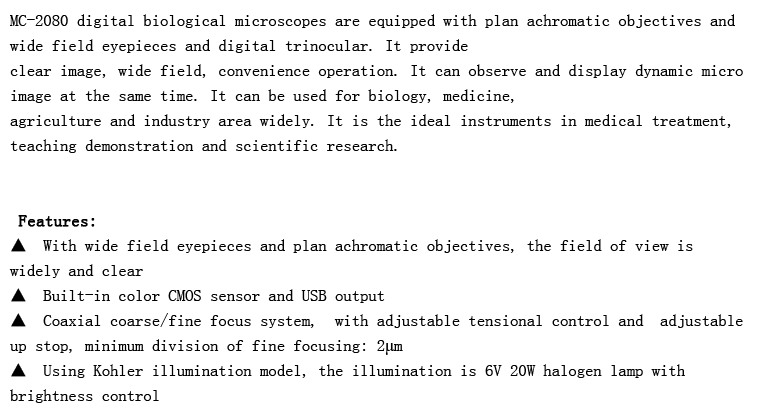

  • Introduction




  •

  • Standard configuration

    Model
    MC-2080
    Eyepiece
    WF10X(¦µ20mm)
    Objective
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 10X/0.25
    Plan achromatic PL 40X/0.65(Spring)
    Plan achromatic PL 100X/1.25(Spring, oil)
    Digital trinocular
    Built-in clear color 1/3” CMOS sensor , the dynamic resolution is 1280X1024(UXGA) , USB2.0 White balance: Automatic/Manual.
     System requirement：
    Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    Focus system
    Coaxial coarse/fine focus system, the adjustable tensional control and adjustable up stop, minimum division of fine focusing: 2μm
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical ( Size:160mmX140mm, Move range: 75mmX50mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    With field diagram for halogen lamp
    Light source
    6V 20W Halogen lamp with brightness control























    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field   WF16X(¦µ11mm)
    1051016
    Dividing  10X(¦µ20mm)  0.1mm/Div
    1121010
    Filter
    Green filter
    115002
    Yellow filter
    115003
    Digital trinocular
    Built-in clear color 1/2” CMOS sensor , the dynamic resolution is 2048X1536(UXGA).USB2.0
    White balance: Automatic/Manual.
    System requirement：
    Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    014006











  •
