  • Introduction

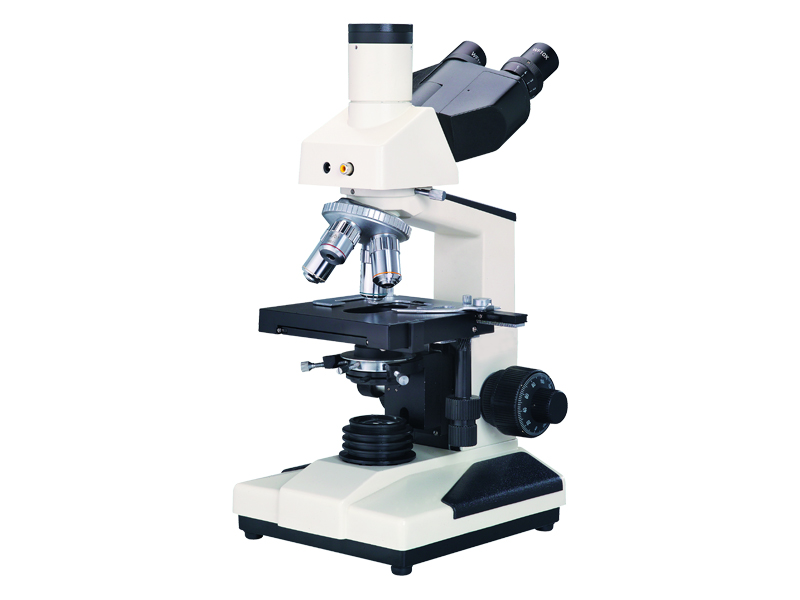

  • L1180 video biological microscopes are equipped with achromatic objectives, wide field eyepieces and video trinocular. It provide clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

    Features
    ▲  With wide field eyepieces and achromatic objectives, the field of view is widely and clear

    ▲  Built-in color CMOS or CCD sensor and video output

    ▲  Coaxial coarse/fine focus system, minimum division of fine focusing: 2μm

    ▲  6V 20W halogen lamp with brightness control

  • Standard configuration

    Model
    L1180
    Eyepiece
    WF10X(¦µ18mm)
    Objective
    Achromatic  4X/0.10
    Achromatic  10X/0.25
    Achromatic  40X/0.65(Spring)
    Achromatic  100X/1.25(Spring, oil)
    Video trinocular
    Built-in clear color 1/3”CMOS sensor, horizontal resolution:380TV lines
    White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional).
    Power supply adapter:9V DC
    Focus system
    Coaxial coarse/fine focus system, minimum division of fine focusing: 2μm
    Nosepiece
    Quadruple(Frontward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
    6V 20W Halogen lamp ,adjustable brightness
    Attachment
    Video cable, length:1.8M

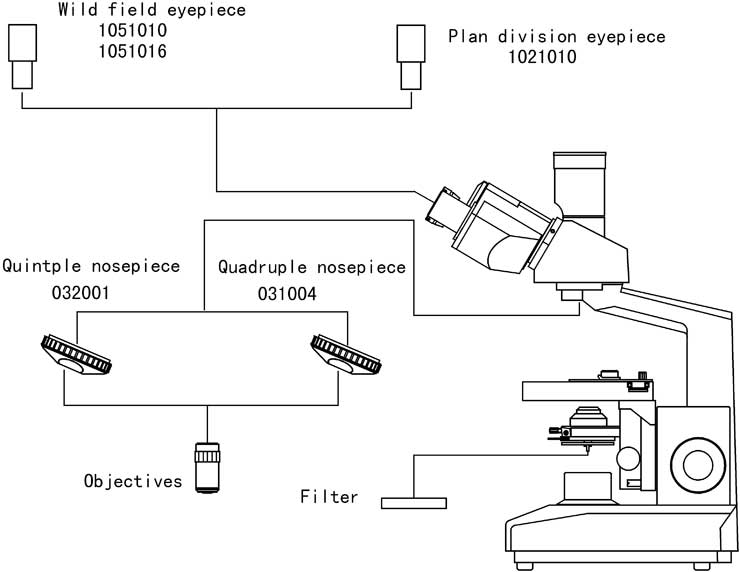

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(¦µ11mm)
    1051016
    Dividing   10X(¦µ18mm) 0.1mm/Div
    1021010
    Objective
    Semi-plan achromatic   SP 4X/0.10
    2030104
    Semi-plan achromatic   SP 10X/0.25
    2030110
    Semi-plan achromatic   SP 20X/0.40(Spring)
    2030120
    Semi-plan achromatic   SP 40X/0.65(Spring)
    2030140
    Semi-plan achromatic   SP 100X/1.25(Spring, oil)
    2030111
    Nosepiece
    Quintuple(Frontward ball bearing inner locating)
    032001
    Filter
    Green filter
    115002
    Yellow filter
    115003
