  • Introduction

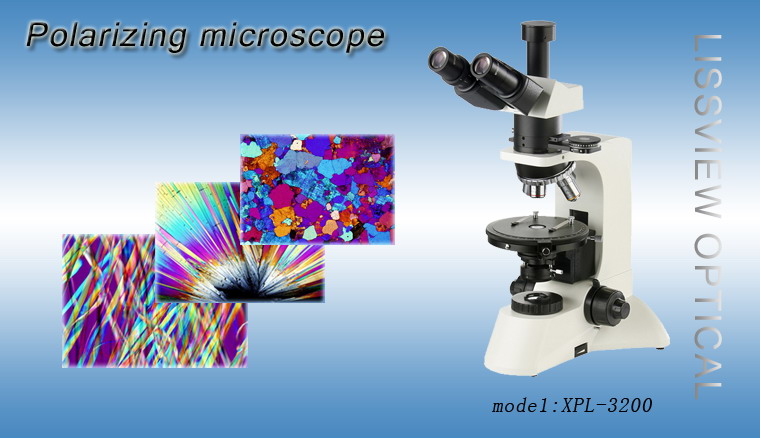

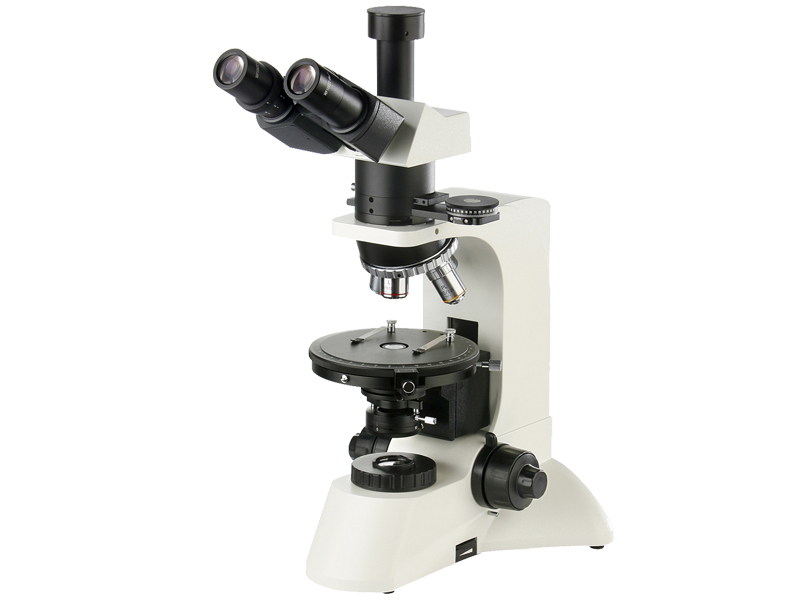

  • XPL-3200 polarizing microscope is utilized polarizing light to observe and research the matter which have double refraction features, enable to observe in single polarizing, orthogonal, conoscope. It can be applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is the ideal instrument for scientific research and universities teaching demo.

    Features
    ▲  Adopt infinity optical system.
    ▲  Infinity with strain-free plan achromatic objectives, the field of view is widely and clear.
    ▲  Wide-field plan eyepieces: field number Ф22mm.
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down the aperture diaphragm
    ▲  Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently
    ▲  Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener.
    ▲  Wide voltage range power supply (85-265V 50/60Hz), 12V30W halogen lamp, brightness adjustable.

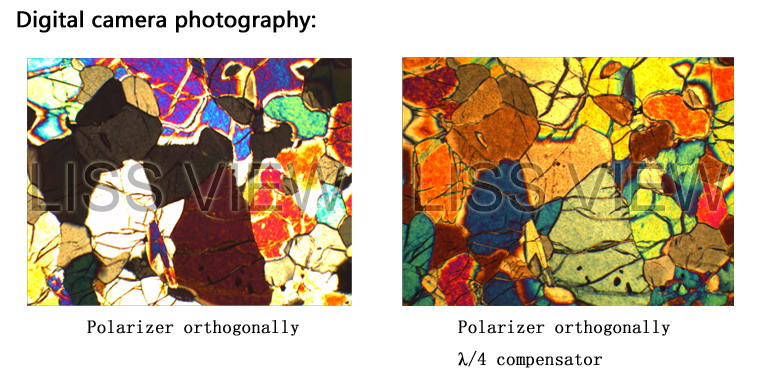

    ▲  Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.







  • Standard Configuration

    Model
    XPL-3200
    Eyepiece
    Wide field  WF10X(Φ22mm)
    Dividing eyepiece(field number:Φ22mm)    0.10mm/Div
    Objective
    Strain-free plan achromatic objective
    PL 4X/0.10  (Work distance)：19.8 mm
    PL10X/0.25 (Work distance)：5.0 mm
    PL 40X/0.65£¨spring£©(Work distance)：0.66 mm
    PL 60X/0.80£¨spring£©(Work distance)：0.45 mm

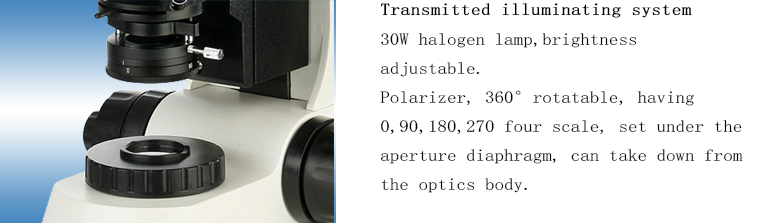

    Transmitted illuminating
    system
    12V30W halogen, brightness enable control
    Rotatable 360°, have 0,90,180,270 scale¡£
    Abbe condenser N.A. is 1.25 and add iris diaphragm

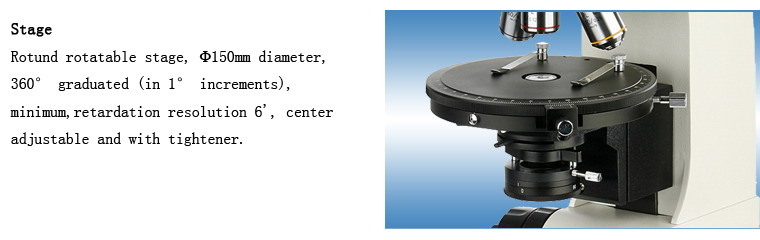

    tage
    Rotatable stage, diameter Φ150mm, 360° graduated (in 1° increments), minimum vernier division is 6' , center adjustable and with tightener.
    Nosepiece
    Quadruple (the center of nosepiece is adjustable )
    Intermediate attachment
    Integrated analyzer, can be switched to normal or polarizing observe freely , enable 0~90° rotated and minimum vernier division is 12'.
     Puller type bertrand lens and center adjustable.
    ¦Ë, ¦Ë/4 and quarts wedge compensator.
    Compensator
    ¦Ë, ¦Ë/4 and quarts wedge compensator.

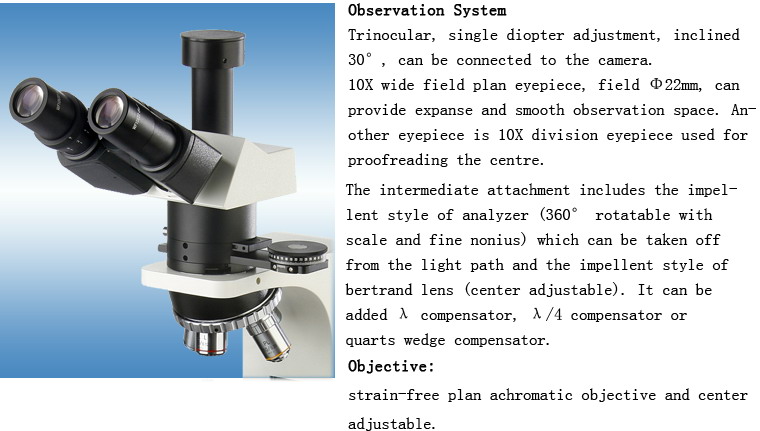

    Eyepiece tube
    Trinocular is inclined 30˚ and enable to shoot in 100% light flux.
    Focus system
    Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.

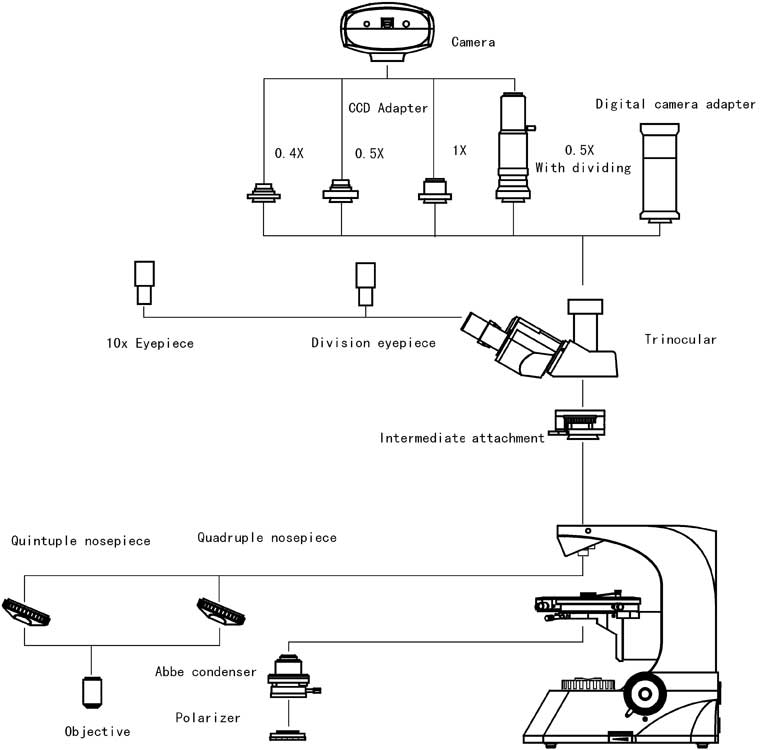

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Infinity objective
    Strain-free plan achromatic objective

    PL 20X/0.40 (Work distance)：8.8mm
    2820120
    PL 60X/0.80 (Work distance)：0.46mm
    2820140
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    032004
    Slide moving holder
    Moving range: 30mmX25mm
    116202

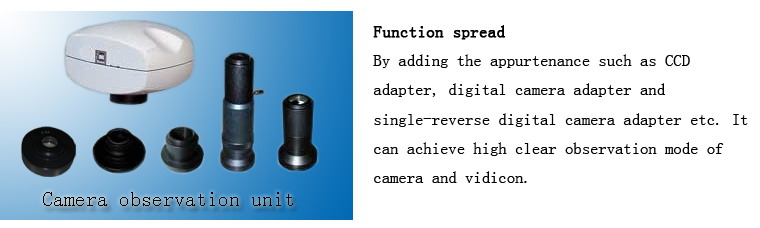

    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©
    800001
    DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£©
    800003
    DV-3 With video output£¨380/520 TV line£©
    800005
    Digital camera adapter
    CANON(A570,A610,A620,A630,A640,A650,EF)  NIKON( F)
    820001
