XPL-3230 GUANGZHOU LISS OPTICAL INSTRUMENT CO.,LTD

Product

Introduction
Category: Polarizing Microscope
Model: XPL-3230
Magnification: 50X--600X
Illumination: 12V30W halogen lamp, adjustable brightness
Product Price: Advisory Service

XPL-3230 transmitted & reflected polarizing microscope is utilized polarizing light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthogonal observation, conoscope observation. It is applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is the ideal instrument for scientific research and universities teaching demo.Features

Features
▲ Adopt infinity optical system and modularization function design.
▲  Infinity long W.D plan objectives, the field of view is widely and clear.
▲ Wide-field plan eyepieces: field number Ф22mm.
▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
▲  Polarizing unit can be move out or into optical path, polarizer and analyzer can be rotated from 0°to 360°.

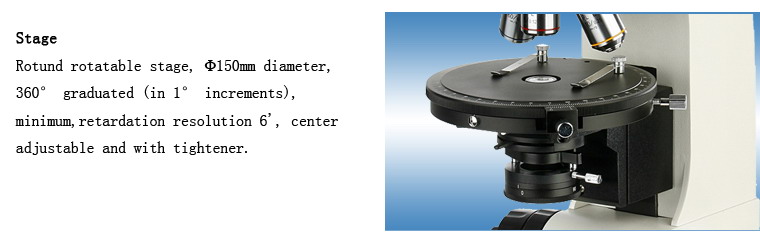

▲  Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener Stage vertical effective movement up to 30mm.
▲  Wide voltage range power supply (85-265V 50/60Hz), 6V30W halogen lamp, brightness adjustable.
▲  Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.

Standard Configuration

Model	XPL-3230
Eyepiece	Wide field WF10X(Φ22mm)
Eyepiece	Dividing eyepiece(field number:Φ22mm) 0.10mm/Div
Objective	Strain-free plan achromatic objective (no cover glass)
	PL L5X/0.12 (Work distance)：26.1 mm
	PL L10X/0.25 (Work distance)：20.2 mm
	PL L40X/0.60£¨spring£©(Work distance)：3.98 mm
	PL L60X/0.70£¨spring£©(Work distance)：2.03 mm

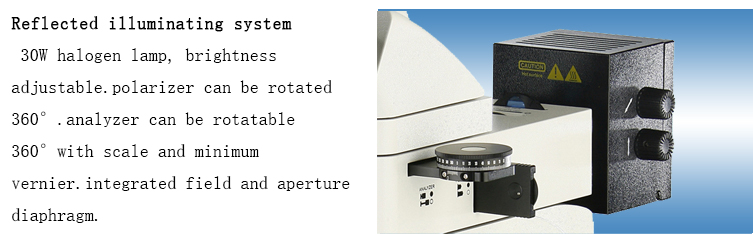

Reflected illuminating system	12V30W halogen, brightness enable control.

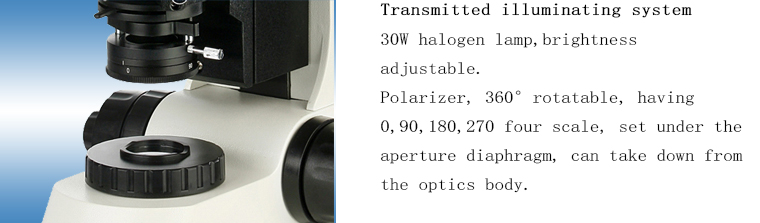

	Polarizer can be rotated 360°.
	Analyzer can be rotatable 360° with scale and minimum vernier
	Integrated field and aperture diaphragm.
Nosepiece	Quadruple (the center of nosepiece is adjustable )
Intermediate attachment	Puller type bertrand lens
Compensator	¦Ë, ¦Ë/4 and quarts wedge compensator.

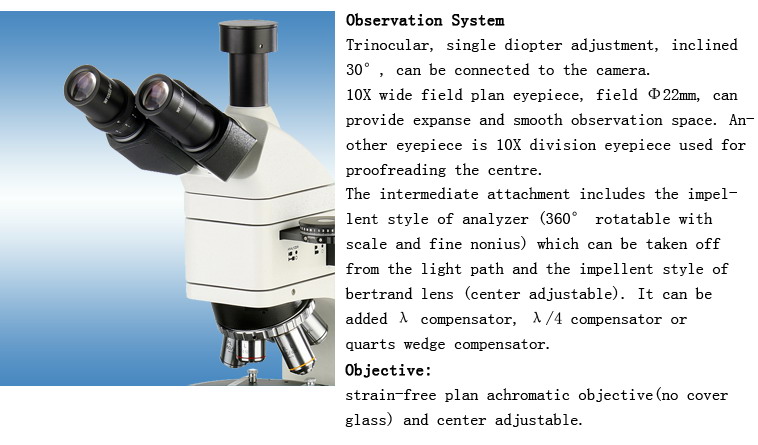

Eyepiece tube	Trinocular is inclined 30˚ and enable to shoot in 100% light flux.
Focus system	Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.

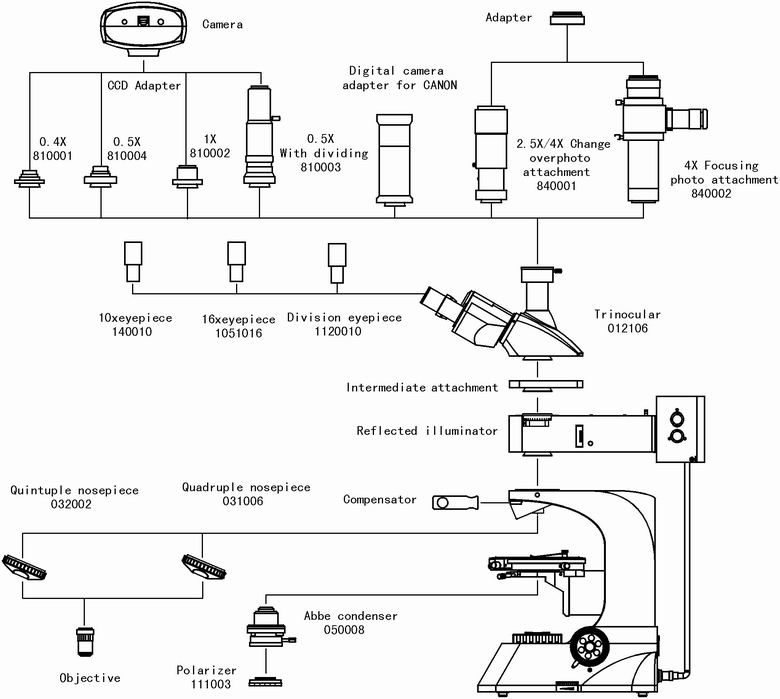

Optional accessories

Name	Sort/Technique parameter	NO.
Infinity objective	Strain-free plan achromatic objective (no cover glass)
	PL L 20X/0.40(Work distance)：8.80mm	2860120
	PL L50X/0.70£¨spring£©(Work distance)：3.68 mm	2860150
	PL L80X/0.80£¨spring£©(Work distance)：1.25 mm	2860180
	PL L100X//0.85(spring) (Work distance)：0.4 mm	2860111
Nosepiece	Quintuple(Backward ball bearing inner locating)	032004
Slide moving holder	Moving range: 30mmX25mm	116202

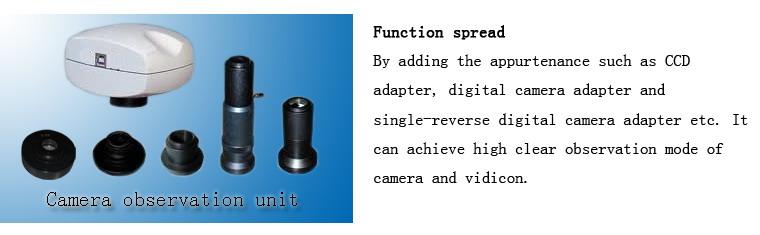

CCD adapter	0.4X	810001
	0.5X	810004
	1X	810002
	0.5X with dividing 0.1mm/Div	810003
Camera	DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©	800001
	DV-2 With USB output £¨1.3M,3.0M,5.0M ,10.0Mpixel£©	800003
	DV-3 With video output£¨380/520 TV line£©	800005
Digital camera adapter	CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F)	820001
