  • Introduction

  • JPL1350 series polarization microscopes are utilized polarize light to observe and research the polarize characteristic of the matter which have the double refraction .They can be used to medical inspection, such as the frame detail of the nerve fibre, the animal muscle, the plant fibre and the crystal of the tooth, bone, hair and alive cell etc. It can be observe the fine frame of the biochemistry salt crystal that the fine frame can't be observe for nature light.

    Features
    ▲  Equipped with wide field eyepieces and achromatic objectives, the field of view is widely and clear.
    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  6V 20W halogen lamp transmission illumination brightness control.



  • Standard Configuration

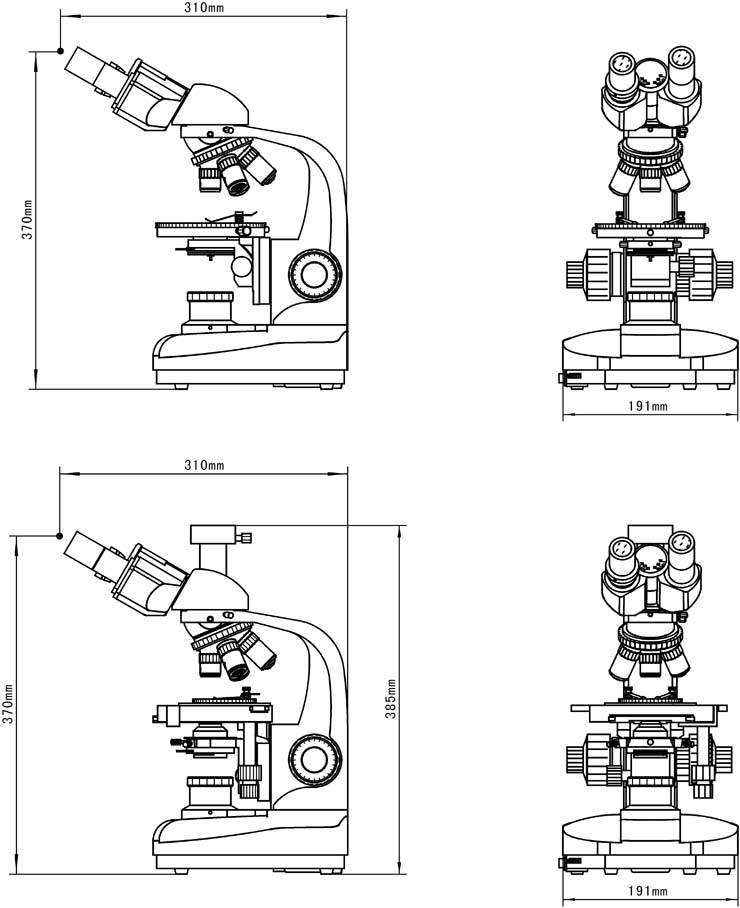

    Model
    JPL1350
    JPL1350A
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Achromatic objectives  4X/0.10
    Achromatic objectives  10X/0.25
    Achromatic objectives  40X/0.65 (Spring)
    Achromatic objectives  100X/1.25(Spring, oil)
    Eyepieces tube
    Binocular, Inclination of 30˚
    Polarization analyzer
    Sliding
    Focus system
    Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple (Backward ball bearing inner locating)
    Stage
    Rotatable stage(Diameter:¦µ120mm)
    Double layer mechanical stage with (¦µ100mm) rotatable stage (Size：135mmX125mm Moving range：75mmX35mm)
    Abbe condenser
    NA.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Polarizer
    360° rotatable stage
    Collector
    For illumination with halogen lamp With field diaphragm
    Illumination unit
    With polarizer,6V 20w, halogen lamp, adjustable brightness

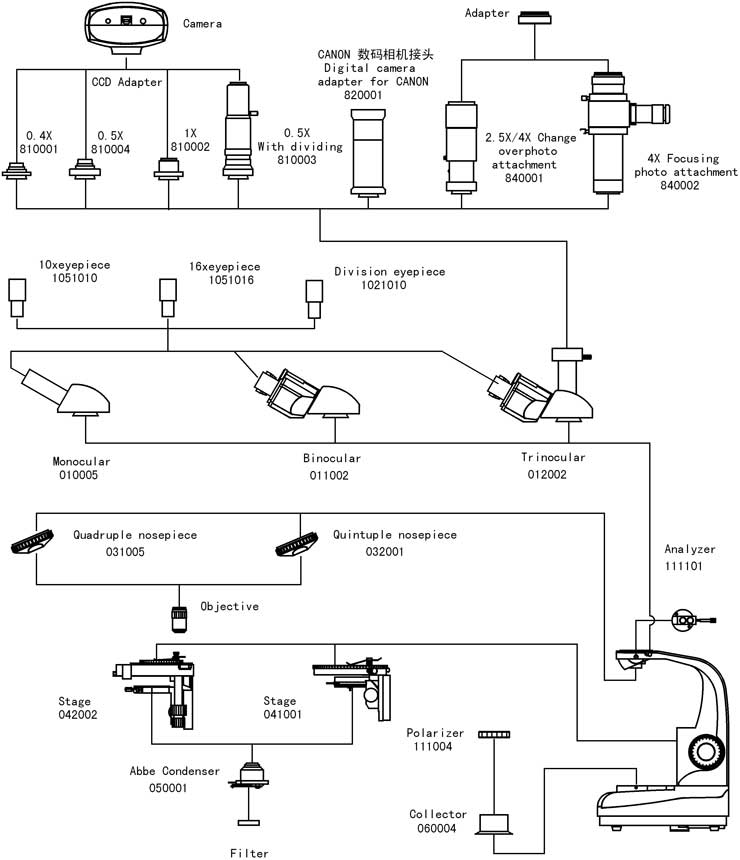

     Optional accessories
    Name
    Sort/Technique parameter
     NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)
    1051016
    Dividing  10X(Φ18mm) 0.1mm/Div
    1021010
    Eyepieces tube
    Monocular , 360˚rotatable, inclination of 30˚
    010005
    Trinocular, ,inclination of 30˚,observe and photograph at the same time
    012002
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    032001
    Filter
    Green filter
    115002
    Yellow filter
    115003
    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1 With USB & video output
    800001
    DV-2 With USB output
    800003
    DV-3 With video output
    800005
    Photo unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004
    Digital camera adapter
    CANON(A610,A620,A630,A640)
    820001



  •



  •
