Main parameters
|
Total magnification
|
100X~400X
|
|
Mechanical tube length
|
∝
|
|
Conjugate distance of objective
|
∝
|
|
Eyepiece
|
Wide-field plan eyepiece
|
WF 10X
|
field of view number Ф22mm
|
Eyepiece interface
Ф30mm
|
Parfocal distance
10mm
|
|

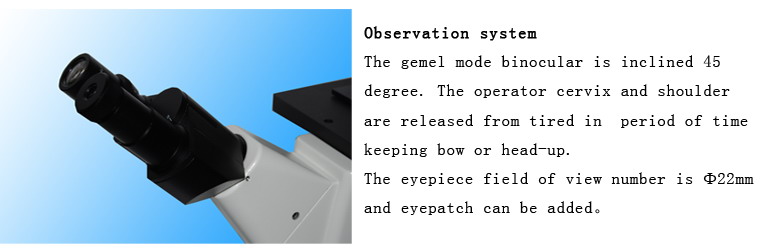

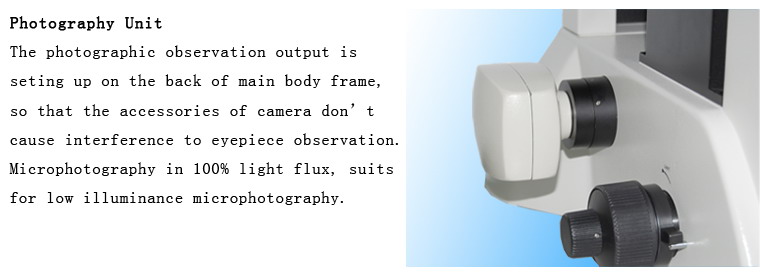

Trinocular
|
Hinged binocular tube, with an observation angle of 45°, and a pupil distance of 53-75mm
|
|

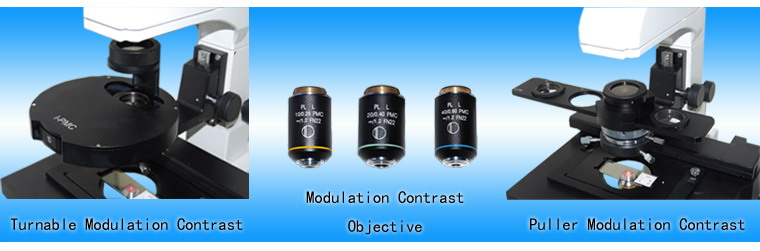

modulation contrast objective
|
Magnification
|
Numerical aperture
|
Working distance (mm)
|
Thickness of cover glass (mm)
|
Note
|
|
10X
|
0.25
|
4.3
|
1.2
|
For modulation contrast view, The modulator of objective should be adapted with slot in the condenser
|
|
20X
|
0.40
|
8.0
|
1.2
|
|
40X
|
0.60
|
3.5
|
1.2
|
|
Bright field objective
|
10X
|
0.25
|
4.3
|
1.2
|
For bright field view
|
|
20X（option）
|
0.40
|
8.0
|
1.2
|
|
40X（option）
|
0.60
|
3.5
|
1.2
|
|
Phase-contrast objective
|
10X（option）
|
0.25
|
4.3
|
1.2
|
For phase contrast view, the objective phase shutter should be adapted with the cirque shutter in theconnser
|
|
20X（option）
|
0.40
|
8.0
|
1.2
|
|
40X（option）
|
0.60
|
3.5
|
1.2
|
|
Nosepiece
|
Quintuple
|
|

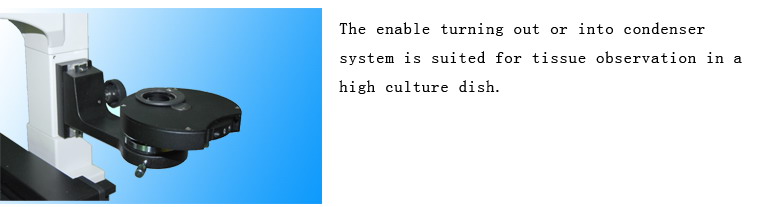

Condenser
|
Working distance 55mm, adapted for turntable type modulation contrast view
|
|
Working distance 55mm, adapted for puller type modulation contrast view（option）
|
|
Working distance 55mm, with phase-contrast device （option）
|
|
Working distance 55mm with aperture diaphragm，adapted for bright field view（option）
|
|

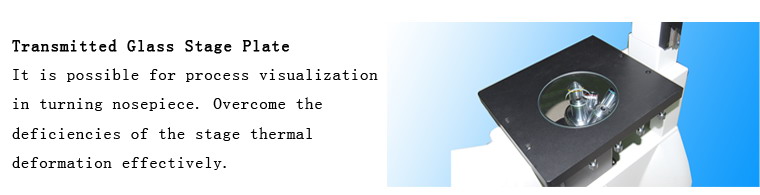

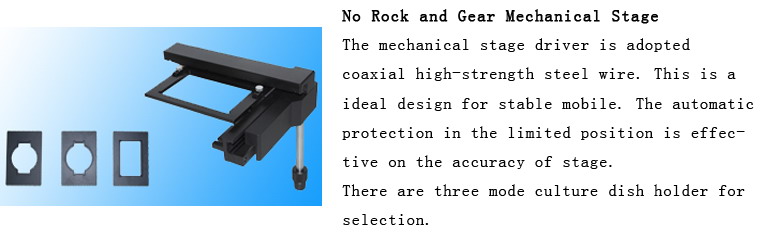

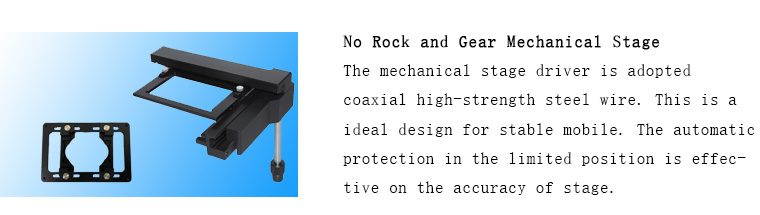

Stage
|
Mechanical Stage, moving range 77mm (longitudinal)X134.5mm (transverse), detachable stage moving device
|
|
Focus system
|
Coaxial carse/fine focus with tension adjustable and up stop ,minum division of fine focusing is 2 um
|
|
Culture dish holder
|
Holder 1
|
86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm
|
|
Holder 2
|
34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
|
|
Holder 3
|
57mm (W)X82mm (L)
|
|

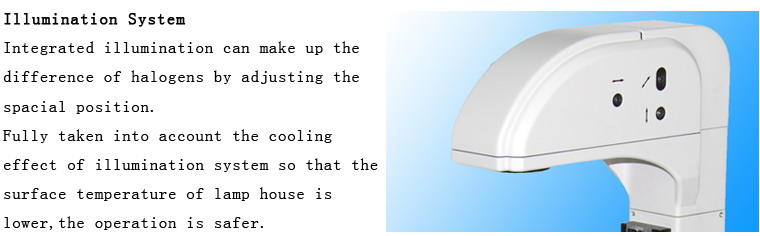

Light source
|
12V/30W halogen lamp, adjustable in brightness
|
