  • Introduction

  •          LISSCAM is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

    Hardware resolutions ranges from 1.3M to 10M and comes with the Integrated zinc aluminum alloy compact housing. LISSCAM comes with advanced video & image processing application LissView8; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The LISSCAM can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.

    The basic characteristic of LISSCAM cameras are as follows:

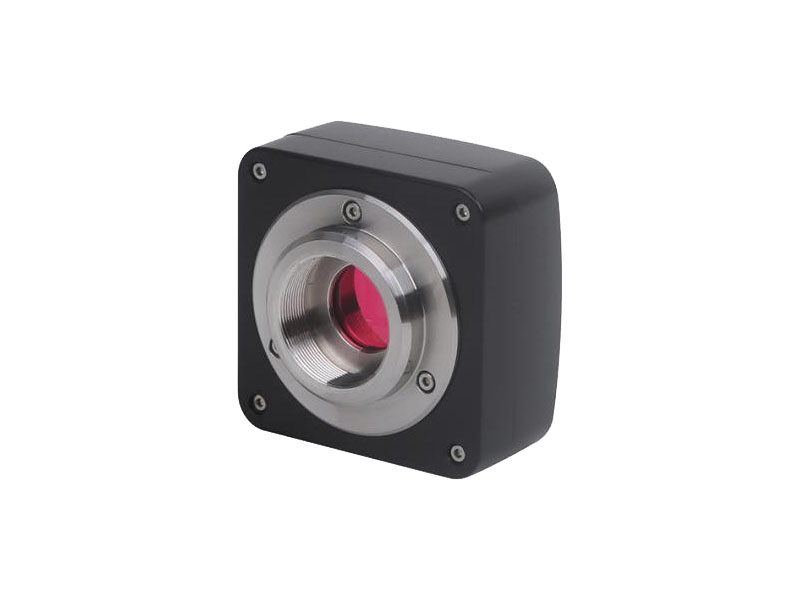

    l         Standard C-Mount with Aptina CMOS sensor;

    l         With hardware resolution among 1.3M to 10M;

    l         Integrated zinc aluminum alloy housing;

    l         USB2.0 interface ensuring high speed data transmission;

    l         Ultra-FineTM color engine with perfect color reproduction capability;

    l         With advanced video & image processing application LissView8;

    l         Providing Windows/Linux/Mac OS multiple platforms SDK;

  •

    Model

    Sensor & Size(mm)

    Pixel(μm)
    G Responsivity
    Dynamic range
    SNRmax

    FPS/Resolution

    Binning

    Exposure

    LISSCAM1000-1
    10M/MT9J003(C)
    1/2.3“ (6.44x4.616)
    1.67x1.67
    0.31v/lux-sec
    65.2dB
    34dB
    1.9@3584x2748
    8@1792x1374
    27@896x684
    1x1, 2x2, 4x4
    0.4ms~2000ms
    LISSCAM500-1
    5.1M/MT9P001(C)
    1/2.5“ (5.7x4.28)
    2.2x2.2
    0.53 V/lux-sec
    66.5dB
    40.5dB
    5@2592x1944
    18@1280x960
    60@640x480
    1x1, 2x2, 4x4
    0.294ms~2000ms
    LISSCAM300-1
    3.1M/MT9T001(C)
    1/2“ (6.55x4.92)
    3.2x3.2
    1.0 V/lux-sec
    61dB
    43dB
    8@2048x1536
    22@1024x768
    43@680x510
    1x1, 2x2, 3x3
    0.244ms~2000ms
    LISSCAM130-1
    1.3M/MT9M111(C)
    1/3“ (4.60x3.7)
    3.6x3.6
    1.0V/lux-sec
    71dB
    44dB
    15@1280x1024
    26@640x512
    50@320x256
    1x1, 2x2, 4x4
    0.14ms~2000ms

    Other Specification for LISSCAM Camera
    Spectral Range 380-650nm (with IR-cut Filter)
    White Balance ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
    Color Technique Ultra-FineTM Color Engine/NA for Monochromatic Sensor
    Capture/Control API Native C/C++, C#/VB.NET, DirectShow, Twain and Labview
    Recording System  Still Picture and Movie
    Cooling System* Natural
    Operating Environment
    Operating Temperature(in Centidegree) -10~ 50
    Storage Temperature(in Centidegree) -20~ 60
    Operating Humidity 30~80%RH
    Storage Humidity 10~60%RH
    Power Supply  USB Port
    Software Environment
    Operating System
    Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
    Memory:2GB or More
    USB Port:USB2.0 High-speed Port
    Display:17” or Larger
    CD-ROM

  •

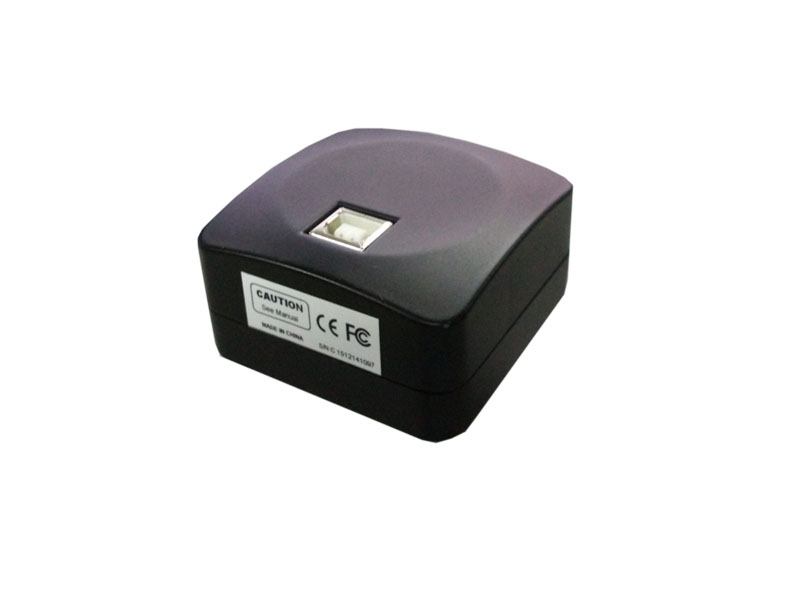

  •  The LISSCAM body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
