  • Introduction

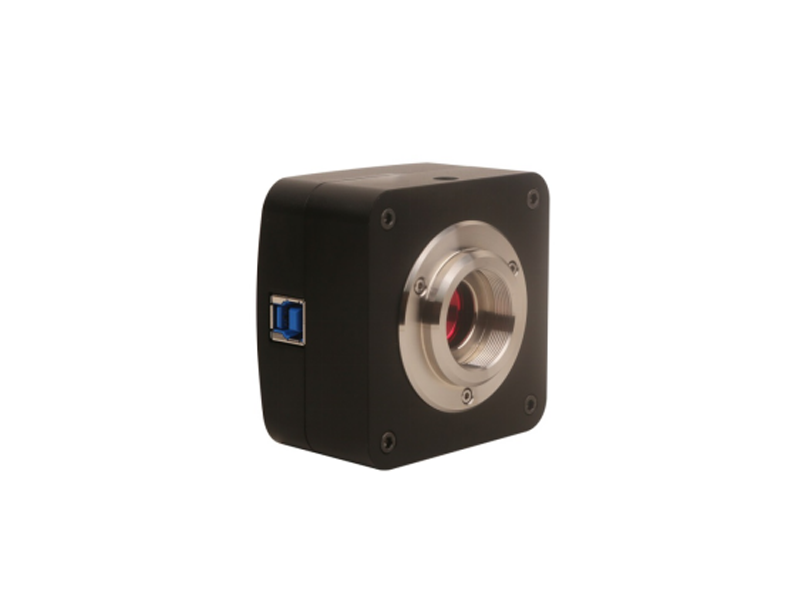

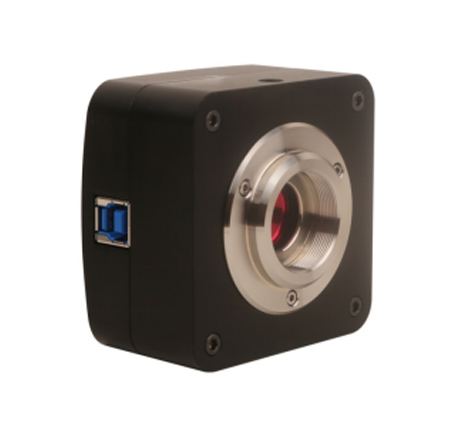

  •         Lisscam U3 adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.

    Lisscam U3 hardware resolutions range from 5M to 20M and come with the integrated CNC aluminum alloy compact housing.
    Lisscam U3 integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISP VP) for Demosaic, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISP VP and greatly accelerating the processing speed.
     Lisscam U3 comes with advanced video & image processing application LissView; Providing Windows/Linux/macOS/Android multiple platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
    The Lisscam U3 can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

    The basic characteristic of Lisscam U3 cameras are as follows:
    1. SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
    2. Real-time 8/12bit depth switch(depending on sensor);
    3. Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 17 frames for 21M Resolution);
    4. Super high sensitivity up to 1120mV(IMX264);
    5. Ultra low noise and low power dissipation by using column-parallel A/D conversion;
    6. With hardware resolution among 5M to 20M;
    7. Rolling Shutter or Global Shutter;
     8.Standard C-Mount camera;
    9. CNC aluminum alloy housing;
    10.With advanced video & image processing application ToupView;
    11. Providing Windows/Linux/Mac OS multiple platforms SDK;
    12.Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

  •

     Specification
    Spectral Range
    380-650nm (with IR-cut Filter)
    White Balance
    ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
    Color Technique
    Ultra-fineTM HISPVP /NA for Monochromatic Sensor
    Capture/Control SDK
    Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
    Recording System
    Still Picture and Movie
    Cooling System*
    Natural
    Operating Environment
    Operating Temperature(in Centidegree)
    -10~ 50
    Storage Temperature(in Centidegree)
    -20~ 60
    Operating Humidity
    30~80%RH
    Storage Humidity
    10~60%RH
    Power Supply
    DC 5V over PC USB3.0 Port. Compatible with USB2.0
    Software Environment
    Operating System
    Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    PC Requirements
    CPU: Equal to Intel Core2 2.8GHz or Higher
    Memory: 2GB or More
    USB Port: USB3.0 High-speed Port
    Display: 17” or Larger
    CD-ROM

    Order Code
    Sensor & Size(mm)
    Pixel(μm)
    G Sensitivity
    Dark Signal
    FPS/Resolution
    Binning
    Exposure
    LissCam
    2000U3
    20M/IMX183
    1 “(13.06x8.76)
    2.4 x2.4
    462mv with 1/30s
    0.21mv with 1/30s
    15@5440x3648
    50@2736x1824
    60@1824x1216
    1x1
    2x2
    3x3
    0.1ms~15s
    LissCam
    1200U3
    12M/IMX226(C)
    1/1.7“(7.40x5.55)
    1.85x1.85
    280mv with 1/30s
    0.1mv with 1/30s
    25@4000x3000
    50@2048x1080
    1x1
    2x2
    0.1ms~15s
    Lisscam
    500U3
    5.0M/IMX264(C, GS)
    2/3” (8.45x7.07)
    3.45x3.45
    1146mv with 1/30s
    0.15mv with 1/30s
    15@2448x2048
    51@1224x1024
    1x1
    0.1ms~60s

  •

  •
